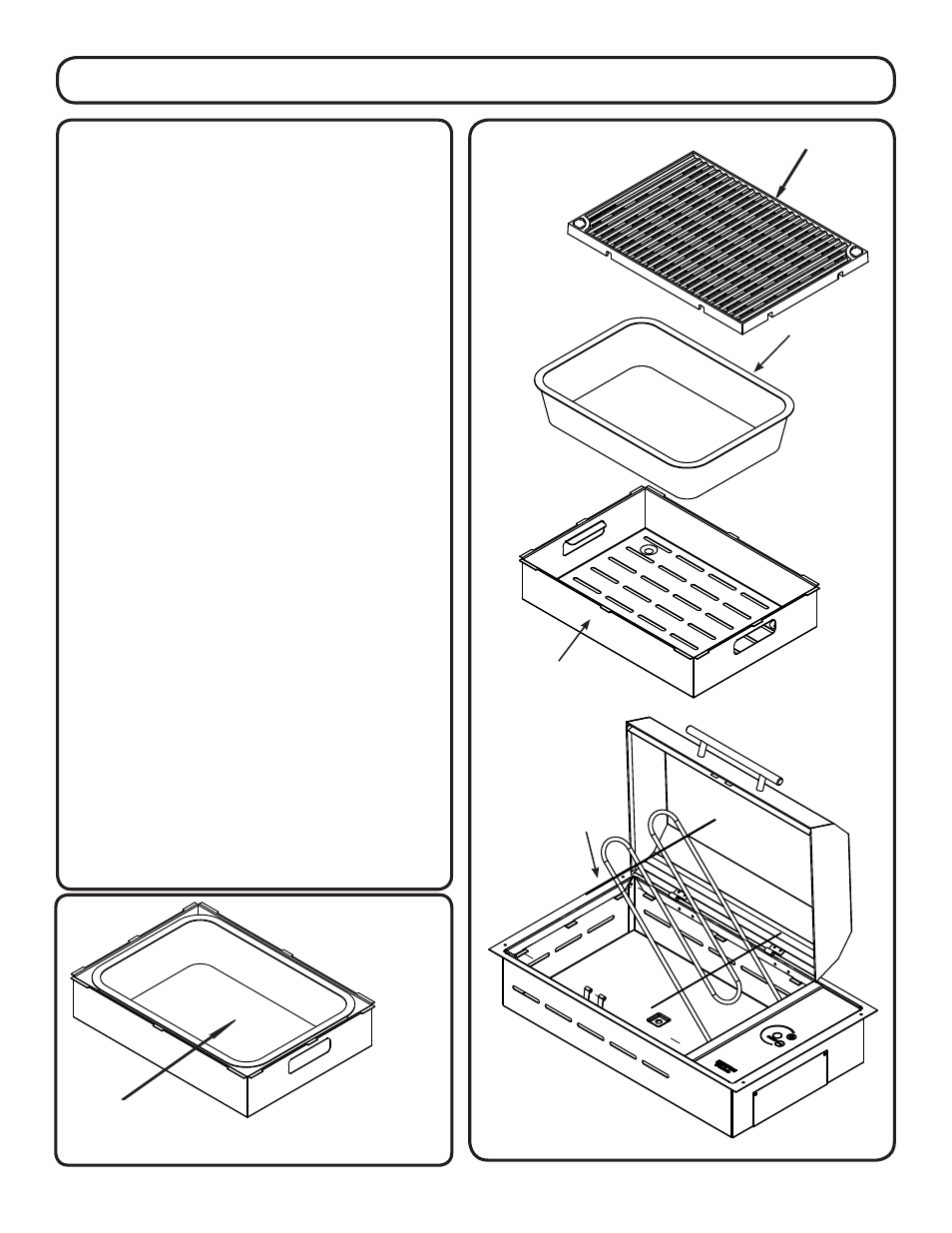

Grill Parts
GRATE
BAFFLE
TRAY
DRIP TRAY
HEATING
ELEMENT
HEATING ELEMENT
The heating element is designed to pivot as
shown to remove/replace the baffle tray and
drip tray. It will stay in the up position. To put
down apply slight downward pressure.
BAFFLE TRAY
The baffle tray supports the drip tray,
heating element and grate and must always
be used when operating the grill.
DRIP TRAY
The disposable drip tray collects all the fat
and juices created during the cooking
process. The drip tray must be emptied
after each use. When replacing the drip tray,
position the drip tray so that it is completely
contained inside the baffle tray and insuring
that the side or the rim of the drip tray does
not protrude outside of the baffle tray.
(see Fig. 6)
To prevent the contents of the drip tray
from smoking, place 2 cups of water (or
enough to cover the bottom of the pan)
in the drip tray before cooking.
The
replacement for the disposable drip tray is
Kenyon part #B96001.
GRATE
The grate must be cleaned after every use.
The grate has a nonstick coating for ease of
cleaning. Wash the grate after each use in
warm soapy water.
DRIP TRAY MUST BE CONTAINED
INSIDE OF BAFFLE TRAY AS SHOWN
Fig. 6
