WARNING! Always verify the system solidity in every configuration�
WARNING! Always verify the system solidity in every configuration and the pole payload�

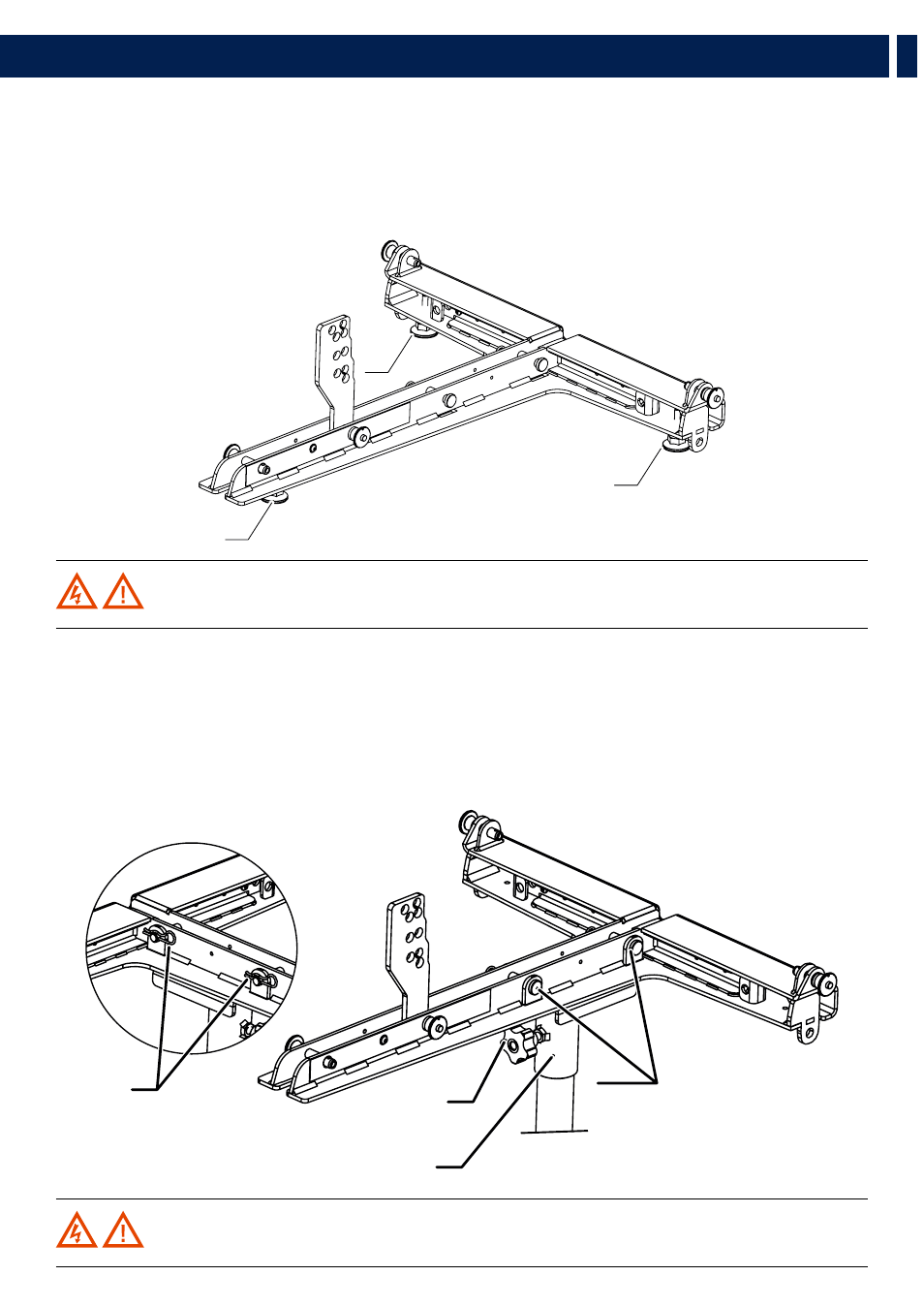

4�3�3 - GROUND STACKING
1� Screw all three plastic feet “P”�
2� Adjust the feet to stabilize the flybar on the subwoofer then block them with thieir nuts to avoid unscrewing�
3� Assemble the HL 6 speaker with the same procedure�
4�3�3 - POLE MOUNTING WITH SUSPENSION BAR
1� Secure the pole mount bracket to the flybar with the linchpins “X” then block them with the cotter pins “R”
2� Block the flybar to the pole by screwing the knob “M”�
3� Assemble the HL 6 speaker with the same procedure�
P
P
P
R
D
M
X
