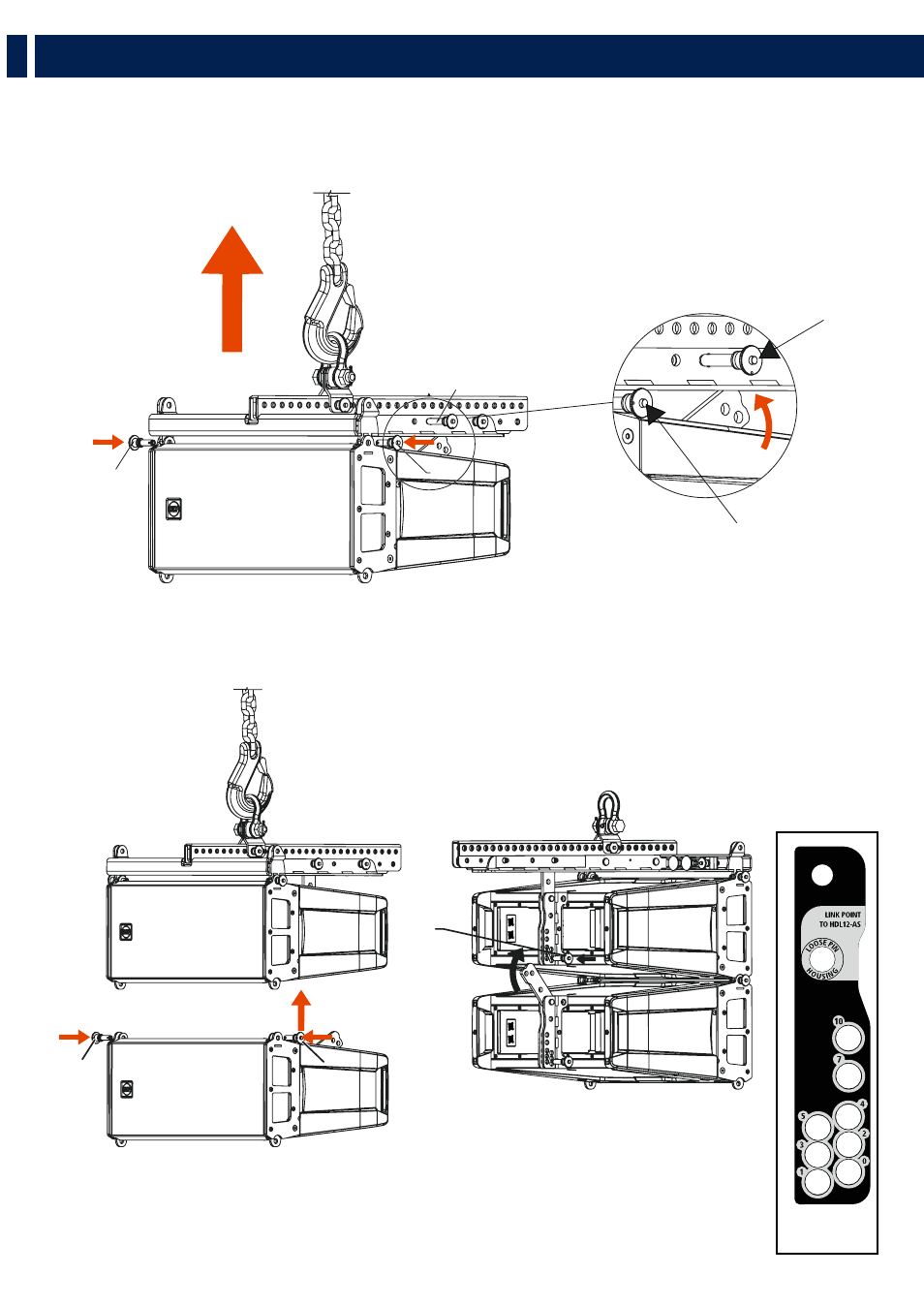

4�2�1 - SECURING THE FLYBAR TO THE FIRST HL 6 SPEAKER
1� Insert the frontal quick lock pins “F”
2� Rotate the rear bracket and secure it to the flybar with the rear quick lock pin “S” to the HL 6 Link Point hole
4�2�2 - SECURING THE SECOND HL 6 SPEAKER TO THE FIRST (AND CONSECUTIVE)
1� Secure the frontal quick lock pins “F”
2� Rotate the rear bracket and and secure it to the first speaker using the rear quick lock pin “P”, selecting the inclination angle as
shown on the software�
S
F F
F
S
5. INSTALLATION
F
HDL6-A REAR
BRACKET LABEL
F
P
