21
EN

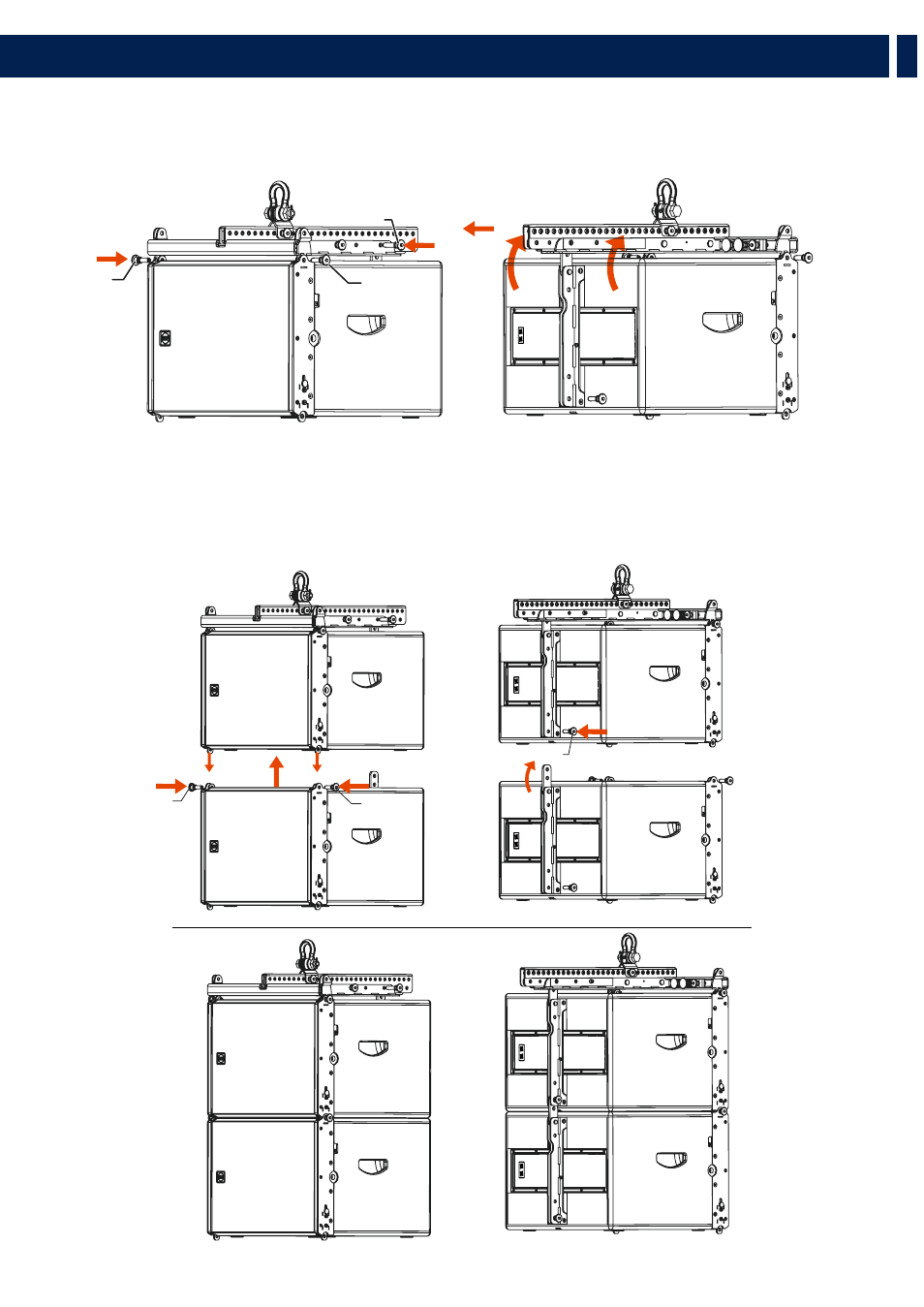

4�2�3 - SECURING THE FLYBAR TO THE FIRST HL 35-S SPEAKER
1� Insert the frontal quick lock pins “F”
2� Rotate the rear bracket and secure it to the flybar with the rear quick lock pin “S” on the HL 35-S Link Point hole�
4�2�4 - SECURING THE SECOND HL 35-S SPEAKER TO THE FIRST (AND CONSECUTIVE)
1� Pull out the frontal bracket “A”
2� Secure the frontal quick lock pins “F”
3� Rotate the rear bracket and secure it to the first speaker using the rear quick lock pin “P”�
5. INSTALLATION
F
F
S
F
F
P
