24
EN

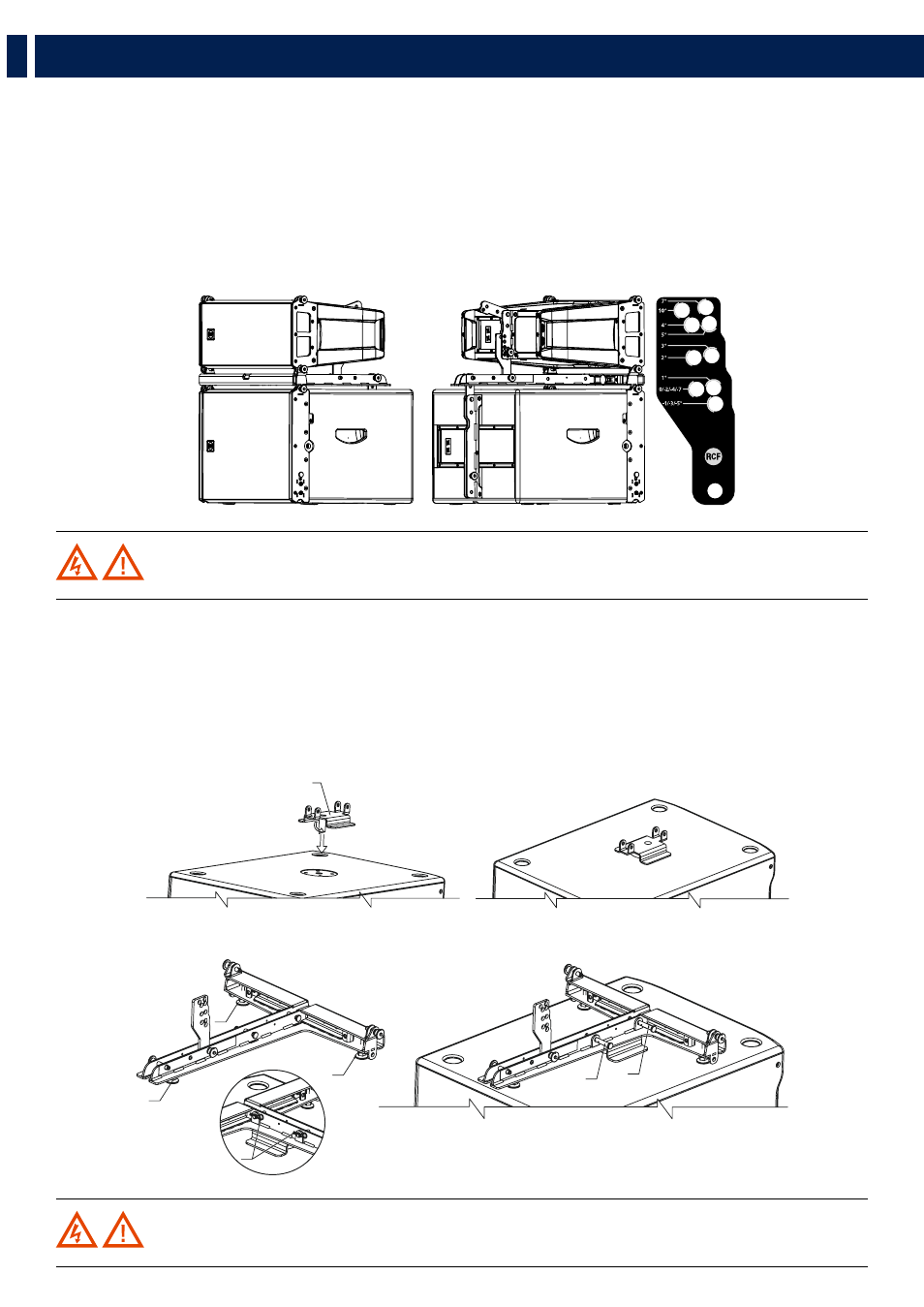

2� Select the inclination angle (positive angles indicate a lower inclination of the speaker) and secure it with the rear quick lock pin “P”�
To obtain the speaker inclination (positive or negative) you need to match the stacking bar angle value with the same angle value
stated on the speaker rear bracket�
This method works for every inclination except for angles 10 and 7 of the stacking bar, for which you need to proceed in the
following way:
- angle 10 of the stacking bar needs to be matched with angle 0 on the speaker rear bracket�
- angle 7 of the stacking bar needs to be matched with angle 5 on the speaker rear bracket�
WARNING! Always verify the system solidity in every configuration�
4�3�2 - STACKING ON DIFFERENT SUBWOOFERS (OTHER THAN HL 35-S)
1� Screw all three plastic feet “P”�
2� Secure the flybar to the safety bracket using the linchpins “X” and block them with the cotter pins “R”�
3� Adjust the feet to stabilize the flybar on the subwoofer then block them with thieir nuts to avoid unscrewing�
4� Assemble the HL 6 speaker with the same procedure�
WARNING! Always verify the system solidity in every configuration�
C
P
P
P
R
X
X
5. INSTALLATION
