18
EN
To set it in “B” configuration:
1� Remove the cotter pins “R”, pull out the linchpins “X” and
the quick lock pins “S”
2� Lift the central bar then re-position it making the “B”
indication on the label and the holes “S” match together�
3� Re-assemble the flybar repositioning the pins “S”, the
linchpins “X” and the cotter pins “R”�

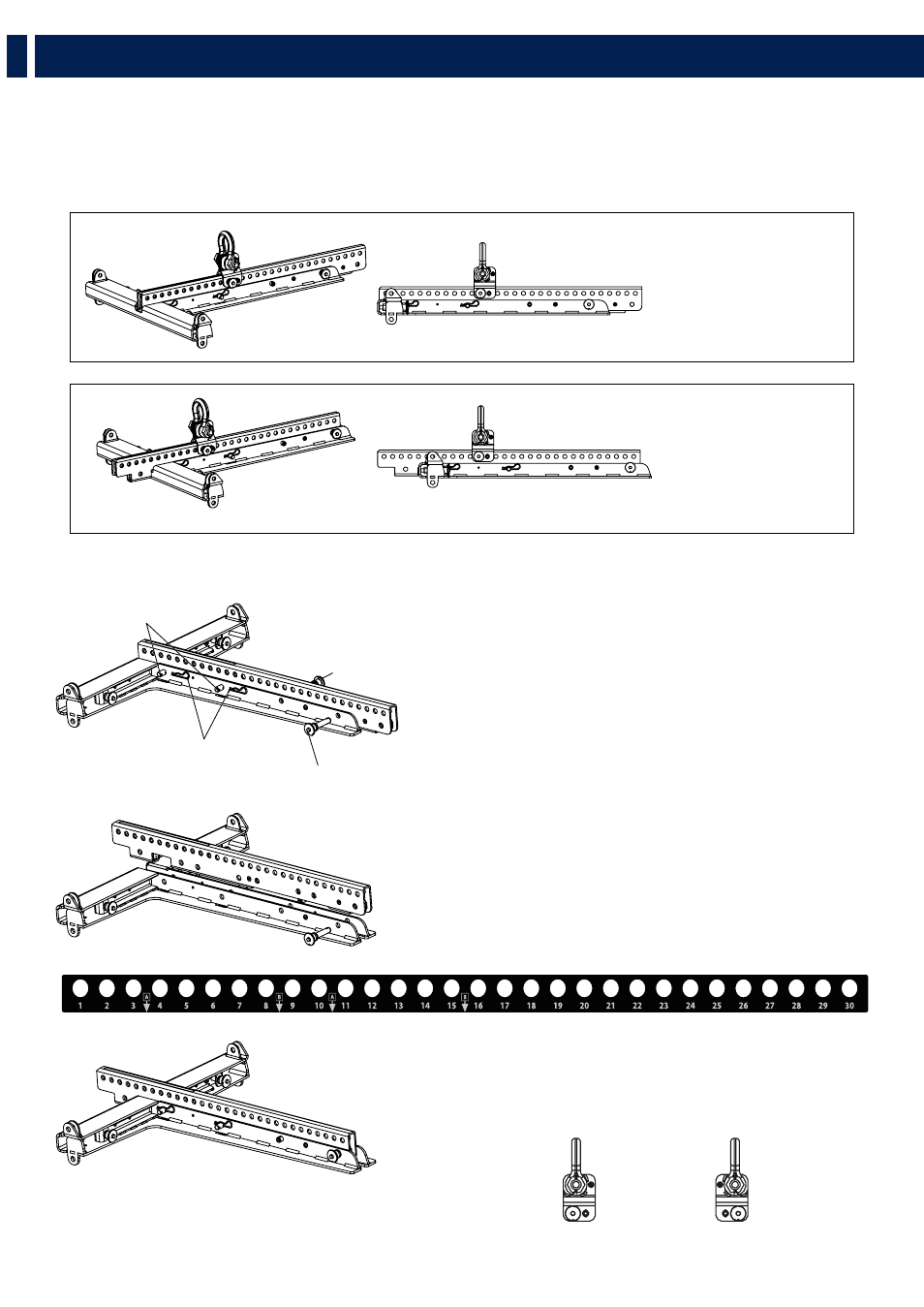

HOW TO SET THE CENTRAL BAR IN “B” CONFIGURATION
CENTRAL BRACKET LABEL
FLYBAR
WITH CENTRAL BAR
IN “A” POSITION
FLYBAR
WITH CENTRAL BAR
IN “B” POSITION
4�1 - FLYBAR SETUP
The HL 6 flybar allows to set the central bar in two different configurations “A” e “B”�
This accessory is provided in “A” configuration� “B” configuration allows a better upper inclination of the cluster�
PICK UP POINT
“A” POSITION
PICK UP POINT
“B” POSITION
X
S
R
S
5. INSTALLATION
