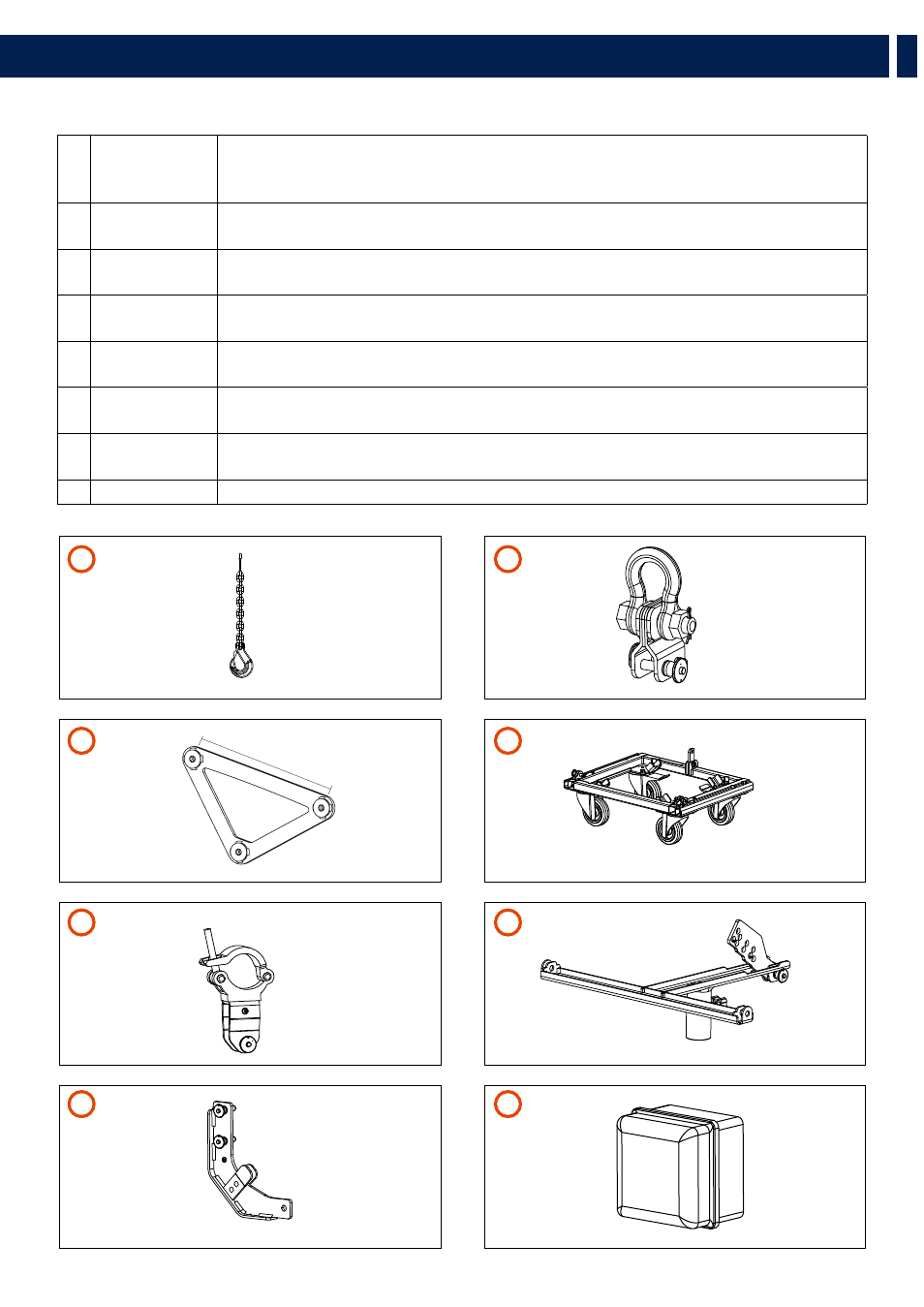

ACCESSORIES
1 13360129 HOIST SPACING CHAIN� It allows enough space for the hang of most 2 motor chain containers and
avoids any impact on the vertical balance of the array when it is suspended from a single pick-up
point�
2 13360372 FLY BAR PICK UP HDL6-A
+ 2 QUICK LOCK PIN (SPARE PART P/N 13360022)
3 13360351 AC 2X AZIMUT PLATE� It allows the horizontal aim control of the cluster� The system must be hooked
with 3 motors� 1 frontal and 2 attached to the azimuth plate�
4 13360366 KART WITH WHEELS AC KART HDL6
+ 2 QUICK LOCK PIN (SPARE PART 13360219)
5 13360371 AC TRUSS CLAMP HDL6
+ 1 QUICK LOCK PIN (SPARE PART P/N 13360022)
6 13360377 POLE MOUNT 3X HDL 6-A
+ 1 QUICK LOCK PIN (SPARE PART 13360219)
7 13360375 LINKBAR HDL12 TO HDL6
+ 2 QUICK LOCK PIN (SPARE PART 13360219)
8 13360381 RAIN COVER 06-01
500 mm
