powermax1000
Manuale di manutenzione 4-3

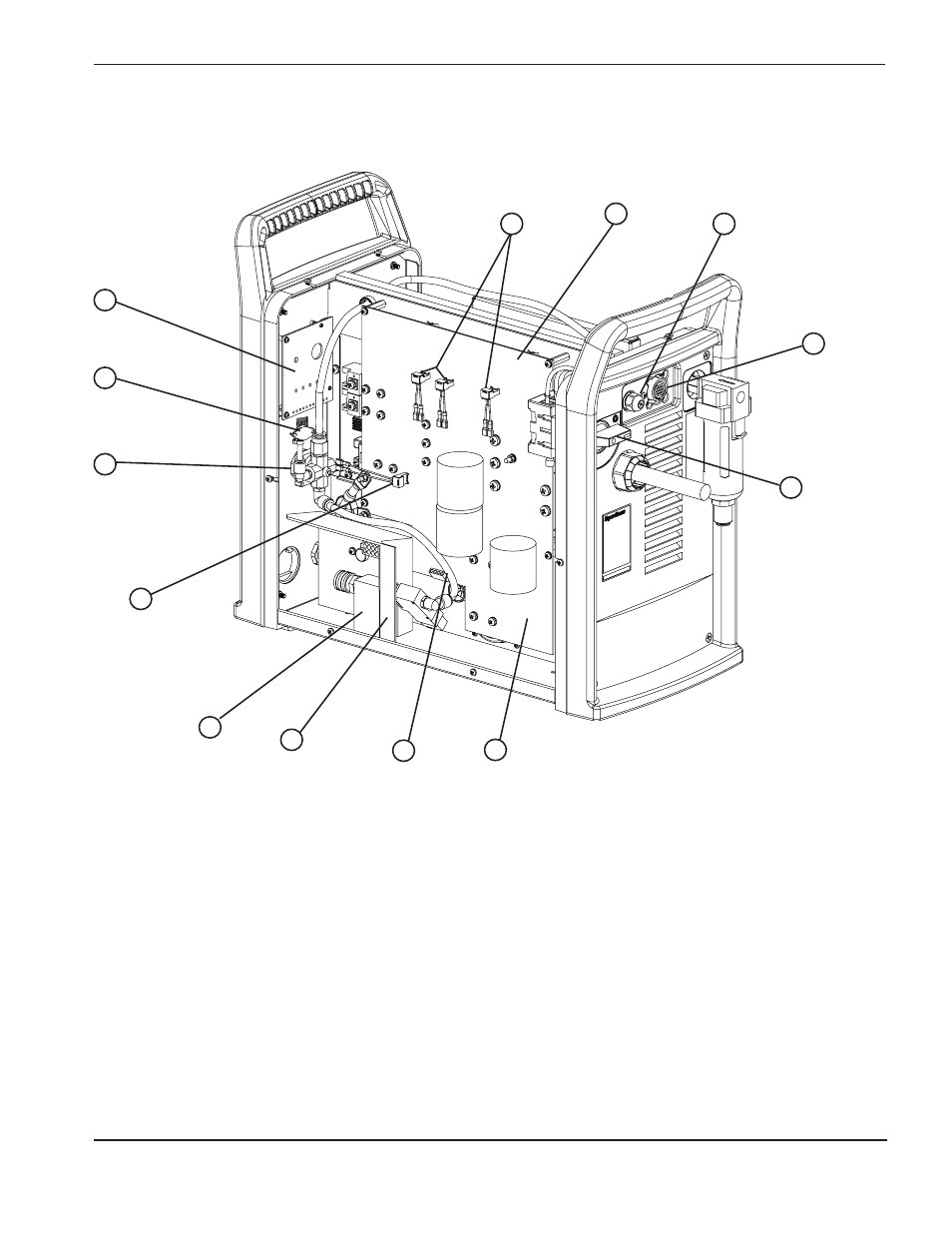

LISTA DEI COMPONENTI – GENERATORE
Parte interna destra
Componente Codice Descrizione Riferimento Quantità
1 128701 Kit: Control board, domestic PCB3 1
128702 Kit: Control board, CE PCB3 1
2 128659 Kit: Pressure sensor 1
3 128801 Kit: Pressure regulator 1
4 123604 Pilot arc IGBT cable 1
5 128622 Kit: Gas manifold with solenoid valve V1 1
6 128628 Kit: ETR Box 1
7 046116 Tubing, 8mm OD, 6mm ID, nylon 3 ft.
8 128963 Kit: RCD resistor replacement (S/N < 1000-013717) 1
9 108211 On/Off Knob 1
10 128662 Kit: Machine interface 1
11 128665 Kit: Strain relief, arc voltage 1
12 128695 Kit: Power board PCB2 1
13 123602 Gate drive cables 3
1
8 7
10
9
12
11 13
6
5
2
3
4
