Specifiche tecniche
Piedinature dei connettori
Manuale utente 169

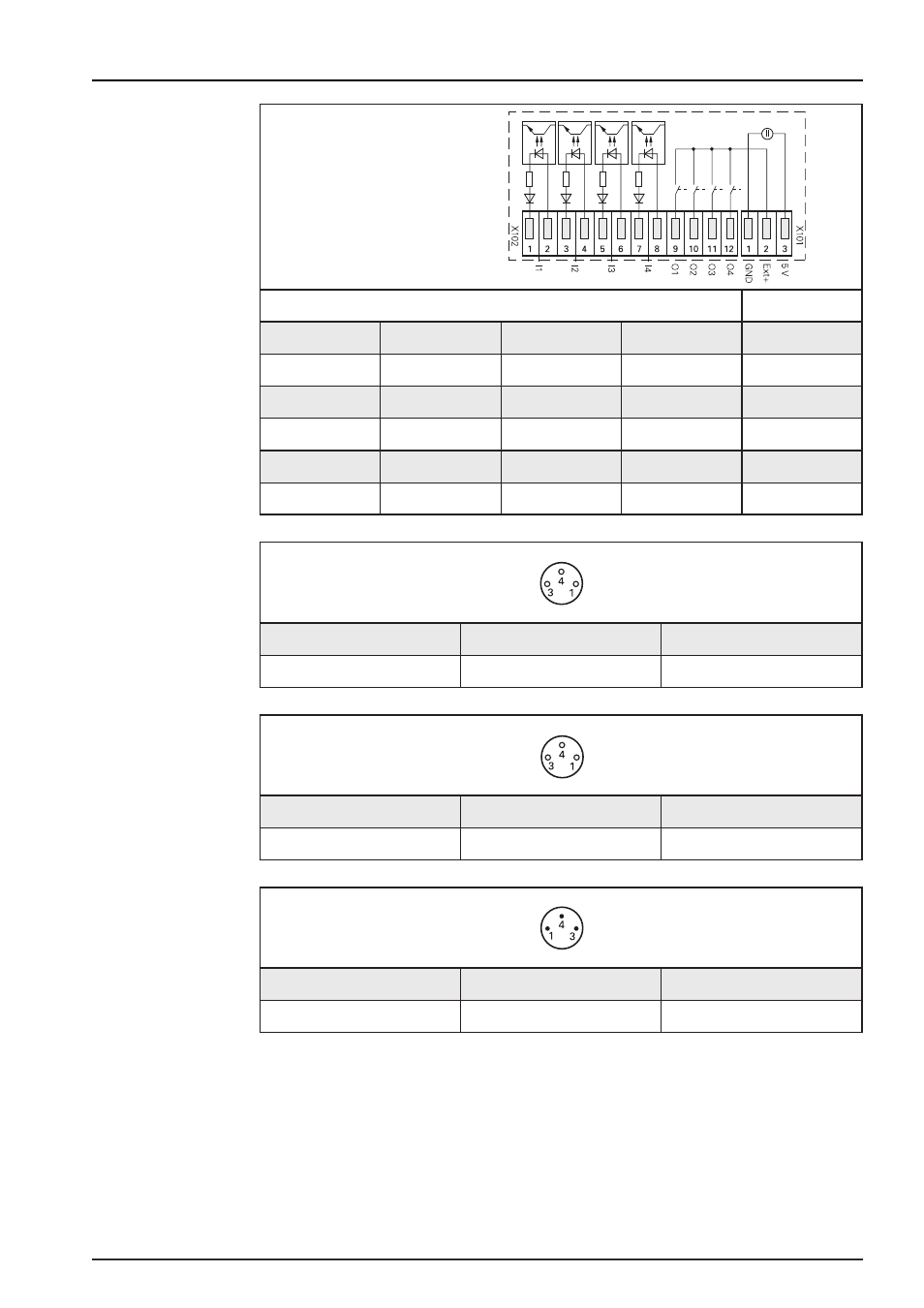

X101, X102
I/O terminal block
MSE 1401 (ID 747507-01)
21 I/O 22 Power
1 2 3 4 1
In 1 - In 1 + In 2 - In 2 + GND
5 6 7 8 2
In 3 - In 3 + In 4 - In 4 + EXT+ In
9 10 11 12 3
Out 1 Out 2 Out 3 Out 4 DC 5 V Out
23
X102: I1 ... I4
3-pin M8
for switching inputs
MSE 1401 (ID 747507-02)
1 3 4
IN X + / IN X -
24
X102: O1 ... O4
3-pin M8
for relay outputs
MSE 1401 (ID 747507-02)
1 3 4
OUT X / /
25
X101
3-pin M8
for I/O power
MSE 1401 (ID 747507-02)
1 3 4
DC 5 V DC 5 ... 24 V IN GND
