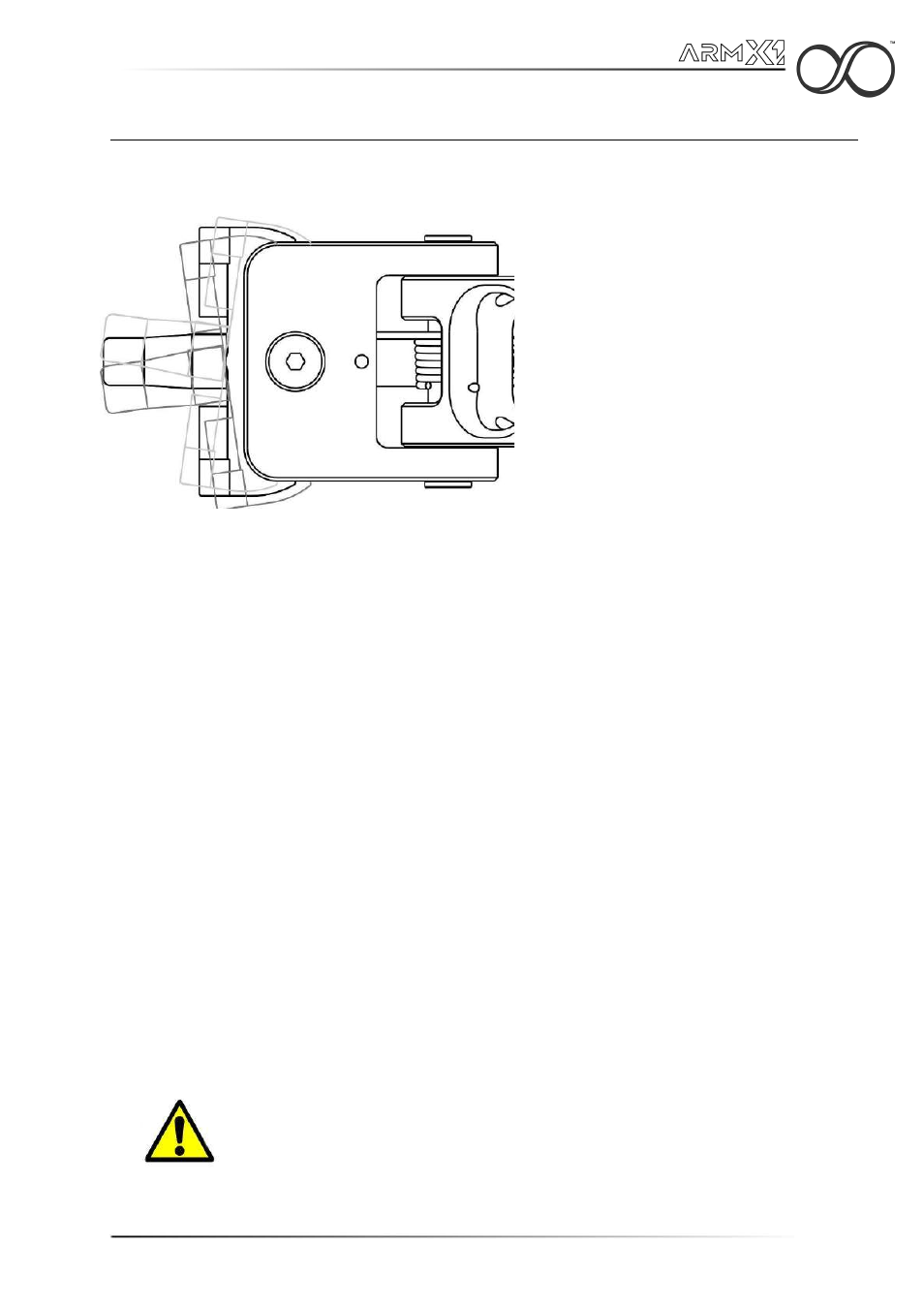

Tilt Adjustment
Thanks to two screws on the mating
block, you can change the tilt-on
angle of your Arm X1. The tilting
adjustment is closely related to the
operator posture.
If you need to adjust it, use the Allen
Key number 5.
The two screws can lock the arm in any required position.
Assuming that the arm is configured to be connected to a vest with the arm mating block
on the operator right side:
If the arm pulled to the right :
1. Loosen the upper screw and tighten the lower one until the arm gets balanced (while
you are bolt upright).
2. Tighten the upper screw until the arm gets locked in the desired position.
If the arm pulled to the left :
1. Loosen the lower screw and tighten the upper one until the arm gets balanced (while
you are bolt upright).
2. Tighten the lower screw until the arm gets locked in the desired position.
We recommend you to perform always this adjustment after wearing
the vest (SmartCAM Vest Lite or similar) and have it tightened to your
body.
