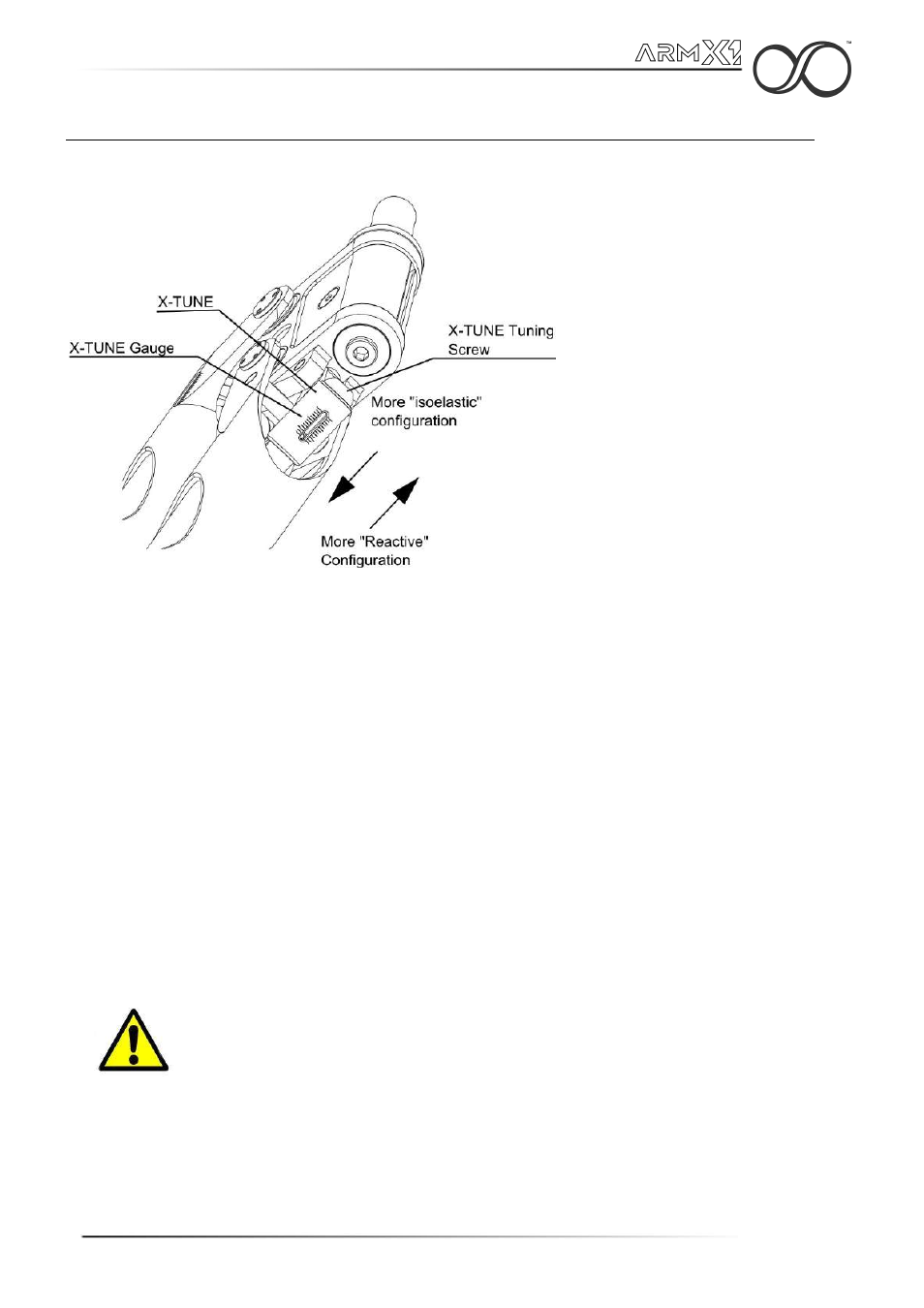

X-TUNE
The SmartSystem Arm X1
is equipped with an
exclusive tuning system
called X-TUNE. It let to
change the dynamic
behaviour of the Arm itself.
X-TUNE works in synergy
with the springs that are
installed in the arm.
Thanks to the X-TUNE system the steadycam operator will be able to decide if configure
the arm to be reactive or soft, quasi-isoelastic.
X-TUNE setting is per spring and it is equipped with a graduated scale allowing the user
to set up every active arm component with an extreme precision.
Adjusting the X-TUNE screw in order to move the marker closer to the spring slot will
transform the arm in a more soft system, tending to isoelastic. Otherwise, distancing the
marker from the spring slot, will transform the system in a more reactive arm (the best
solution for camera car or running takes).
X-TUNE causes the movement of the spring stem. It's always
necessary to recalibrate the preload once the X-TUNE setting has
changed.
