Arm X1 is equipped with four spiring lodgings, giving to the user the freedom to operate as
he prefer, referring to the load applied to the Arm itself.
It's also possible to work with only one spring for every parallelogram, in order to minimize
the total weight of the equipment and to maximize the use of the spring force.

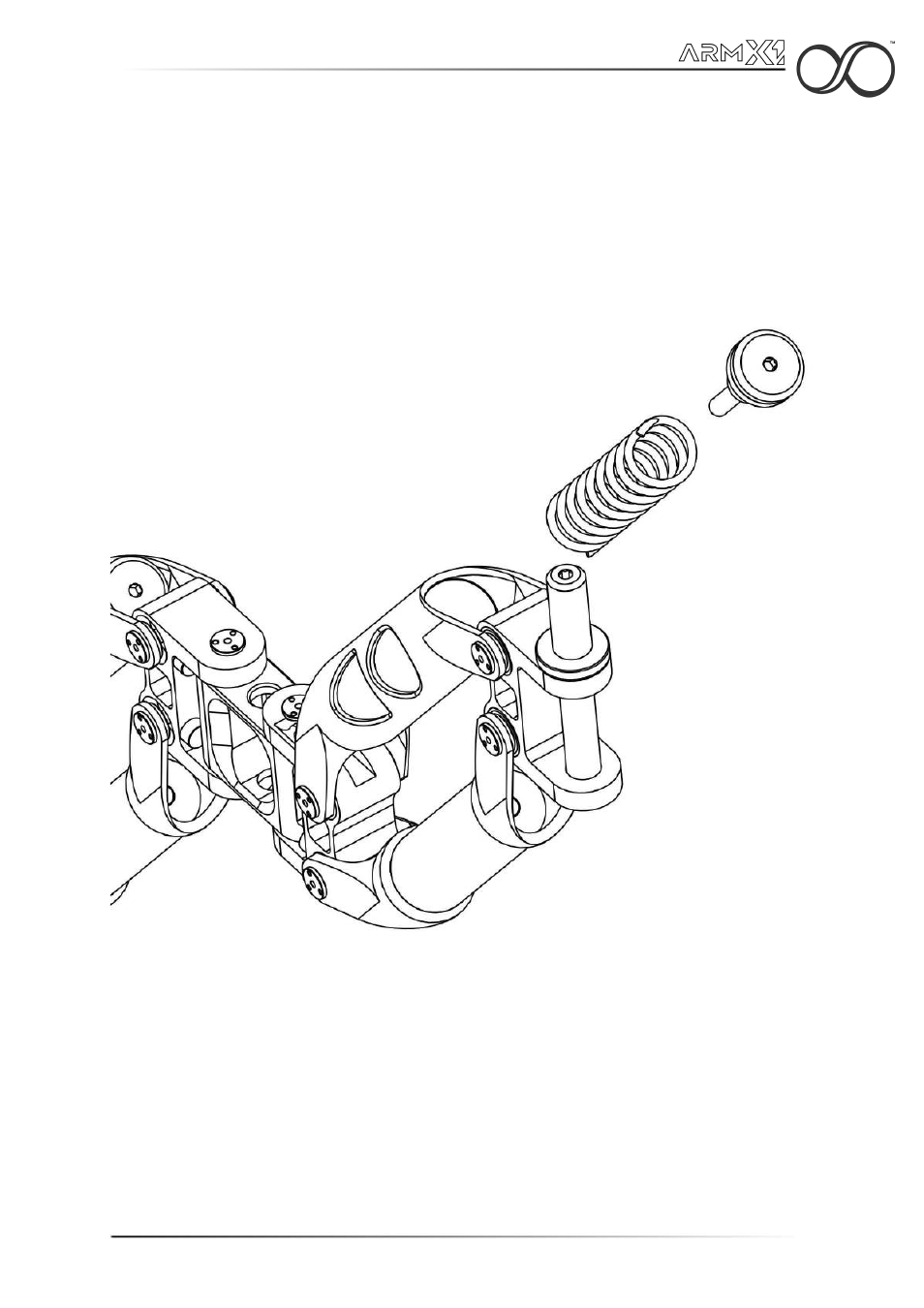

The springs replacement is simple and quick. We recommend you to follow the following
steps:
1. Put your Arm X1 on a clean and dry surface.
2. Using the Allen key No. 5, rotate anti-clockwise the arm to loosen the pre-load screws
up to the full release.
