3. Remove the preload screw.
4. Remove the spring you'll find in the lodging.
5. Insert the more suitable spring (read and follow the load diagram).
6. Put back and tighten, clockwise, the preload screw previously removed.

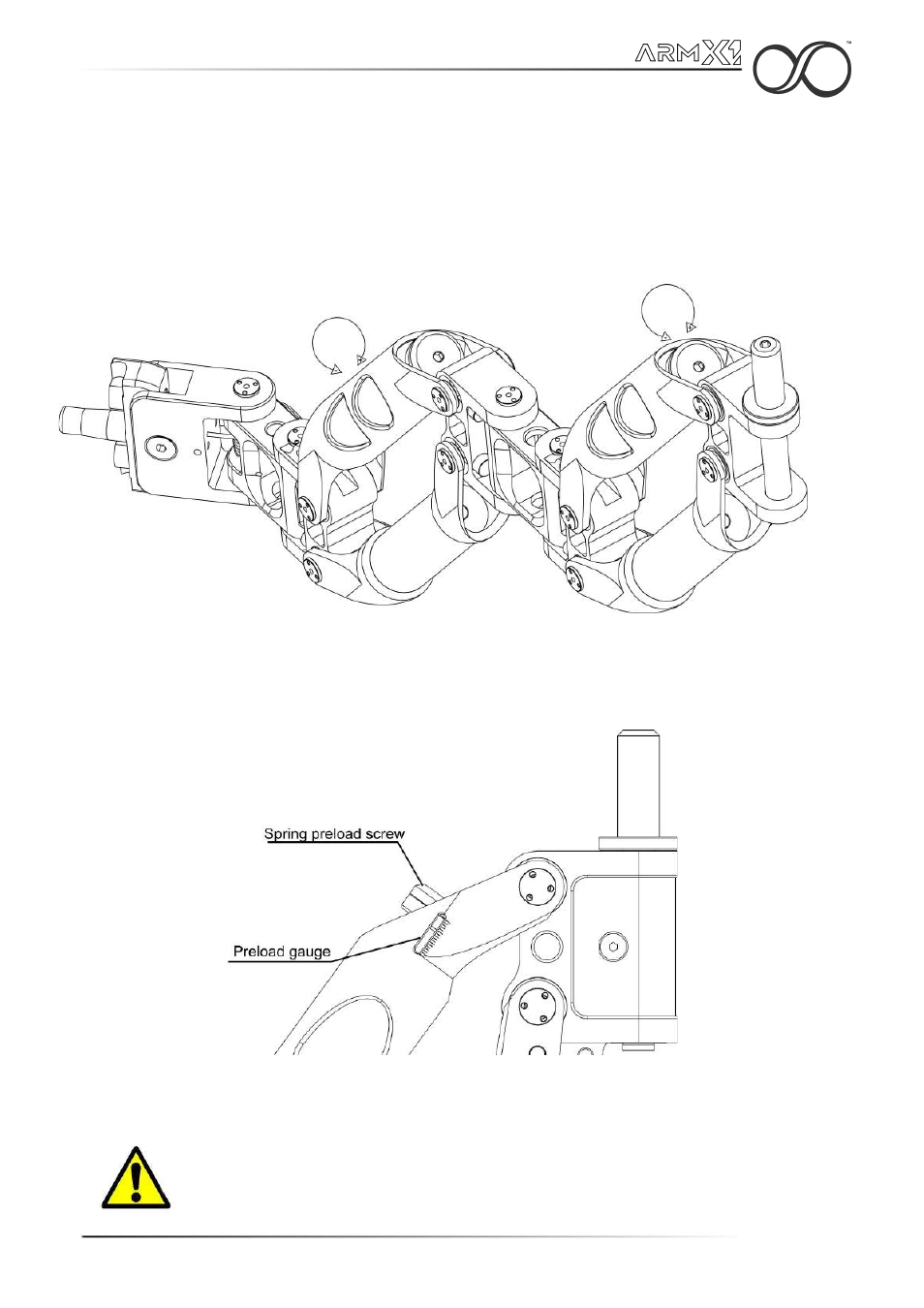

7. Tighten the preload screw until the small plate of the screw itself will be aligned to the
first mark in the preload indicator. (as shown in the picture)
The alignment of the preload screw small plate to the first mark grants a
right installation of the spring inside the slot.
18
