12

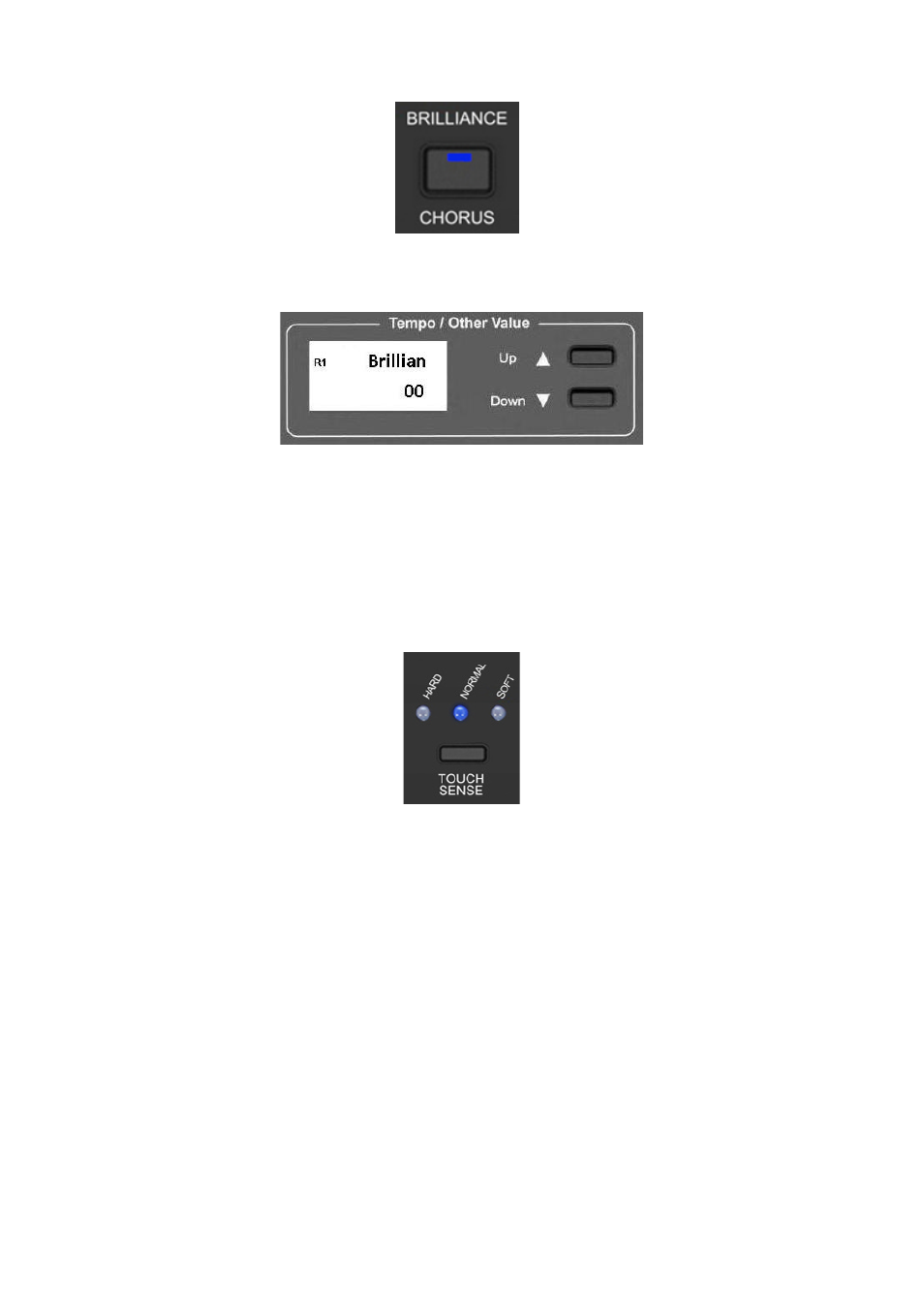

BRILLIANCE CONTROL
It is possible to adjust the sound of the instrument, changing it to a mellower or sharper sound.
By pressing the Brilliance/Chorus button for a few seconds, the display will show:
The Brilliance button Led is now blinking and using the (/\) UP and (\/) Down DATA buttons it is
possible to change the sound.
The values can be set up to +4 (max bright sound) and down to -4 (max mellow sound).
Select the value you prefer and the instrument will remember it, even after switching it off.
To go back to factory set value (00) use the (/\) UP and (\/) Down DATA buttons.
TOUCH SENSE
Just like an acoustic piano, your instrument has an 88 note keyboard with velocity control. This
means the level of the audio signal will be in proportion with the velocity of the key pressed. If you
play soft you will have a quiet sound, while if you play very hard you will have a much louder
sound .
The TOUCH SENSE button allows you to select 3 different touch sensitivity curves:
1 - HARD
This setting requires the keys to be played quite hard to produce
maximum loudness.
2 - NORMAL This setting produces standard keyboard response. This is the factory default
mode.
3 - SOFT This setting allows maximum volume with light key pressure.
Select the Touch Sensitivity you desired by pressing the TOUCH SENSE button until the desired
Led is switched On. If no Led is switched On the keyboard will be set at NO TOUCH
SENSITIVITY.
At Power Up the NORMAL curve will be automatically switched ON.
When Touch Sense is switched Off, the keyboard will play without touch sensitivity at the fixed
midi value of 100 and this midi value can be changed following this procedure:
- Make sure that the Touch Sensitivity Leds are switched Off.
