7. TYPE OF CONNECTIONS

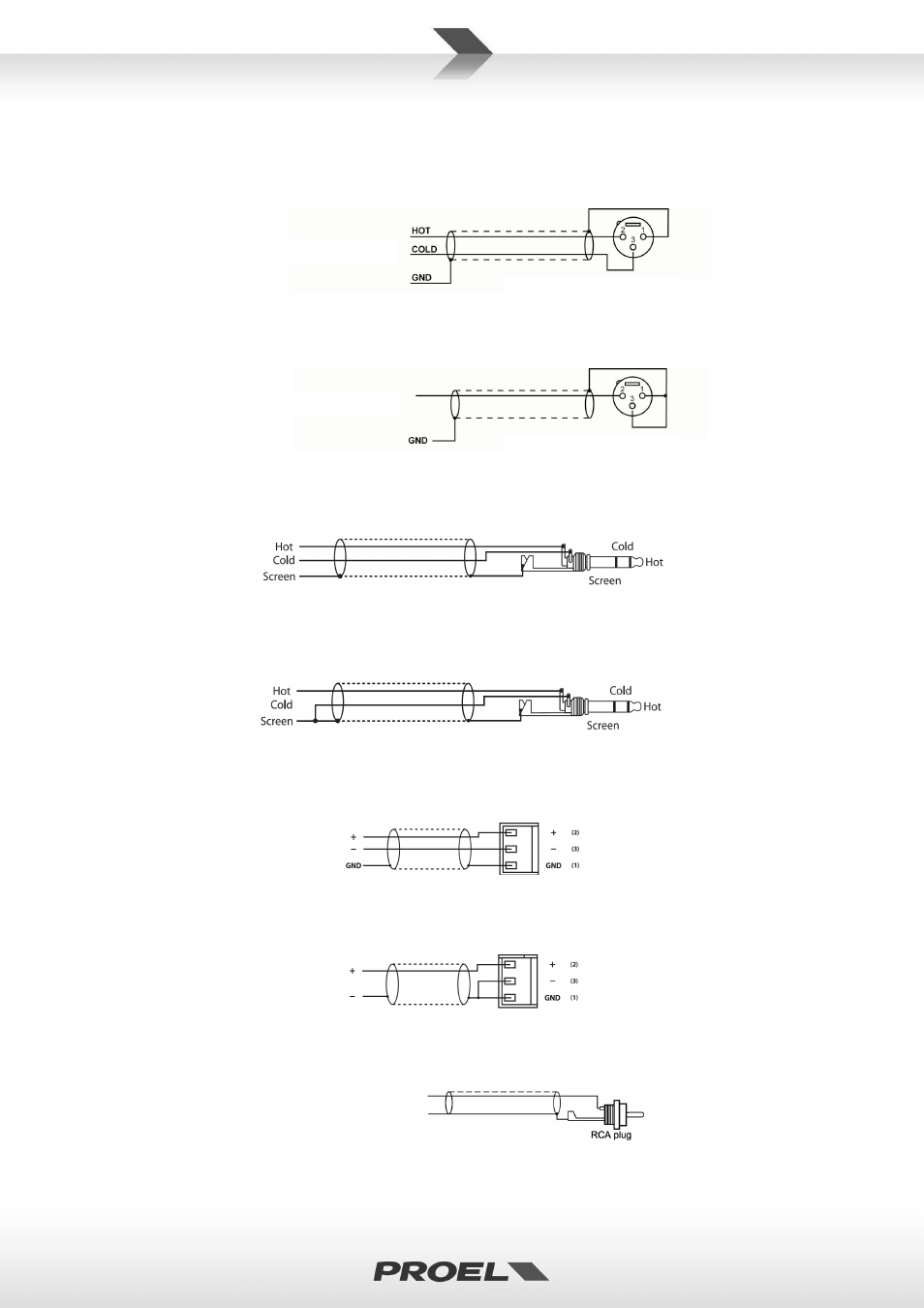

Balanced type of connection:
Unbalanced type of connection:
Balanced type of connection with jack stereo
Unbalanced type of connection with jack stereo
Balanced type of connection on a EUROBLOC terminal
Unbalanced type of connection on a EUROBLOC terminal
RCA connection
Balanced signal
XLR connector (welding side view)
XLR connector (welding side view)
Unbalanced signal
Balanced signal (channel L or R)
Ground
