21

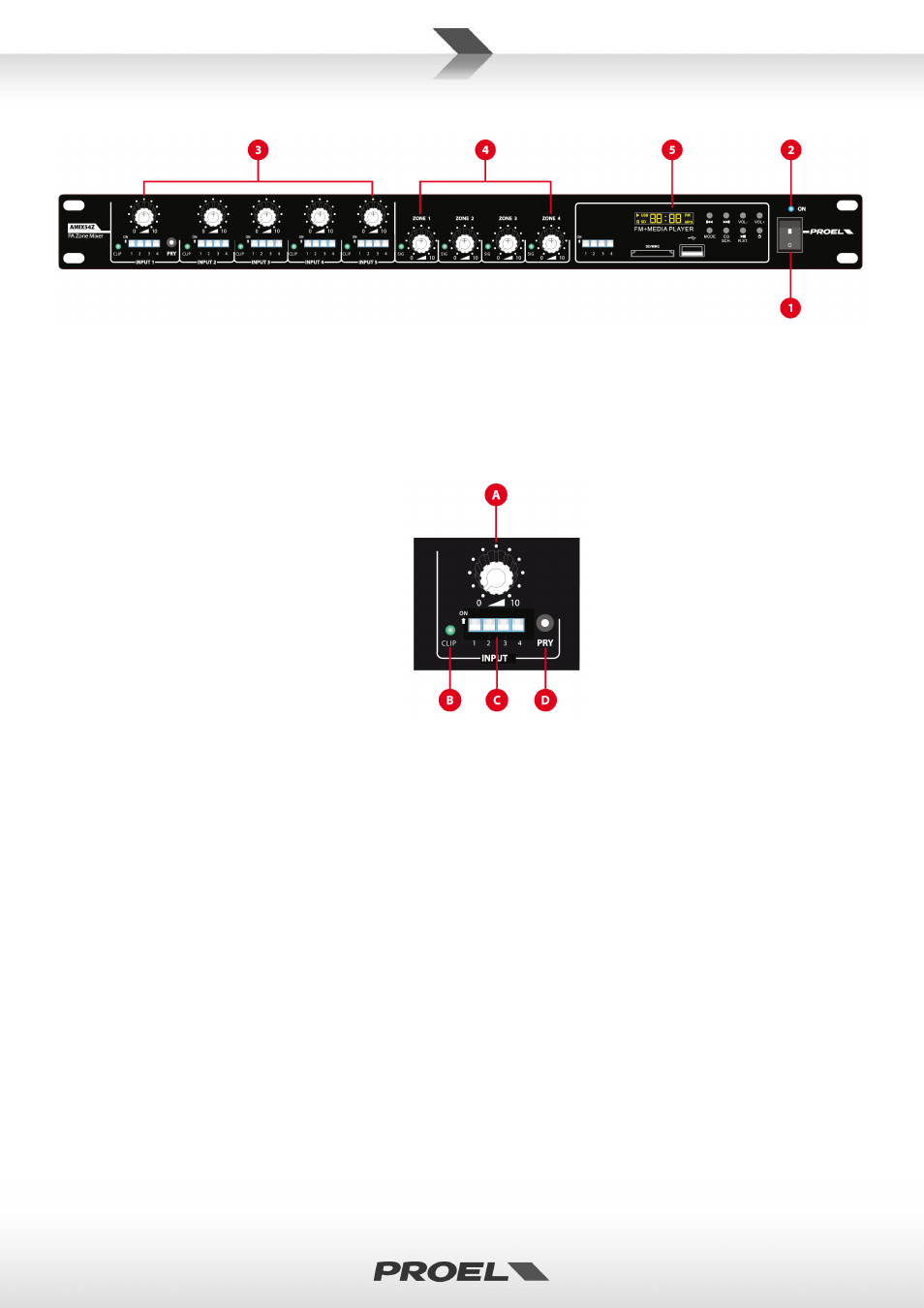

3. FRONT PANEL CONTROLS AND FUNCTIONS
Fig. 1
1. POWER
Main switch
2. LED ON
Device On LED
3. Inputs control
Fig. 2
A Volume control
It enables level adjustment with regard to the input
B CLIP
In order to have good listening volume without problems of distortion, adjust the potentiometer, maintaining
the output level so that the CLIP indicator does not remain permanently lit.
C Dipswitch to assign inputs to outputs
PIN 1 “ON”: the input is assigned to output Zone1
PIN 2 “ON”: the input is assigned to output Zone2
PIN 3 “ON”: the input is assigned to output Zone3
PIN 4 “ON”: the input is assigned to output Zone4
Note:
An input can be assigned to one or more output zones simultaneously.
D PRIORITY button
The Priority function is active when the button is pressed.
The Priority function is there so that when there is a signal on INPUT1, all signals on other inputs are Muted
regardless of the PIN position in the DIPSWITCH C.
Note: (Only present on input 1)
