4. Outputs control

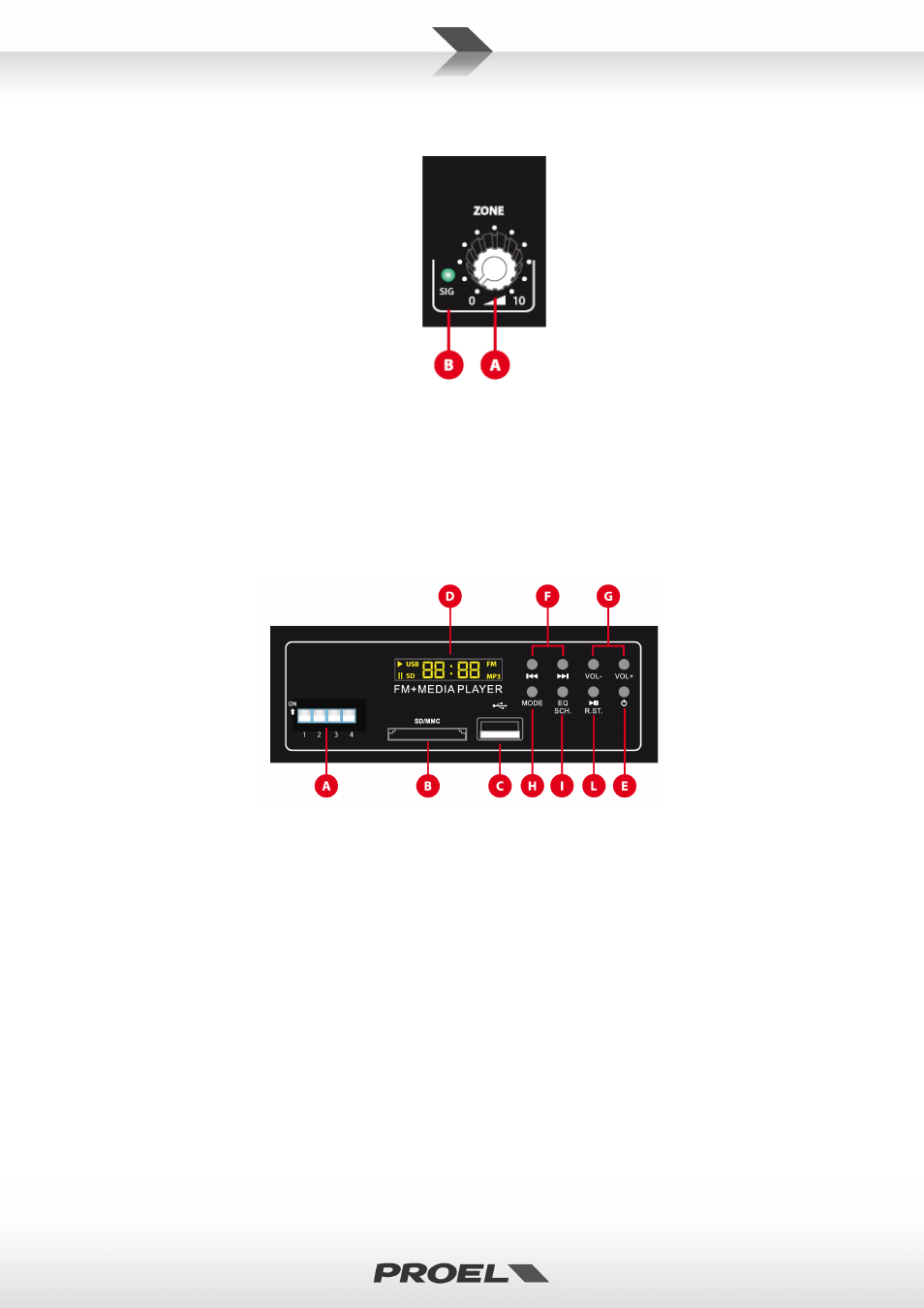

Fig. 3
A Zone volume
It enables volume adjustment of the audio output in the respective zone
B SIG
LED to signal presence in the respective zone.
5. Multimedia module
6.
Fig. 4
A Dipswitch to assign an Audio source to outputs
PIN 1 “ON”: the music source is assigned to output Zone1
PIN 2 “ON”: the music source is assigned to output Zone2
PIN 3 “ON”: the music source is assigned to output Zone3
PIN 4 “ON”: the music source is assigned to output Zone4
Note: A music source can be assigned to one or more output zones simultaneously.
B SD CARD input
Insert the SD CARD into the relative slot
Note: The device supports USB drives up to 64 GB - “.mp3” and “.wma” file formats
C USB input
Insert the USB drive into the input.
Note: The device supports USB drives up to 64 GB - “.mp3” and “.wma” file formats
