4. REAR PANEL FUNCTIONS AND CONTROLS

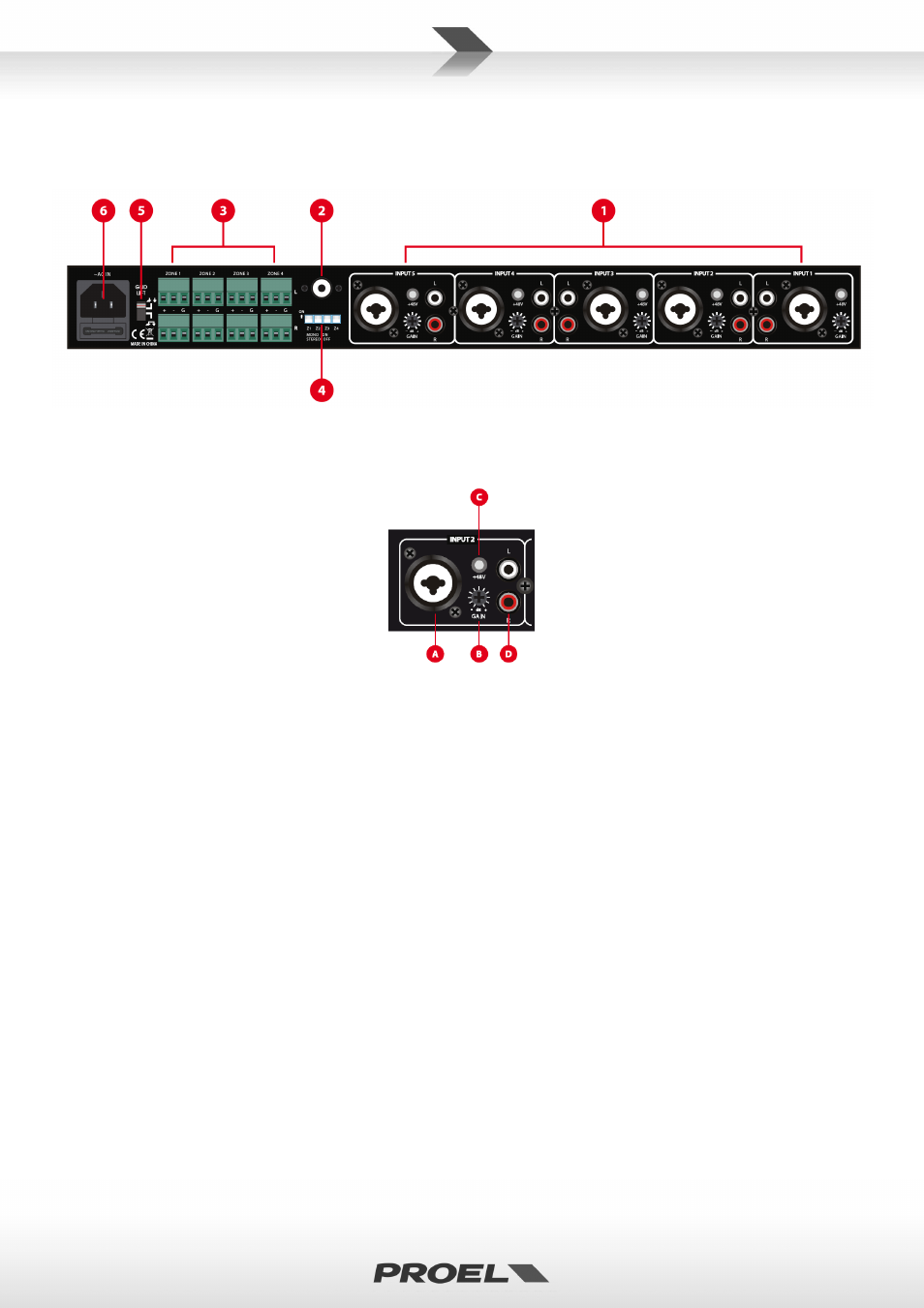

Fig. 5
1. MIC/LINE INPUT
MIC/LINE 1~5 inputs
Fig. 6
A COMBO input
MIC/LINE input balanced on a COMBO type connector (XLR female + Jack 6.3).
B GAIN
Operating this trimmer regulates the MIC/LINE input sensitivity on the COMBO connector.
GAIN does not operate on input RCA (Fig. 6, ref. D).
Note:
When a signal is connected to a line combo input, adjust GAIN to the minimum level.
C PHANTOM +48V
With the button pressed, there will be a Phantom +48 Vdc power supply available.
Note:
A COMBO input can be connected to both a dynamic microphone and a condenser (electret).
• Should a dynamic microphone be used, deselect Phantom power supply (key “C” released)
•
Should a condenser microphone be used, select Phantom power supply (key “C” pressed)
D RCA stereo input
Line level input on RCA STEREO connector.
Connect this stereo sound source input as a CD player, MP3 player, AM/FM tuner, etc.
