33

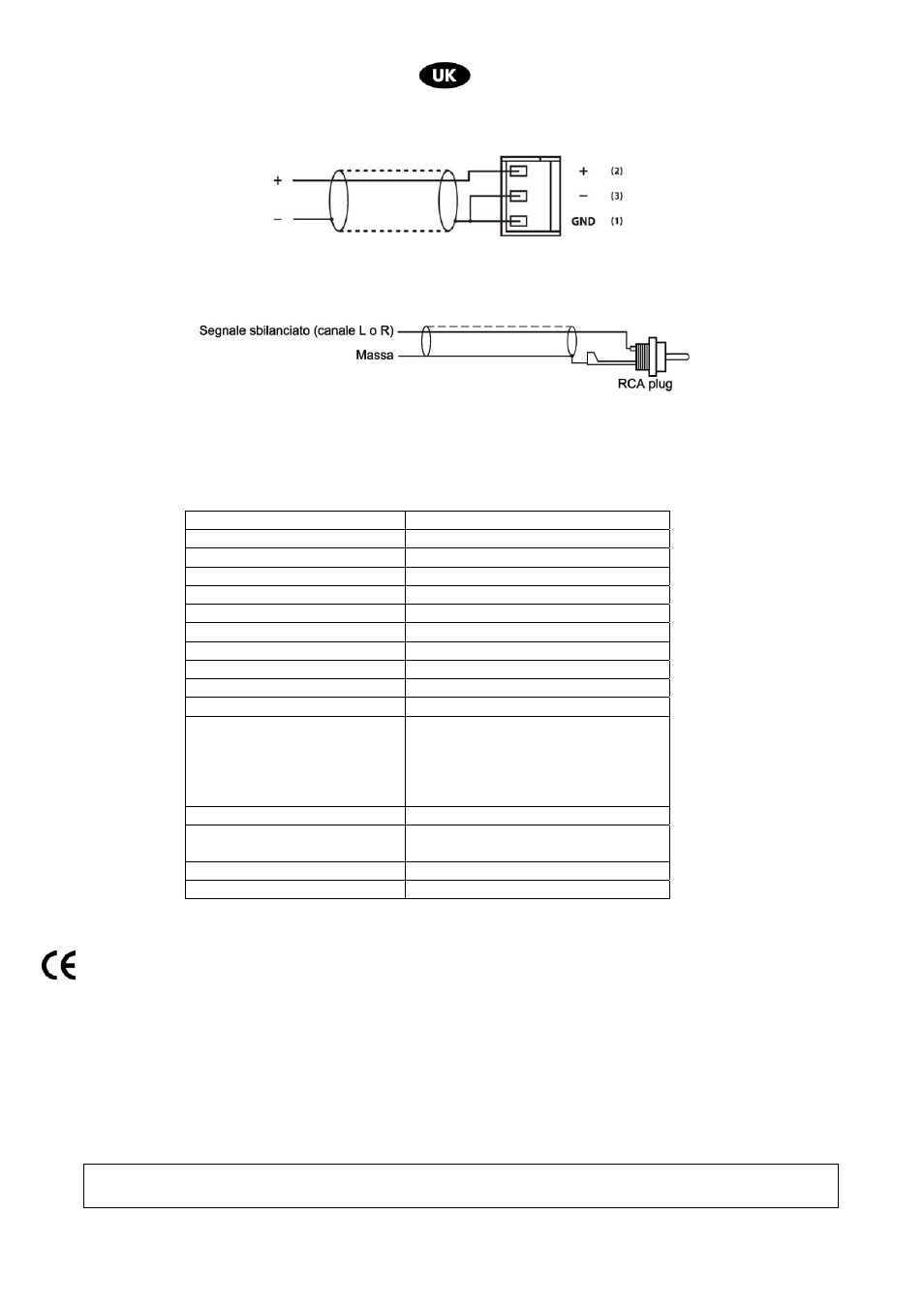

Unbalanced connection on EUROBLOC connector
RCA connection
14. TECHNICAL FEATURES
MODEL MATRIX88
Line Input Sensitivity 195 mV-2.0 V
Line Input Impedance 47 kΩ
Local Input Sensitivity 500 mV (balanced Input)
Local Gain ±8 dB
MIC1 Impedance 600 Ω
Zone Output
0.775 V (balanced Output)
Zone Output Level Control ±10 dB
S/N Ratio <60 dB
Channel Crosstalk >50 dB
Distortion (T.H.D)
<0.07% (@ 1 kHz)
Rs485 Communication
Protocol Baud Rate: 57600 bps/S Parity
Check: Odd parity check
Data: 16 bytes
Accumulation = 2nd data byte
+3rd data byte + 4th data byte
Power supply 230/117 V~ 50/60 Hz
24 V DC (for Emergency)
Dimensions (W x H x D) 483 x 133 x 315 mm -19’’ rack (3U)
Weight 10 kg
This product complies with Directive 89/336/CEE (Electromagnetic Compatibility)
and with the 92/31/CEE and 93/68/CEE amendments, according to the following standards:
EN 50082-1:1997, EN 55013:1990, EN 55020:1994
Furthermore, it complies with Directive 73/23/CEE (Low Voltage)
and 93/68/CEE amendments, according to the following standard:
EN 60065:1998
Proel SpA maintains a policy of constant research and development, therefore we reserve the right to apply improvements to any
existing equipment at any time without prior notice.
REV: 00 / 38-11
