Note: do not invert the antenna in order to avoid reducing substantially the reception quality.
2. Antenna A & B connector
Insert antenna ( supplied with the package ) operating frequency A and B into the bayonet connector A &B
ANT. Set vertically the antenna.
Note: do not invert the Antenna in order to avoid reducing substantially the reception quality.
3. MIX BAL OUT
Balance mixed signal output (XLR3 Male ) line level.
(Connect this output to the eventual available mixer or amplifier .
4. MIX
Unbalanced and mixed output line level.
(Connect this output to the eventual available mixer or amplifier).
5. ABCD
Unbalanced output. to each output does correspond exclusively the respective microphone stand signal.
6. VDC power supply connector
Connect this connector to AC/DC power supply prior connect to the main power supply 117-230VAC.
5. FUNCTIONES AND CONTROLS WIRELESS MIROPHONE CONSOLE BMW

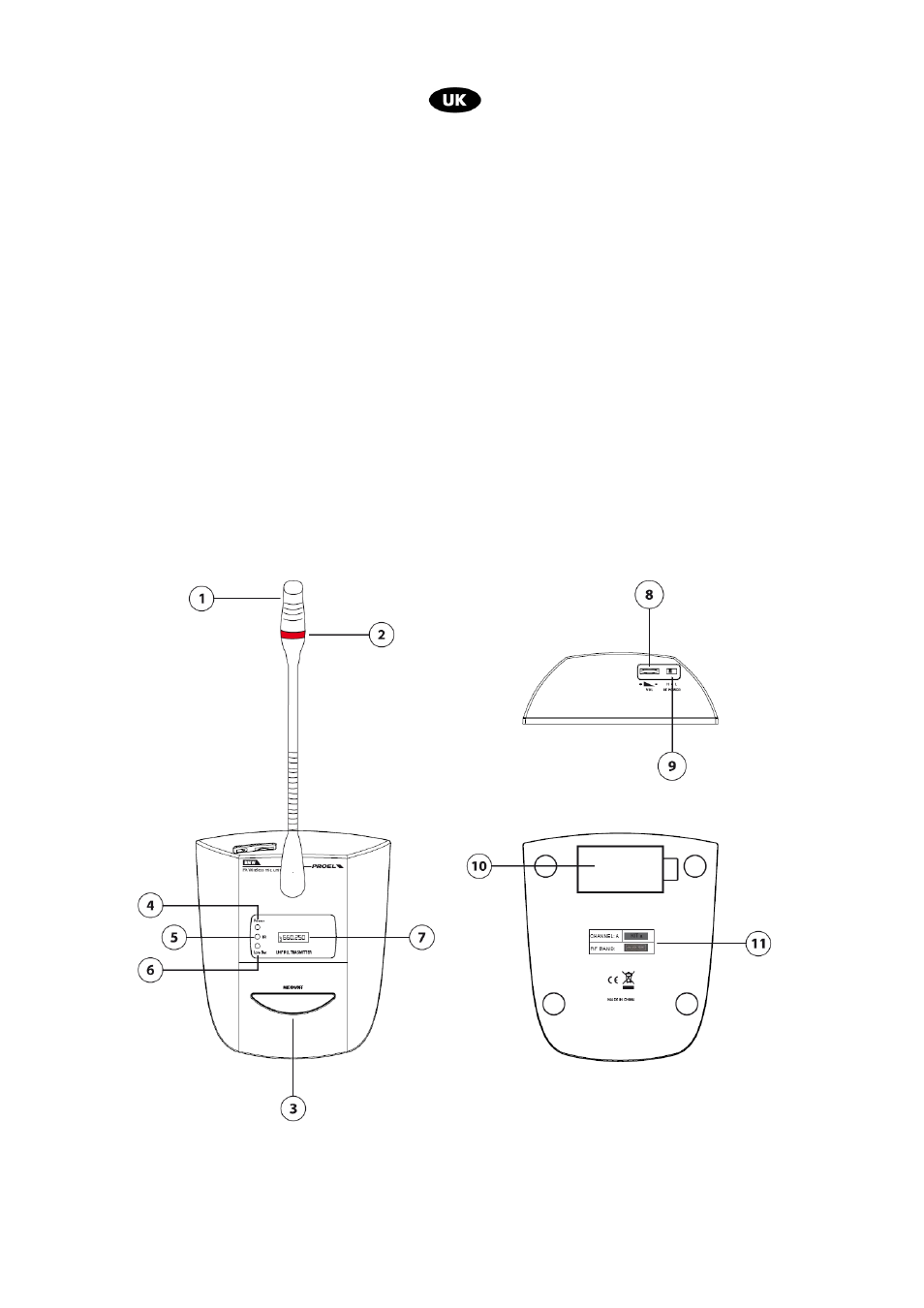

fig.3
1. Microphone capsule
2. Indicator light on active microphone
