19

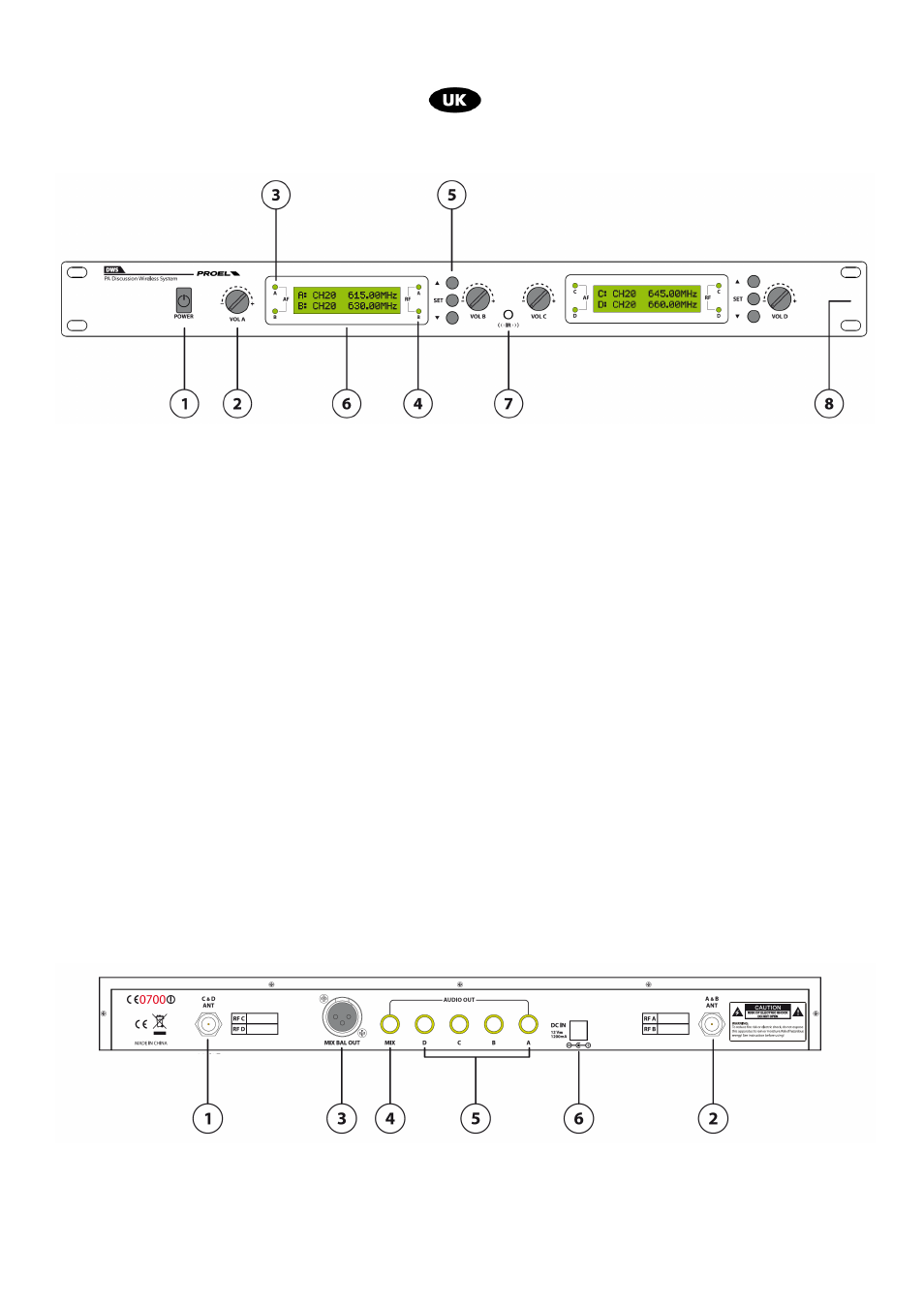

3. FUNCTIONS AND FRONT PANNEL CONTROLS
fig.1
1. POWER
Main Switch
2. VOL
Microphone channel volume control
3. AF
When the stands are in use, the corresponding Led is ON.
4. RF
When set on channel, there is one transmission active and the corresponding Led is ON
5. Navigation keys
Allow to access to the single channel setting
6. Display
Displays the information of channel A and B / C and D
7. IR
IR Transmitter
8. Brackets
Brackets for 19” Rack standard fixing purposes
4. FUNCTIONS AND REAR PANEL CONTROLS
fig.2
1. Antenna C & D connector
Insert the antenna ( supplied with the package) operating in frequency C and D into bayonet connector C&D
ANT. Set the antenna vertically.
