19
OPTIONAL WIRELESS RECEIVER INSTALLATION
Follow the instructions below to install the optional wireless receiver.
1. Remove the rear cover from the box unscrewing the 2 screws (Figure 1).
2. Separate the cables from the cover (Figure 2).
3. Insert the cables in the correspondent connectors on the FR2R receiver (Figure 3 and 4).
4. Mount the FR2R receiver into the slot using the same 2 screws.

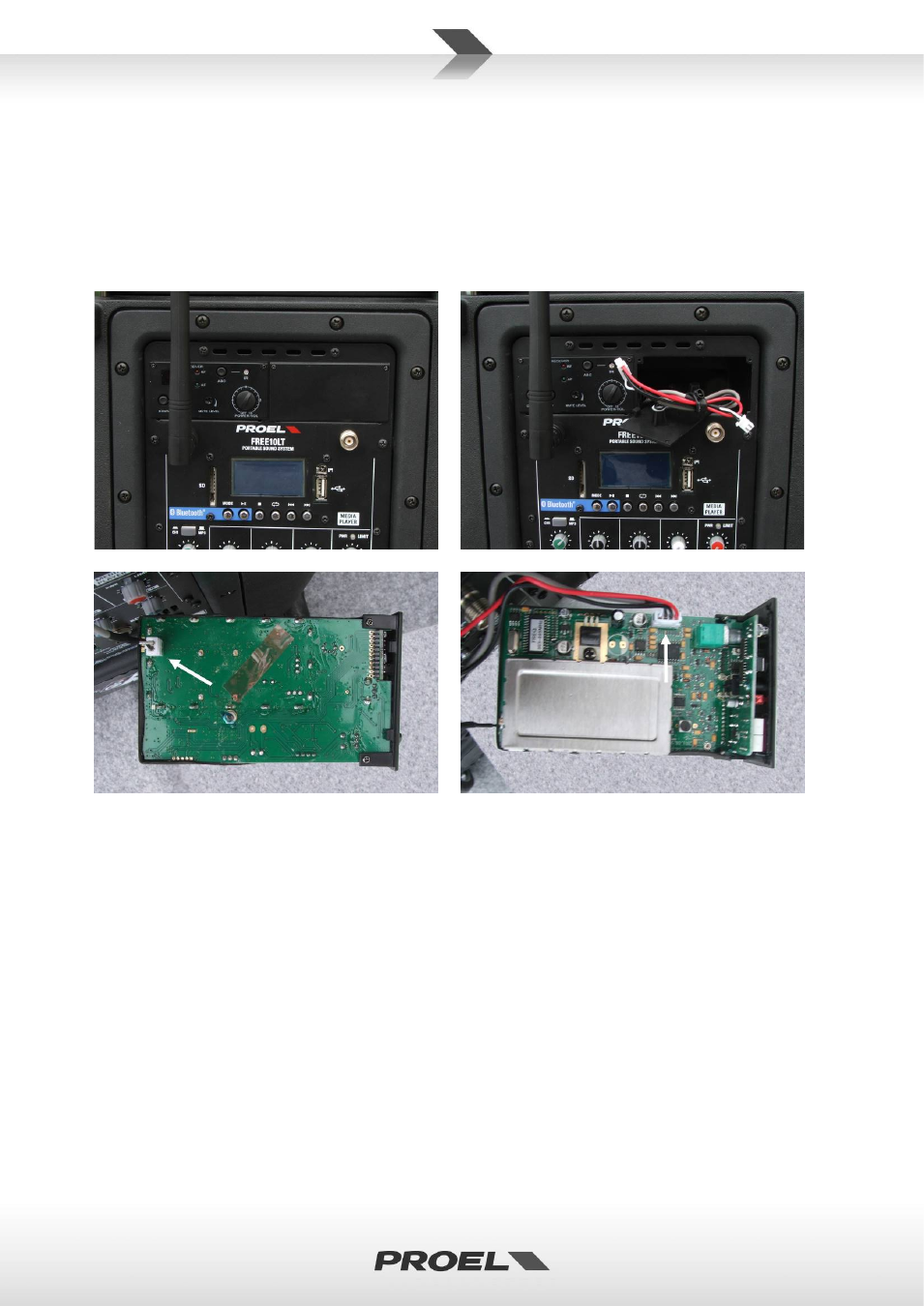

Figure 1 Figure 2
Figure 3 Figure 4
