4. INSTALLATION
1. Input connections
• MICROPHONE/ MICROPHONE STANDS CONNECTIONS:
use only shielded cable with any kind of microphone used.
Revert to (fig.2 ref.4)
Set input level to MICRO level , PIN1 position ON
Nota: if the microphone stand is active, select LINE level PIN1 position OFF
Advice: For use for speech, set PIN3 on position ON.
For microphone with Phantom power set PIN4 on position ON.
• LINE INPUT CONNECTIONS(CD, AM/FM TUNER, etc..)
I use shielded cable for long distance)
Revert to (fig.2 ref.4), set input level to LINE level, PIN1 on position OFF ( Phantom power supply disabled ).
Advice: for use for speech purposes set PIN3 on position ON.

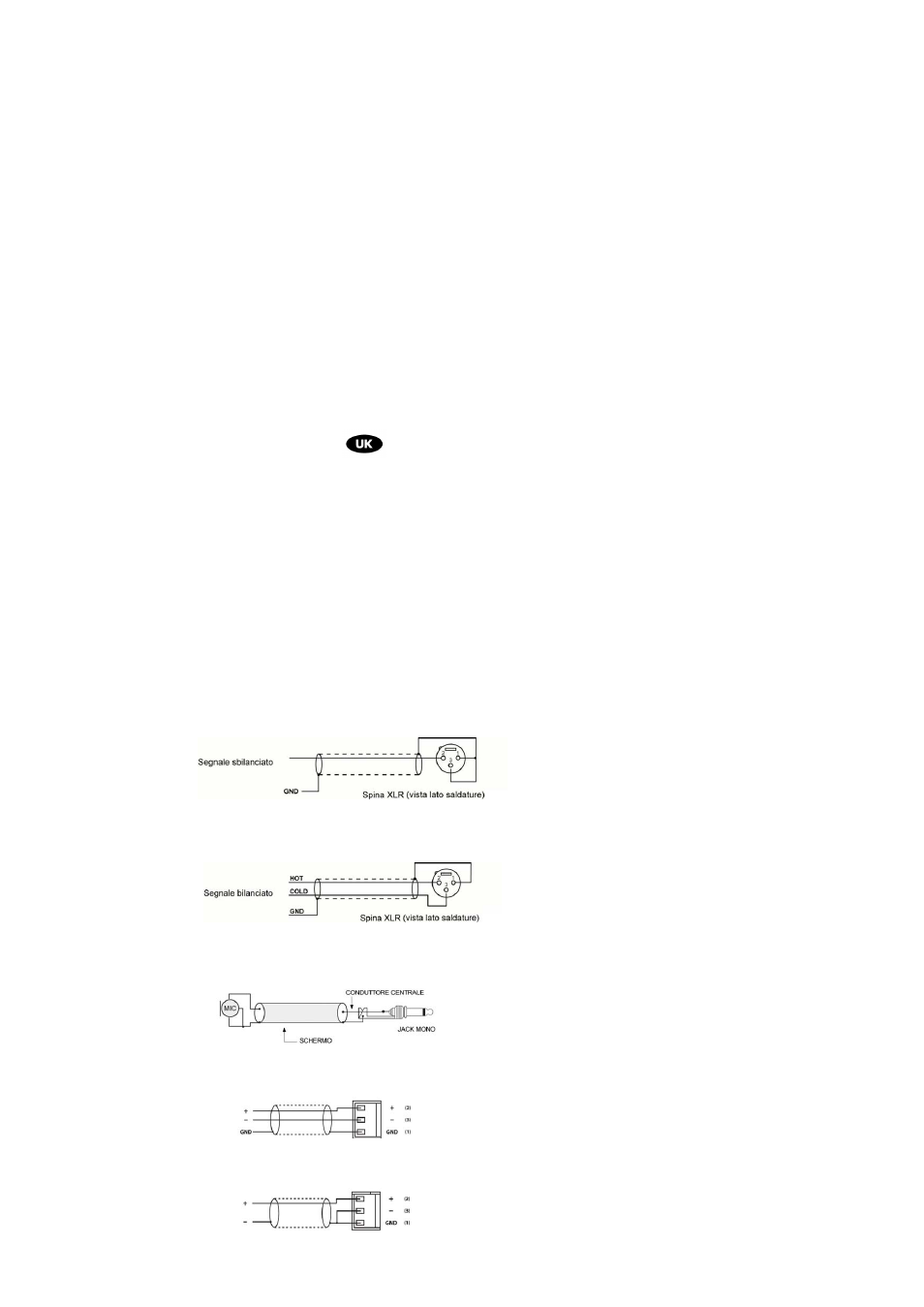

For different connections purposes, apply to the following schemes::
Unbalanced connection : ( unbalanced signal- XLR plug )( soldering view side)
Balanced connection:balanced signal –XLR plug soldering view side)
Unbalanced connection with mono jack ( main wire- shielded cable part)
Unbalanced connection on EUROBLOC terminal
Unbalanced connection on EUROBLOC connection
