RCF 8000 Series UP 8502 Power Amplifier (2 x 250 W) Manuale d'uso
Pagina 9
9
ENGLISH
w

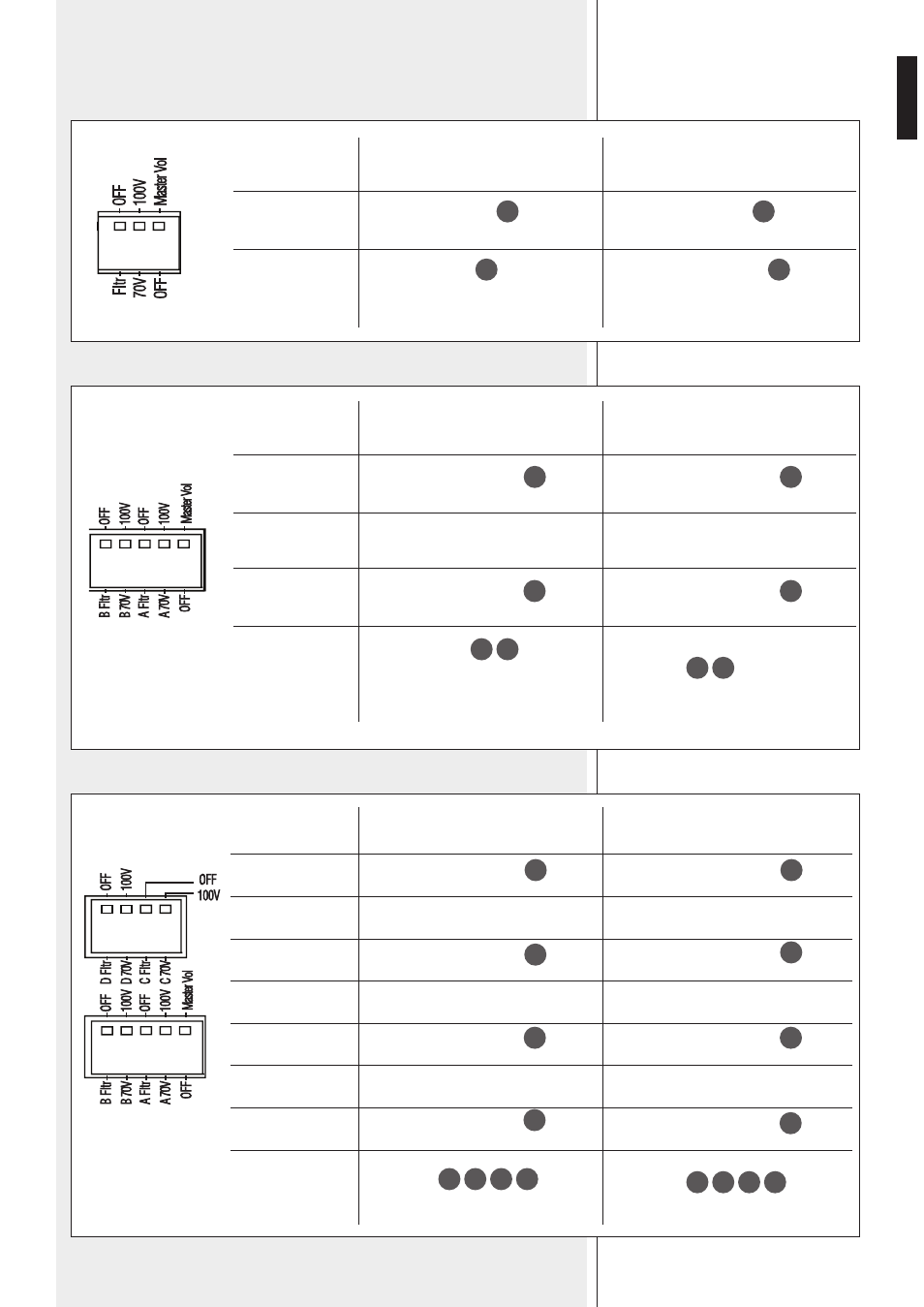

Dip-switches
UP 8501
UP 8502
UP 8504
Fltr – OFF
70V – 100V
OFF – Master Vol
Fltr:
the band-pass filter is inserted
(200 Hz ÷ 8 kHz).
70V:
Amplifier output
13
for
loudspeakers is set to 70 V.
OFF:
the MASTER
12
volume control
is disabled (the volume depends on the
remote control).
OFF:
the band-pass filter is not inserted.
100V:
Amplifier output
13
for
loudspeakers is set to 100 V.
Master Vol:
the MASTER
12
volume
control is enabled.
B Fltr – OFF
B 70V – 100V
A Fltr – OFF
A 70V – 100V
OFF – Master Vol
D Fltr – OFF
D 70V – 100V
C Fltr – OFF
C 70V – 100V
B Fltr – OFF
B 70V – 100V
A Fltr – OFF
A 70V – 100V
OFF – Master Vol
B Fltr:
the band-pass filter of the B
channel is inserted.
70V:
the B channel output
13b
for
loudspeakers is set to 70 V.
A Fltr:
the band-pass filter of the A
channel is inserted.
70V:
the A channel output
13a
for
loudspeakers is set to 70 V.
OFF:
all MASTER
12a
12b
volume
controls are disabled
(all volumes depend on the remote
controls).
D Fltr:
the band-pass filter of the D
channel is inserted.
70V:
the D channel output
13d
for
loudspeakers is set to 70 V.
C Fltr:
the band-pass filter of the C
channel is inserted.
70V:
the C channel output
13c
for
loudspeakers is set to 70 V.
B Fltr:
the band-pass filter of the B
channel is inserted.
70V:
the B channel output
13b
for
loudspeakers is set to 70 V.
A Fltr:
the band-pass filter of the A
channel is inserted.
70V:
the A channel output
13a
for
loudspeakers is set to 70 V.
OFF:
all MASTER
12a
12b
12c
12d
volume
controls are disabled (all volumes depend
on the remote controls).
OFF:
the band-pass filter of the B
channel is not inserted.
100V:
the B channel output
13b
for
loudspeakers is set to 100 V.
OFF:
the band-pass filter of the A
channel is not inserted.
100V:
the A channel output
13a
for
loudspeakers is set to 100 V.
Master Vol:
all MASTER
12a
12b
volume controls
are enabled.
OFF:
the band-pass filter of the D
channel is not inserted.
100V:
the D channel output
13d
for
loudspeakers is set to 100 V.
OFF:
the band-pass filter of the C
channel is not inserted.
100V:
the C channel output
13c
for
loudspeakers is set to 100 V.
OFF:
the band-pass filter of the B
channel is not inserted.
100V:
the B channel output
13b
for
loudspeakers is set to 100 V.
OFF:
the band-pass filter of the A
channel is not inserted.
100V:
the A channel output
13a
for
loudspeakers is set to 100 V.
Master Vol:
all MASTER
12a
12b
12c
12d
volume
controls are enabled.
