11

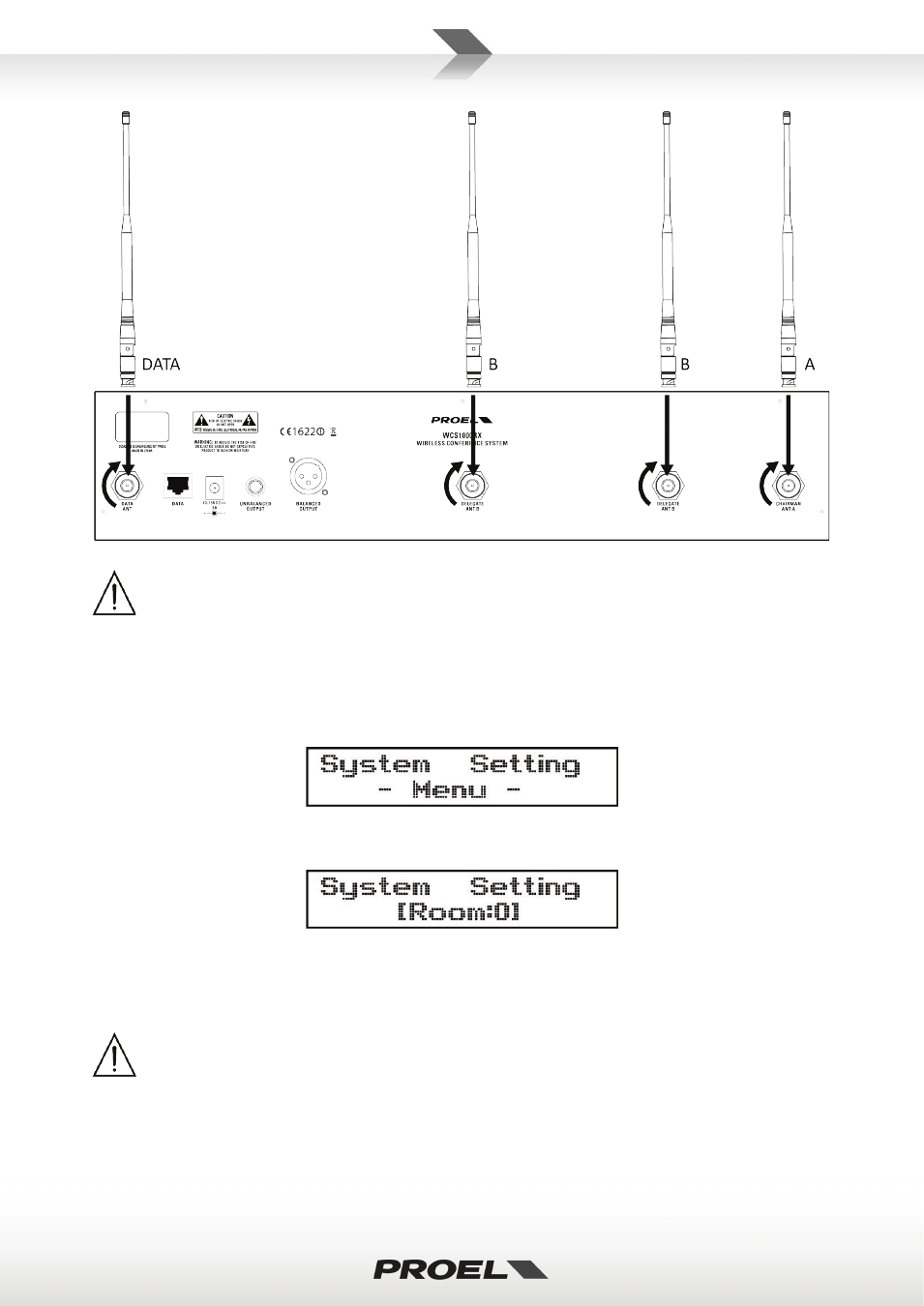

IMPORTANT: the different receiver antennas must be connected in correct positions or the system
will work properly.
WCS1000RX RECEIVER UNIT SET-UP
WCS1000RX receiver’s most used parameters can be set in the STANDARD menu, while more in-deep
parameters can be set in the SYSTEM SETTING menu.
To visualize the SYSTEM SETTING menu press and hold the SET button while powering up the receiver. The
display will show:
Release the SET button and the display will show the Room setting:
Pressing the  UP and  DOWN buttons you can choose the Room control channel within the range of 0-9,
A-F. This is the RF channel used by the system to exchange control data between the receiver and the
microphone units. Each channel corresponds to a frequency and a free frequency channel must be selected.
When choosing a control channel try to avoid channels used by other RF apparatus or other
WCS1000 systems in adjacent rooms.
The receiver and all the transmitter units must be set always on the same room CONTROL
channel.
In the majority of the UE countries the range for remote controls SRD is 433.050-434.790 MHz,
that corresponds to the Room channels B and C. In any case please consult your national
spectrum authority to set a proper frequency channel.
