Thank you for choosing this Proel product and for trusting our brand, which strives to be synonymous with
professionalism, precision, high quality and reliability. All of our products comply with EC regulations regarding audio
equipment for continuous use.
2. DESCRIPTION
2U-19” rack standard panel for power distribution and audio monitoring, featured with:
• Master magneto-thermal 16A switch, with turn light indicator
• 8 output AC power socket
• 12 inputs at 100V for audio monitoring of the PA amplifiers
• Volume
selector
• Monitor
speaker
• Comply with all reference directives for electrical installation.
Product complies with CE regulations

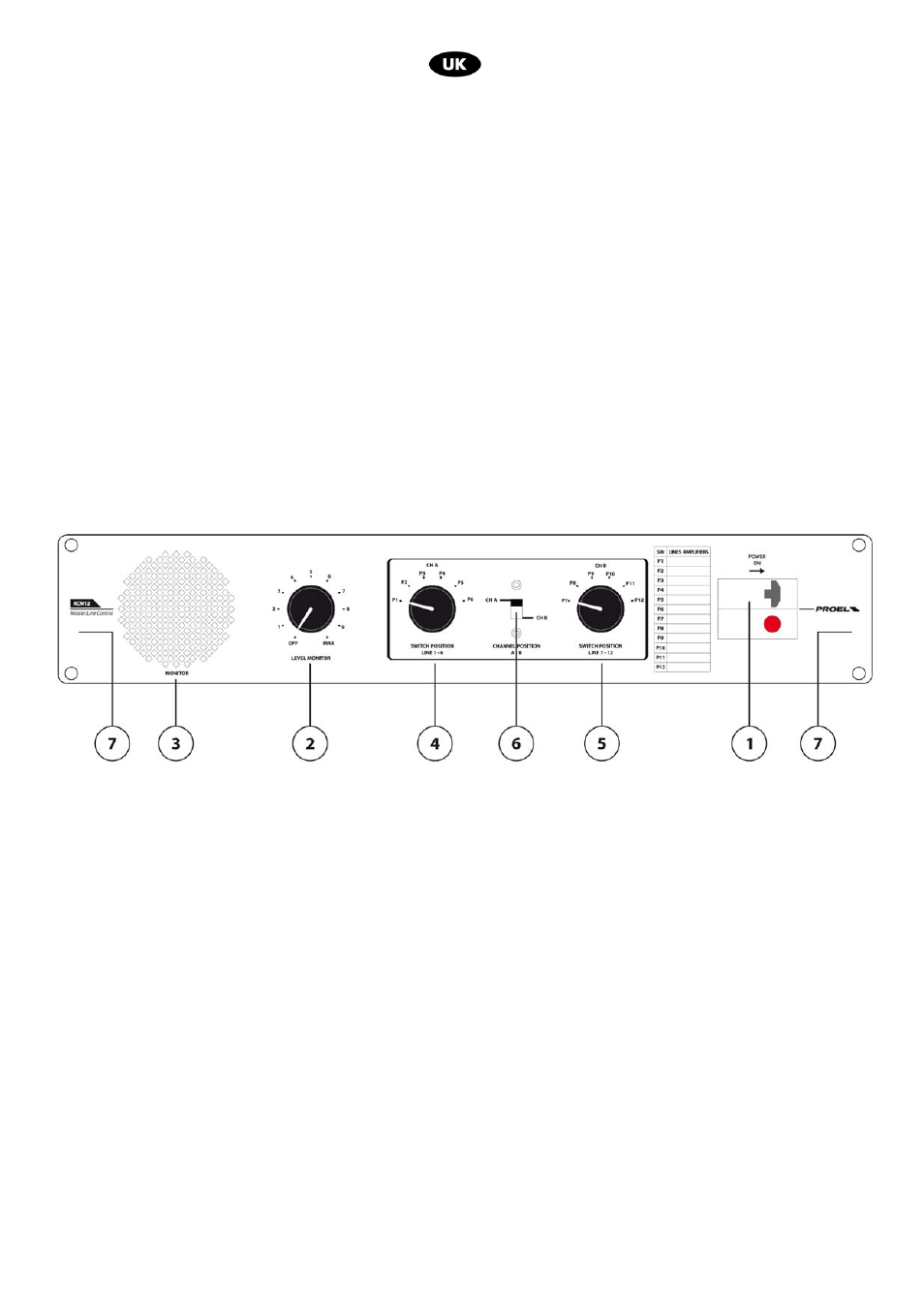

3. FRONT PANEL FUNCTIONS AND CONTROLS
fig.1
1. Master magneto-thermal switch with light indicator.
2. Volume knob.
This knob allows you to choose the monitor speaker output volume.
3. Monitor speaker.
4. SWITCH POSITION LINE 1-6
6-position switch.
It allows selecting the 100V output signal among one of the 6 amplifiers to be monitored, connected to the
dedicated terminal block 1÷6 (fig.2, rif.1)
5. SWITCH POSITION LINE 7-8
6-position switch.
It allows selecting the 100V output signal among one of the 6 amplifiers to be monitored, connected to the
dedicated terminal block 7÷12 (fig.2, rif.1)
6. CHANNEL POSITION
Channel position on:
CHA – “SWITCH POSITION LINE 1-6” is enabled
CHB – “SWITCH POSITION LINE 7-12” is enabled
7. 19” rack mount ears.
