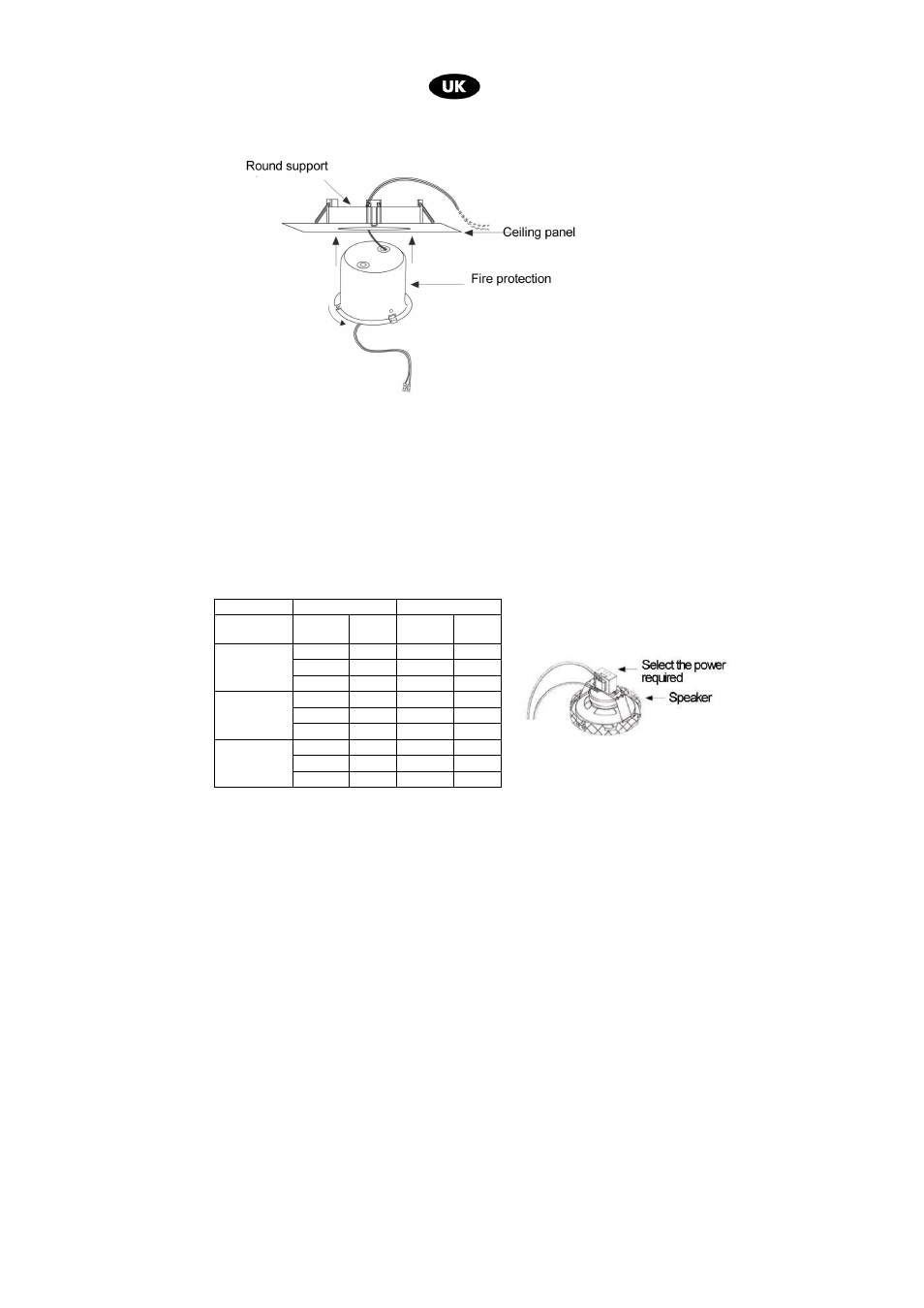

4. By changing the connection on the transformer (in correspondence to
the impedances 416 Ω - 816 Ω - 1,66 K - 3,3 K - 6,6 K for the CS5TAL,
and 208 Ω - 408 Ω - 833 Ω - 1,66 KΩ - 3,33 KΩ for the CS6TAL), it is
possible to select the output power of the unit. For such connection,
refer to the following table:
Model CS5TAL CS6TAL
Line voltage Imp. Output
power
Imp. Output
power
6,6 KΩ 1,5 W 3,33 KΩ 3 W
3,3 KΩ 3 W 1,66 KΩ 6 W 100 V
1,66 KΩ 6 W 833 Ω 12 W
3,3 KΩ 1,5 W 1,66 KΩ 3 W
1,66 KΩ 3 W 833 Ω 6 W 70 V
816 Ω 6 W 408 Ω 12 W
1,66 KΩ 1,5 W 208 Ω 3 W
816 Ω 3 W 408 Ω 6 W 50 V
416 Ω 6 W 833 Ω 12 W
