Tip = + positive or "hot"
Sleeve = shield or ground
13. VIDEO OUT
This is the composite video output of the internal MP3/DISC player. See further paragraph for more
detailed explanation.
14. POWER
Use this switch to power ON or OFF the FREE6. The FREE6 is "ON" when the switch is in the "I" position.
NOTE: if the AC ADAPTOR is attached and connected to the mains line, the internal battery is charging
even if the FREE6 is OFF.
15. ON
This GREEN LED indicates when the FREE6 has been turned on.
16. CHARGE
This LED indicates the battery charging status as follows:
‐ fixed GREEN: the internal battery is fully charged.
‐ fixed RED: the internal battery is being charged.
‐ flashing GREEN/RED: the internal circuit test the battery.
‐ OFF: the internal battery is disconnected or absent.
17. DC INPUT
This is the input where to connect the AC/DC adaptor to power the FREE6.
IMPORTANT: USE ONLY THE AC/DC ADAPTOR INCLUDED IN THE FREE6
PACKAGE.
WIRELESS MICROPHONE OPERATIONS
The FR1 Wireless Microphones system provided with the FREE6 is a UHF, quartz
controlled, fixed frequency device that provides a reliable, high‐quality signal
transmission.
The FR1 Wireless Microphone system features 3 units: FR1R receiver, FR1H
handheld transmitter and FR1B body pack transmitter.
The FREE6 is provided as standards with one handheld wireless microphone (FR1R
+ FR1H at 863.050 MHz). An additional wireless handheld microphone (FR1R +
FR1H at 863.675 MHz) or bodypack (FR1R + FR1B at 864.975 MHz) can be installed
as optional, allowing the simultaneous use of 2 devices without interference
between them.

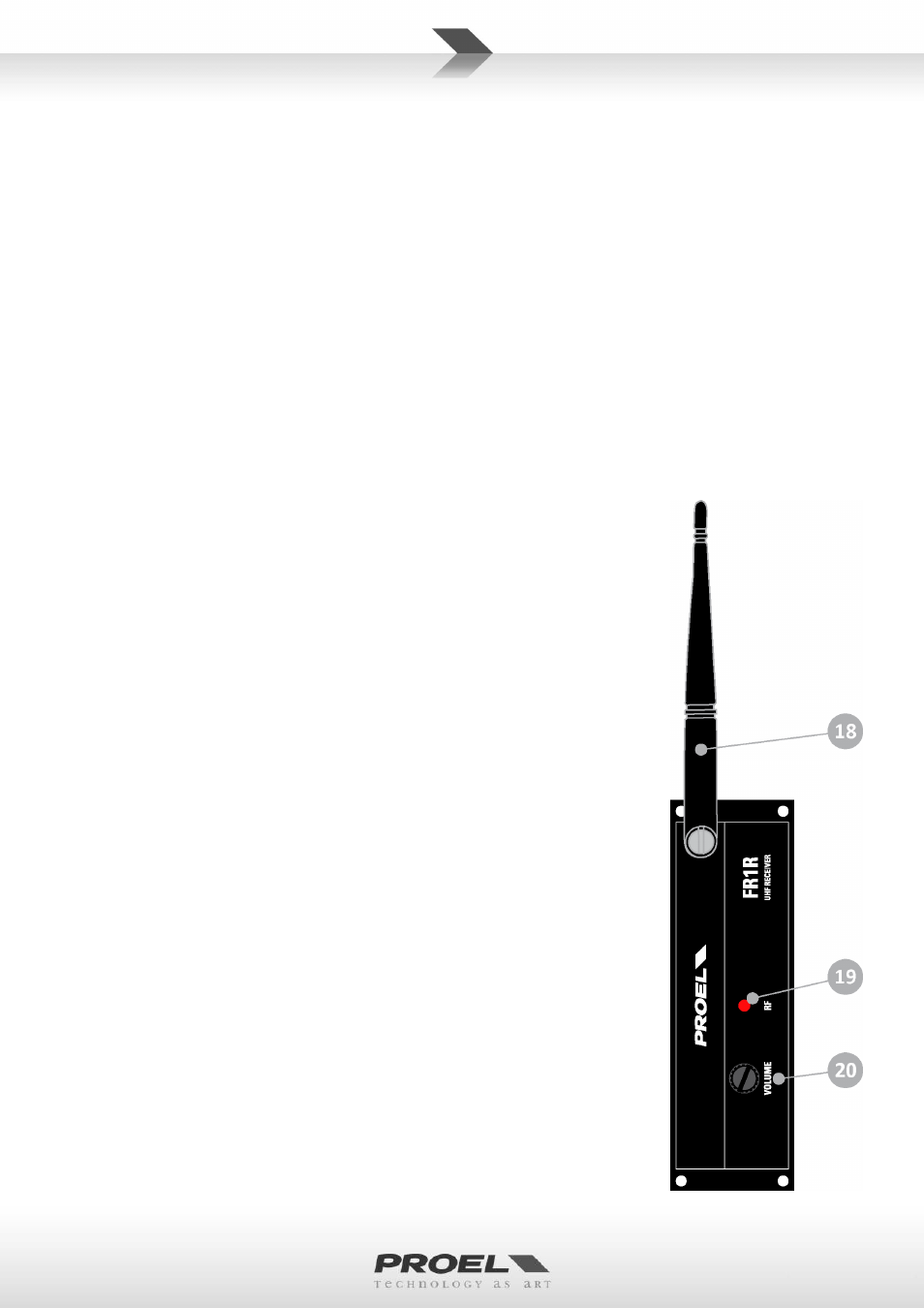

FR1R is the UHF wireless microphone receiver.
18. ANTENNA
In order to obtain a good transmission, raise up the receiving antenna during
use and place the receiver away from other metal objects and no more than
30m from the transmitter.
19. RF
RED LED: indicates that the transmitter is sending a radio signal to the receiver.
20. VOLUME
Volume potentiometer.
