Proel HPD2004 - Manuale (Pagina 9)

9

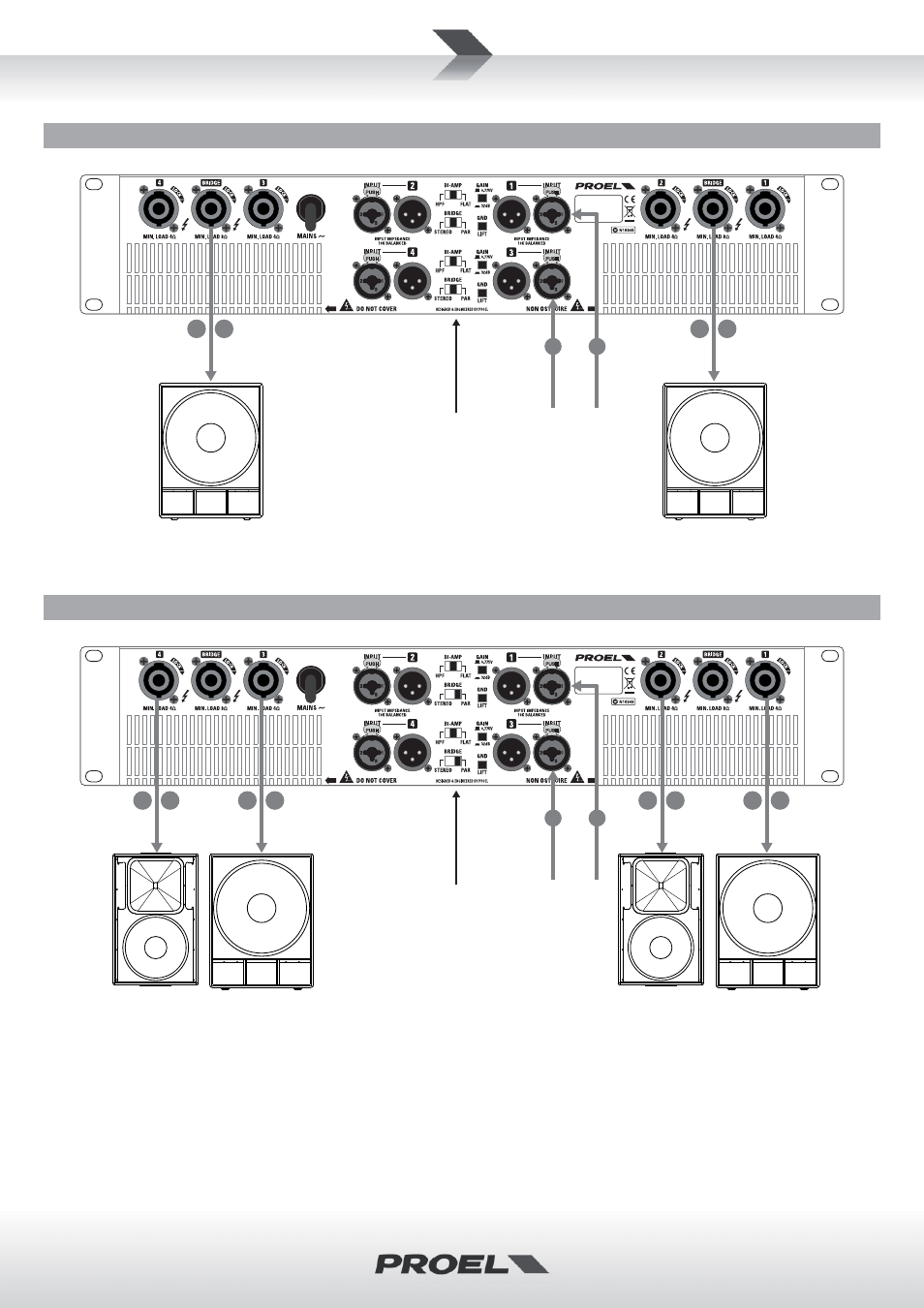

EXAMPLE D ESEMPIO D
EXAMPLE E ESEMPIO E
L
1+ 1-
subwoofer
8Ω minimum
subwoofer
8Ω minimum
set as BRIDGE for 2 subwoofer
driven from a L/R audio channels
and
set as BI-AMP for 100Hz 24dB/oct.
low pass filter
1+ 1-
R
L
1+ 1-
mid-high speaker
4Ω minimum
low subwoofer
4Ω minimum
mid-high speaker
4Ω minimum
low subwoofer
4Ω minimum
set as PARALLEL for 2 channel pairs
driven from a L/R audio channels
and
set as BI-AMP for 100Hz 24dB/oct.
crossover frequency
1+ 1- 1+ 1- 1+ 1-
R
