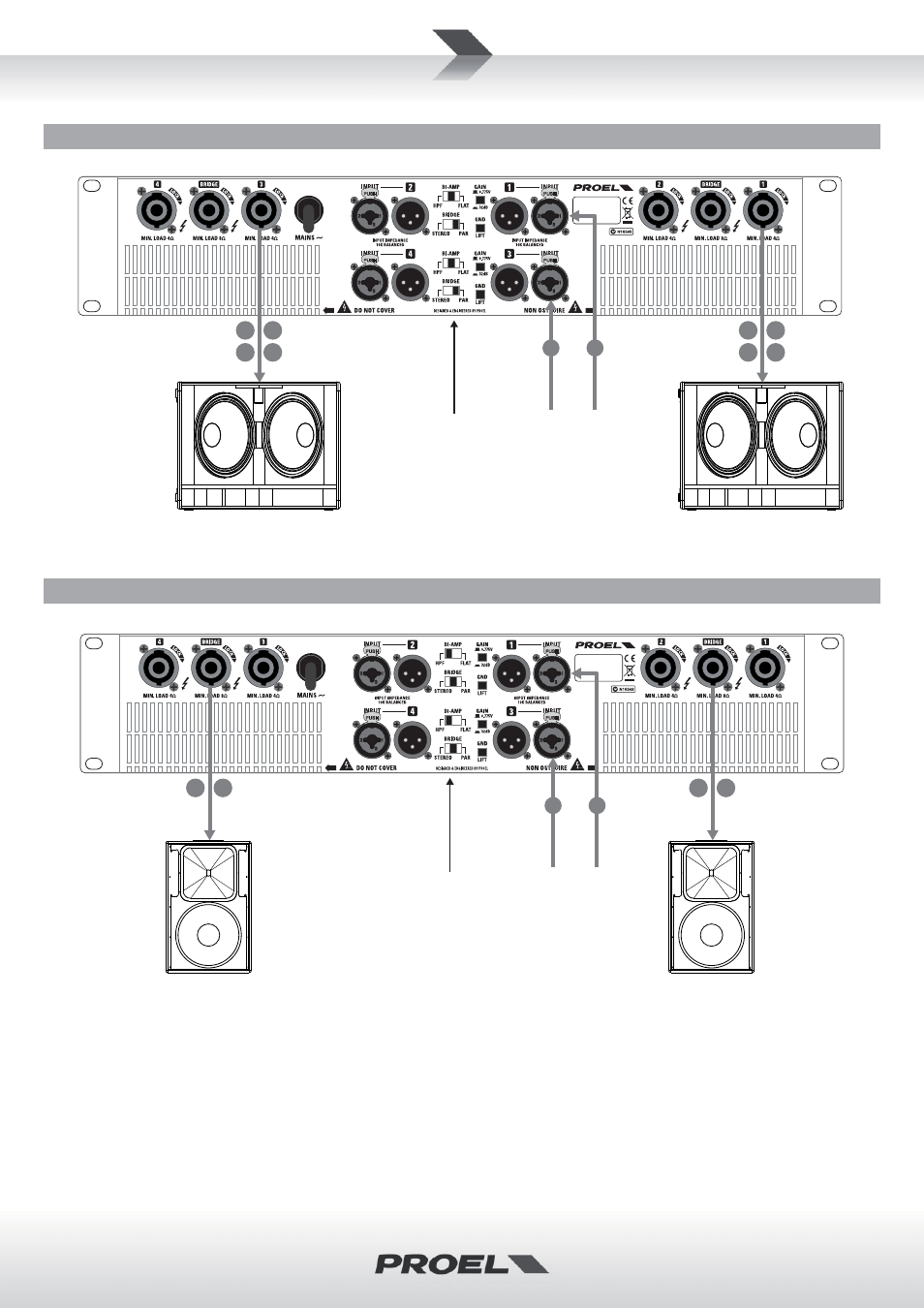

EXAMPLE B ESEMPIO B
EXAMPLE C ESEMPIO C
L
double subwoofer
4Ω + 4Ω minimum
set as PARALLEL for 2 double subwoofer
driven from a L/R audio channels
and
set as BI-AMP for 100Hz 24dB/oct.
low pass filter
1+ 2+
1- 2-
R
woofer 1 woofer 2
double subwoofer
4Ω + 4Ω minimum
1+ 2+
1- 2-
woofer 1 woofer 2
L
1+ 1-
8Ω minimum 8Ω minimum
set as BRIDGE for doubled power for
2 loudspeakers driven from a L/R audio channels
and
set as HPF if used in combina on with
subwoofers or as stage monitors
1+ 1-
R
