5.1 LEVELLING
INSTALLATION
5
Note: Select a location for dishwasher installation close to the water supply and drain connections, and
a power supply point.
•
Before levelling, attach the plastic slides supplied with the manual bag under the dishwasher feet.
•
Once the appliance is in its final position, adjust the metal feet by rotating them in the required
direction to adjust the dishwasher height; once the feet have
been adjusted, tighten the blocking nuts.
•
Proper levelling ensures the appliance functions correctly; max.
error margin = 2 degrees tilt.
BUILT-IN MODELS
The dishwasher can be fitted below worktops and its height can be adjusted to suit various space
requirements. The compartment housing the dishwasher must be at least 600 mm wide and 560 mm
deep.
(Follow the installation instructions that are supplied separately in the document bag)

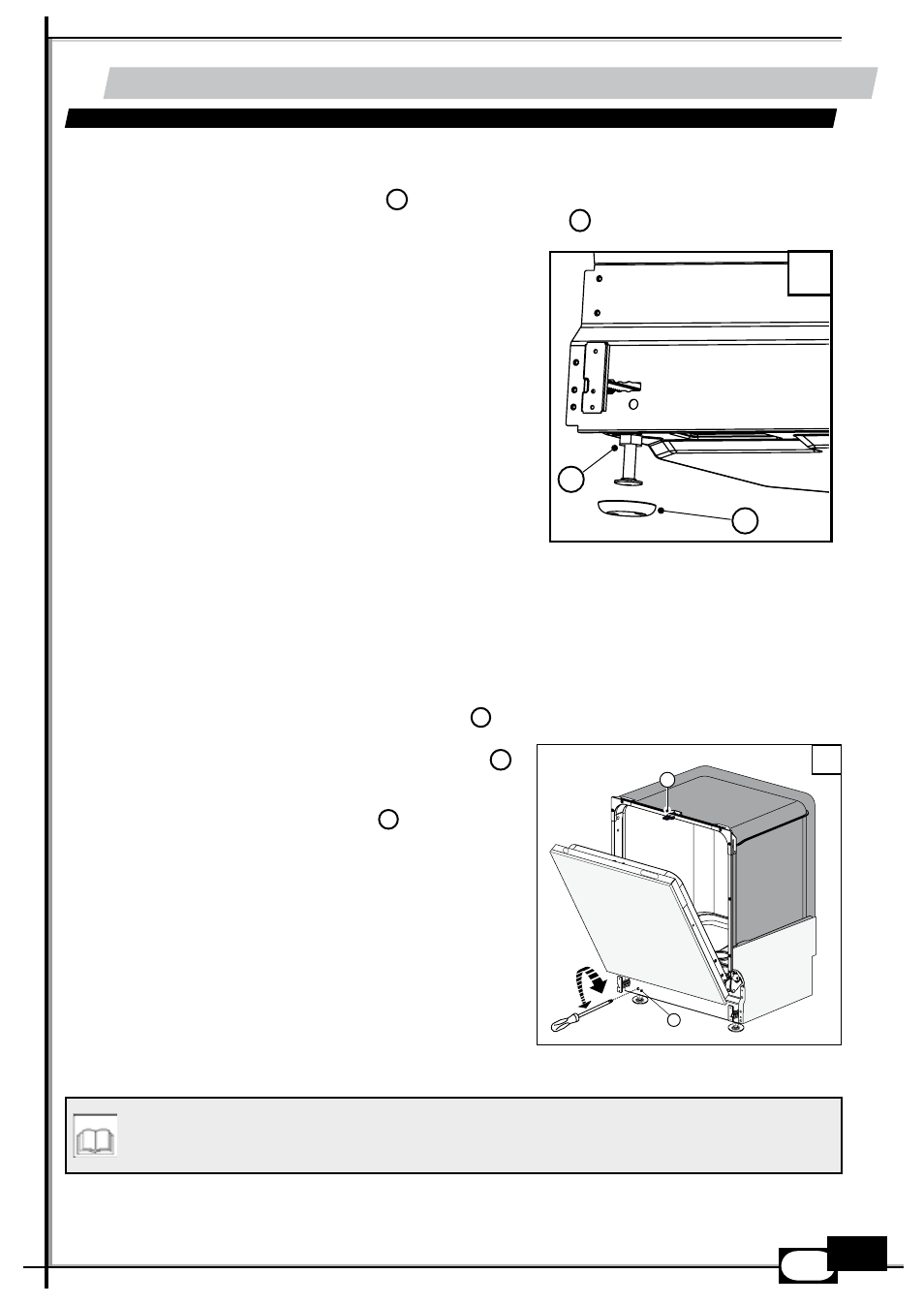

Built-in models with adjustable rear and front feet (fig. 2.1)
Firstly, check the dishwasher height with that of the lower edge
of the worktop. After having mounted the plastic slides ,
carry out an initial adjustment of the front and rear feet, tilt the
dishwasher forward slightly to adjust the rear feet using a slotted
screwdriver to turn the adjustment screw on the front end
of the base (see Fig. 2.1). Position the dishwasher in its place
of installation making sure it adheres to the worktop.
Adjust the feet carefully and tighten the locking nuts of the
front feet.
D
2.1
E
D
After having levelled the dishwasher, adjust the door closing catch (E) until the door
closes perfectly (Fig. 2.1) .
