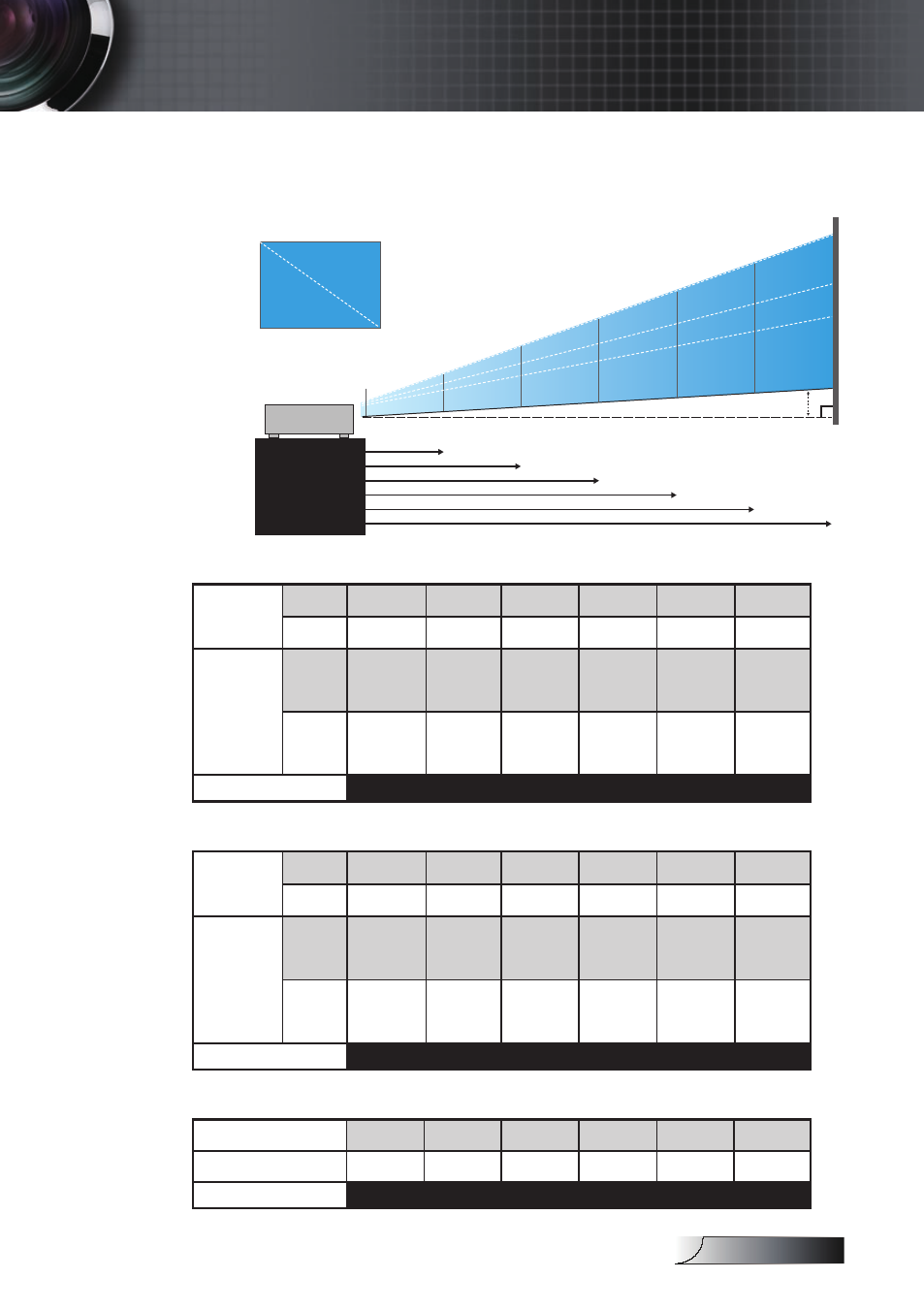

Regolazione delle dimensioni dell’immagine
(XGA)
A
lt
ez
za
Diagonale
Larghezza
Hd
Hd
4,9' (1,50m)
8,9' (2,72m)
14,4' (4,40m)
20,2' (6,16m)
26,2' (8,00m)
32,0' (9,76m)
6,6' (2,00m)
18,4' (5,60m)
30,2' (9,20m)
42,0' (12,80m)
53,8' (16,40m)
65,6' (20,00m)
1,6' (0,50m)
3,3' (1,00m)
4,9' (1,50m)
6,6' (2,00m)
8,2' (2,50m)
9,8' (3,00m)
Obiettivo STD: offset=50%
Schermo
(diagonale)
Max.
46,1’’
(117,2cm)
83,7’’
(212,5cm)
135,3’’
(343,8cm)
189,5’’
(481,3cm)
246,1’’
(625,0cm)
300,2’’
(762,5cm)
Min.
36,9’’
(93,8cm)
66,9’’
(170,0cm)
108,3’’
(275,0cm)
151,6’’
(385,0cm)
196,9’’
(500,0cm)
240,2’’
(610,0cm)
Dimensioni
schermo
Max.
(largh.
x alt.)
36,9’’x27,7’’
93,8x70,3cm
66,9’’x50,2’’
170,0 x127,5cm
108,3’’x81,2’’
275,0 x206,3cm
151,6’’ x113,7’’
385,0 x288,8cm
196,9’’ x147,6’’
500,0 x375,0cm
240,2’’ x180,1’’
610,0 x457,5cm
Min.
(largh.
x alt.)
29,5’’ x22,1’’
75,0 x56,3cm
53,5’’x40,2’’
136,0 x102,0cm
86,6’’x65,0’’
220,0 x165,0cm
121,3’’x90,9’’
308,0 x231,0cm
157,5’’x118,1’’
400,0 x300,0cm
192,1’’ x144,1’’
488,0 x366,0cm
Distanza
4,9’ (1,50m)
8,9’ (2,72m)
14,4’ (4,40m)
20,2’ (6,16m)
26,2’ (8,00m)
32,0’ (9,76m)
Obiettivo lungo: offset=50%
Schermo
(diagonale)
Max.
49,2’’
(125,0cm)
137,8’’
(350,0cm)
226,4’’
(575,0cm)
315,0’’
(800,0cm)
403,5’’
(1025,0cm)
492,1’’
(1250,0cm)
Min.
32,8’’
(83,3cm)
91,9’’
(233,3cm)
150,9’’
(383,3cm)
210,0’’
(533,3cm)
269,0’’
(683,3cm)
328,1’’
(833,3cm)
Dimensioni
schermo
Max.
(largh.
x alt.)
39,4’’x29,5’’
100,0x75,0cm
110,2’’x82,7’’
280,0x210,0cm
181,1’’x135,8’’
460,0x345,0cm
252,0’’x189,0’’
640,0x480,0cm
322,8’’x242,1’’
820,0x615,0cm
393,7’’x295,3’’
1000,0x750,0cm
Min.
(largh.
x alt.)
26,2’’x19,7’’
66,7x50,0cm
73,5’’x55,1’’
186,7x140,0cm
120,7’’x90,6’’
306,7x230,0cm
168,0’’x126,0’’
426,7x320,0cm
215,2’’x161,4’’
546,7x410,0cm
262,5’’x196,9’’
666,7x500,0cm
Distanza
6,6’(2,00m)
18,4’(5,60m)
30,2’(9,20m)
42,0’(12,80m)
53,8’(16,40m)
65,6’(20,00m)
Obiettivo corto: offset=50%
Schermo (diagonale)
30,8’’
(78,1cm)
61,5’’
(156,3cm)
92,3’’
(234,4cm)
123,0’’
(312,5cm)
153,8’’
(390,6cm)
184,5’’
(468,8cm)
Dimensioni schermo
24,6’’x18,5’’
62,5x46,9cm
49,2’’x36,9’’
125,0x93,8cm
73,8’’x55,4’’
187,5x140,6cm
98,4’’x73,8’’
250,0x187,5cm
123,0’’x92,3’’
312,5x234,4cm
147,6’’x110,7’’
375,0x281,3cm
Distanza
1,6’ (0,50m)
3,3’ (1,00m)
4,9’ (1,50m)
6,6’ (2,00m)
8,2’ (2,50m)
9,8’ (3,00m)
