LOW IMPEDANCE OUTPUT (4 Ω )
- The loudspeaker total impedance shall not be lower than 4 Ω .
n
ote
:
a total impedance equal to
4 Ω allows the amplifier maximum power delivery
. a
higher
impedance leads to a reduction of the power delivered By the amplifier
(
e
.
g
. 8 Ω :
approx
. ½
power
,
16 Ω :
approx
. ¼
power
). a
n impedance lower than
4 Ω overloads the amplifier
.
- Loudspeaker models shall be chosen by considering the max. power (UP 2082: 80 W on
4
Ω load, UP 2162: 160 W on a 4 Ω load) that the amplifier can deliver.
- Loudspeaker line should be as short as possible; long cables may need large wire
cross-sections.
- Do not use, at the same time, both the low impedance output (4 Ω ) and the constant
voltage output (100V or 70V), as this overloads the amplifier.
100 / 70 V CONSTANT VOLTAGE OUTPUTS
- Each loudspeaker shall have a line transformer with the
input voltage equal to the line voltage (100 / 70 V).
- The loudspeaker total power shall not be higher than
the amplifier maximum power (UP 2082: 80 W,
UP 2162: 160 W).
Use 1 output only (either 100 V or 70 V or 4 Ω ) per amplifier (‘channel’)!

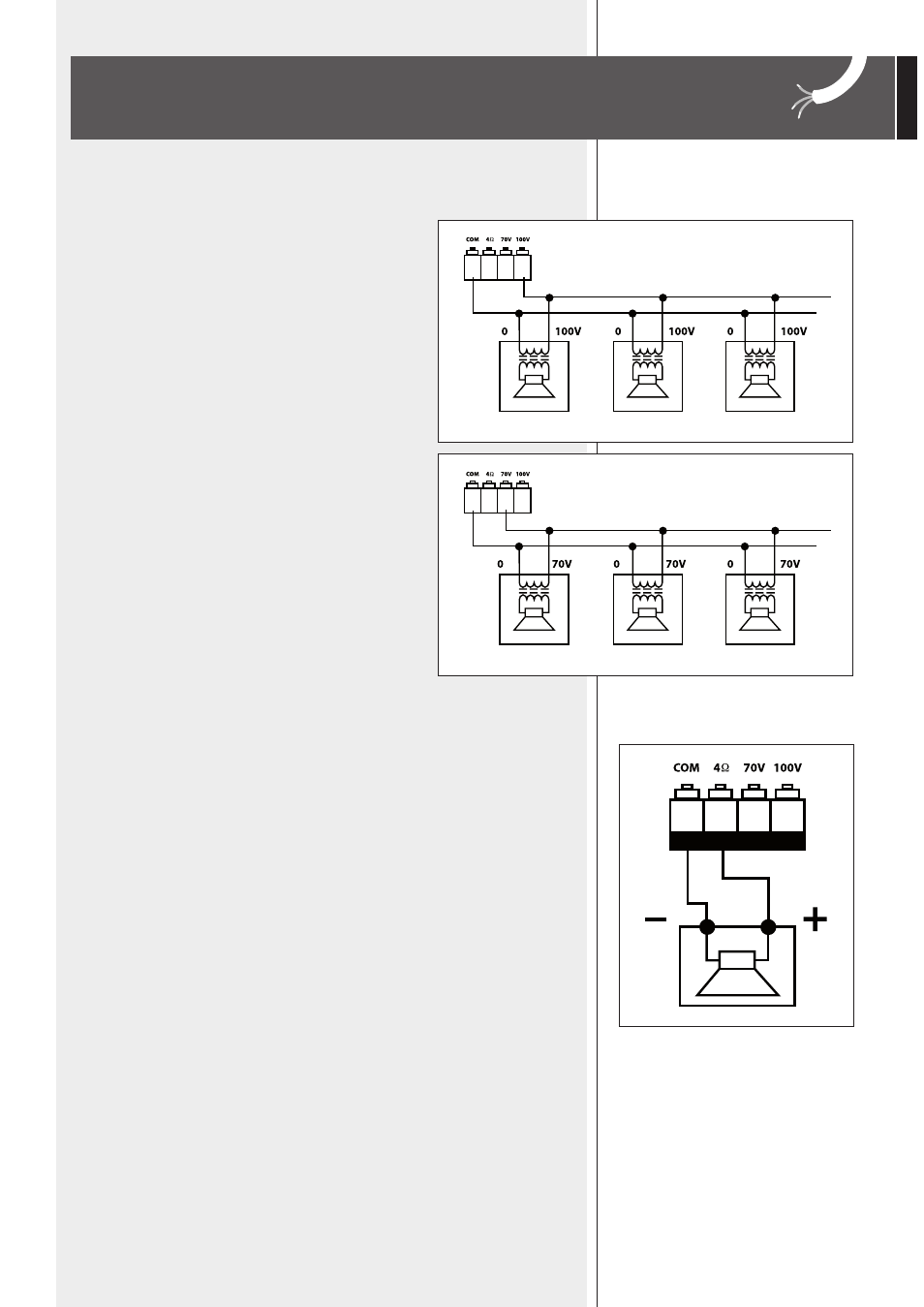

LOUDSPEAKER CONNECTION
70 V
100 V
