IMPORTANT: T
hIs MANuAl secTION cONceRNs quAlIfIed PeRsONNel ONly
.
T
he fOllOwINg INsTRucTIONs ARe TO be IgNORed by useRs
.
Make sure the device is not connected to the mains (unplug the power cable).
Remove the lid.
Inside there are 2 identical amplifiers:
the voltage change must be applied to both.

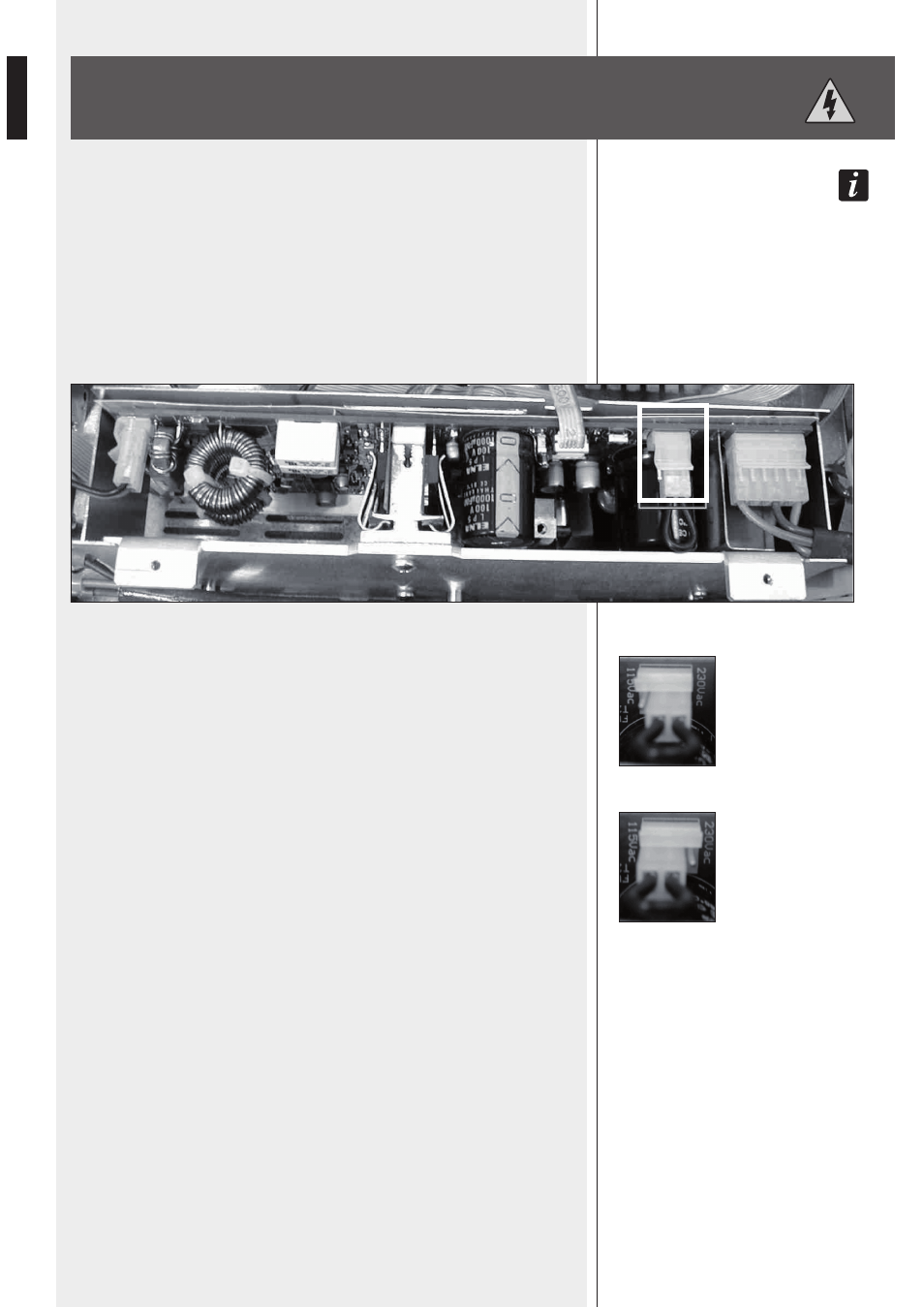

In the picture 1, the voltage change connector is highlighted by a square.
If the mains voltage is 230 V, set the connector to the 230Vac position (see the picture 2),
according to the PCB indication (looking at the connector front, the central pin is connected
to the right one).
If the mains voltage is 115 V, set the connector to the 115 Vac position (see the picture 3),
according to the PCB indication (looking at the connector front, the central pin is connected
to the left one).
Refit the device lid.
Before connecting the device to the mains, make sure that both the fuses
r
,
t
are the
correct current rating for the mains voltage (read the indication on the rear panel, below
the fuse A
t ).
PICTURE 1
PICTURE 2
PICTURE 3
POWER SUPPLY VOLTAGE CHANGE
IMPORTANT
