Adjusting the Vertical Mounting Rails
or Cable Management Rails
The Mounting Rail Depth can be adjusted from 2.76” (70 mm)
to 30.51” (775 mm).
Note: Follow the steps below to adjust the depth of the
Mounting Rails .
1.
Each Mounting Rail has two M6 Screws and two Cage Nuts
securing the Mounting Rail to two Depth Adjustment
Rails . One M6 Screw and Cage Nut is located at the top and
one M6 Screw and Cage Nut is located at the bottom of the
Mounting Rail .
2.
Using a Phillips Head Screwdriver , remove the two M6
Screws from the Cage Nuts on the Mounting Rail .

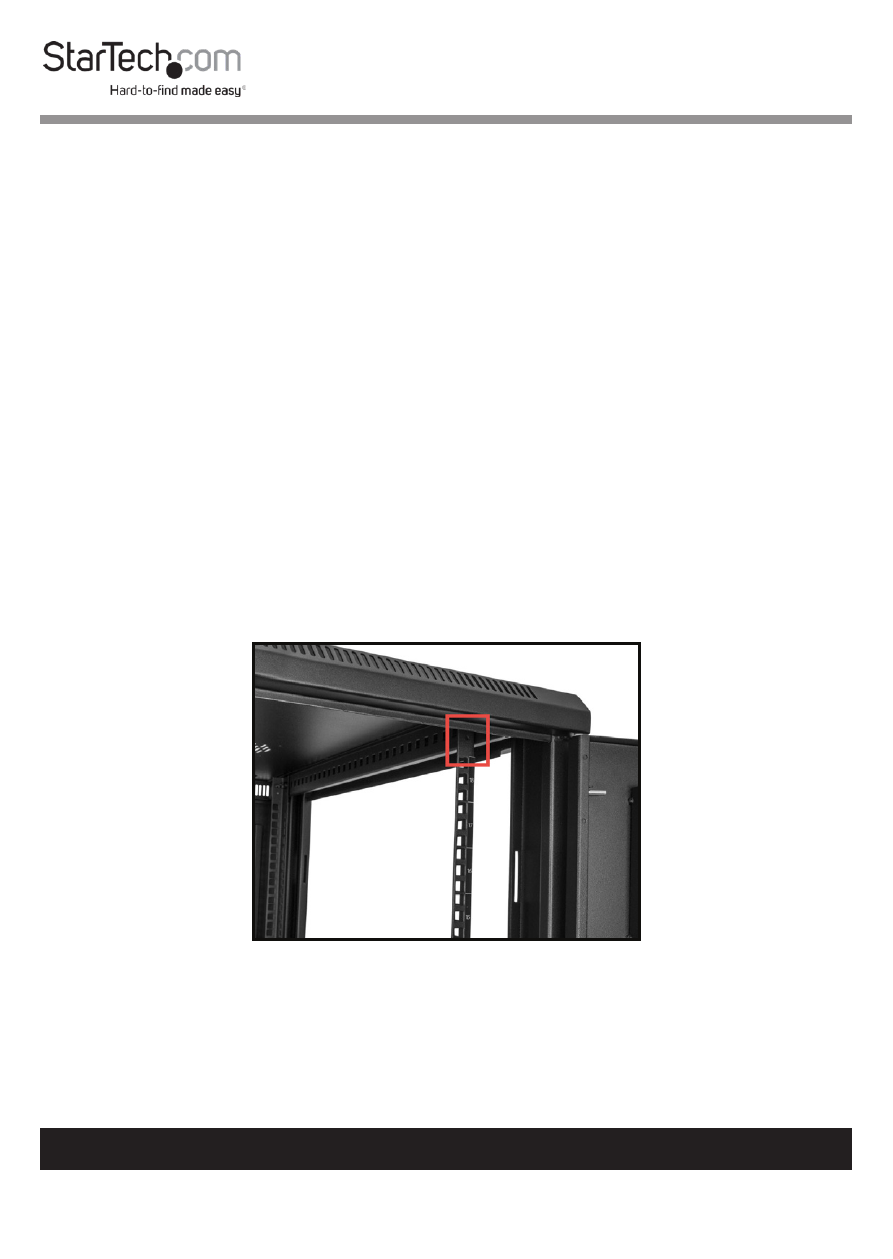

Removing the M6 Screw
3.
Slide the Mounting Rail to access the Cage Nuts .
