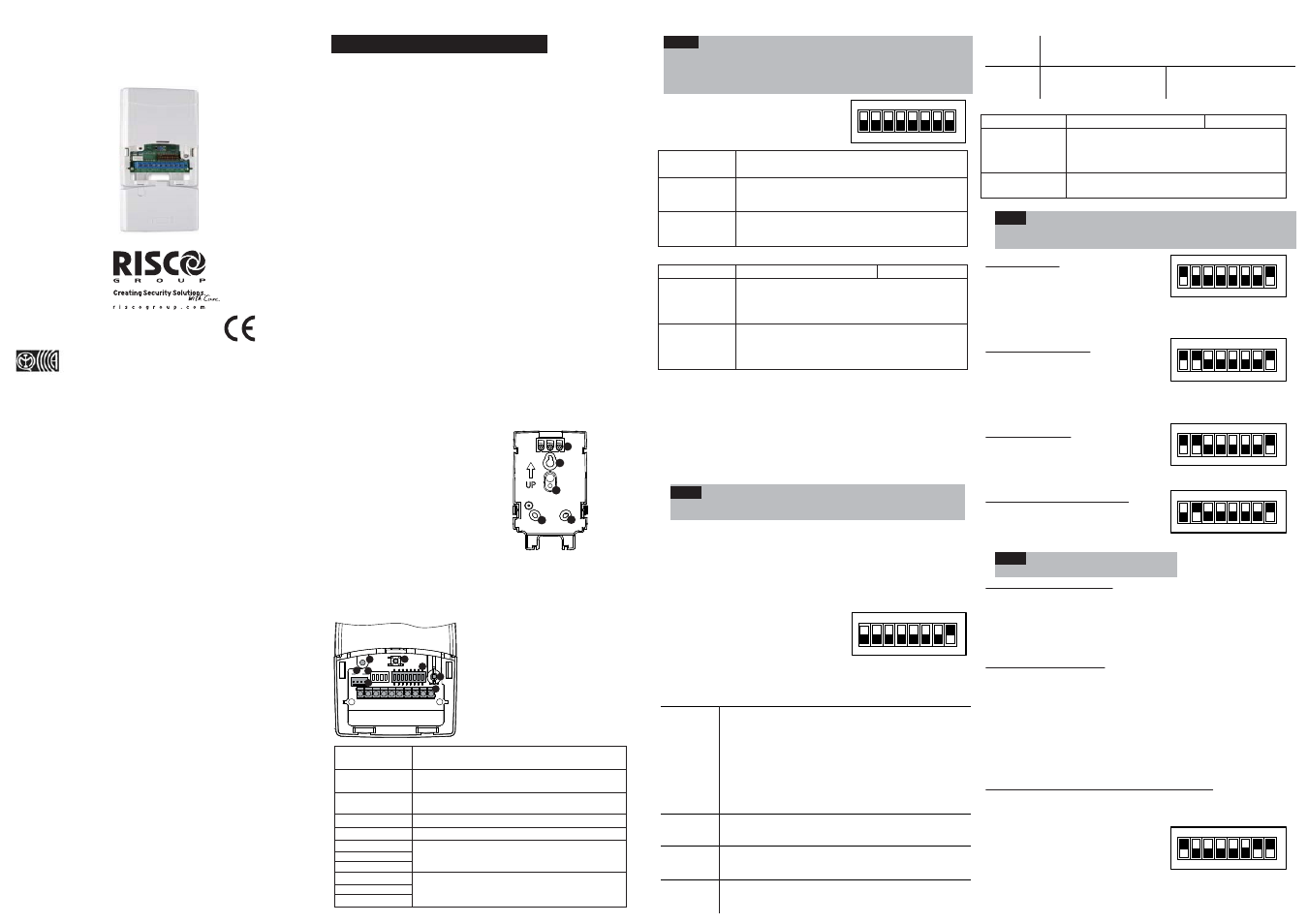

Introduction
The LightSYS 2-Way Wireless Expander is a Àexible unit that can be
used either as a wireless expander when connected to the LightSYS
security panel or as a stand-alone receiver, with support for up to 200
keyfobs and 2 outputs.
Main features
ySupport for RISCO’s range of 2-Way wireless sounders,
slim keypads, 8-button keyfobs and detectors
yUp to 4 2-Way wireless slim keypads
yUp to 32 supervised wireless zones (bus mode)
yUp to 16 multi-function keyfobs (bus mode)
yUp to 200 stand alone keyfobs (bus and stand-alone modes)
yTwo utility outputs
yRolling code technology
ySignal jamming detection
yThreshold-level calibration
yTamper detection
yTransmitter supervision low battery detection
yNominal center frequency: 868.65 MHz or 433.92 MHz
yCan be installed inside or outside the LightSYS main enclosure
yUp to two WL Expanders per LightSYS system
Installation
The WL Expander can be mounted as a separate unit with its own plastic
housing or as PCB inside the LightSYS main polycarbonate enclosure. For
mounting the expander inside the LightSYS enclosure refer to the LightSYS
installation manual.
Mounting considerations
When installed in its plastic housing:
y Do not install the WL Expander close to metal objects and RF
generating devices such as TV sets or computers.
y Mount the expander at a height of at least 1.5 m (5 ft) above the Àoor.
y Mount the expander relatively close and central to the transmitter
locations.
Wall Mounting
Figure 1 – Rear Panel
1. Screw cap
2. Upper mounting hole
3. Lower mounting holes (optional)
4. Wall tamper hole
1. Separate the mounting bracket from the main unit.
2. Use the mounting bracket as a marking template.
3. Tear off screw caps, as needed for covering front screw hole.
4. Mount the bracket to the wall.
Wiring the WL Expander
Figure 2 – WL Expander Layout (Cover Off)
1. Optional screw hole (used to fasten
front and back covers)
2. Red LED
3. Green LED
4. Prog button
5. DIP switch
6. Box tamper
7. Bus Connector
8. Terminal block
1
2
3 3
4
Terminal Description
(left to right)
AUX Red +13.8V power VDC. (In bus connection, connect
to AUX on the LightSYS)
Com BLK Black 0V common. (In bus connection, connect to
COM on the LightSYS)
BUS YEL
Data bus connection (Not for SA mode)
BUS GRN Data bus connection (Not for SA mode)
Relay 1 N.O.
12VDC @ 1A max Dry Contact Relays Relay 1 COM
Relay 1 N.C.
Relay 2 N.O.
12VDC @ 1A max Dry Contact Relays Relay 2 COM
Relay 2 N.C.
Bus Mode
(SW8 in OFF position)
Dipswitch Settings
SW1- SW3 Three switches to set ID of the WL Expander.
SW4 – SW6 Three switches to set ID of the output expander.
SW7
UO expander Enable/Disable
Off: Disable
On: Enable
SW8 Operational mod
Off: Bus mode
On: Stand-alone mode
LEDs Indication
LED Condition Description
Power / Bus Bus communication between the LightSYS and
Communication the WL Expander
(RED) Steady: Bus Communication OK
Flash: In Prog Mode OR Bus Communication trouble
WL Comm Communication between a WL device and the
(GREEN) WL Expander
Steady: Bus Communication OK
Flash: Bus Communication trouble
Notes:
1. The maximum wire run permitted is 300 meters (1,000 feet) for the
total bus wiring regardless of the wiring gauge used.
2. When closing the cover use a screw cap located on the rear side
to cover the closing screw
Programming Steps in the LightSYS
The following instructions de ¿ne the main programming steps for
performing wireless expansion to the LightSYS using the expander.
Two expanders can be allocated to the LightSYS. For full program-
ming instructions refer to the LightSYS full installation manual.
1. De
¿ne the expander ID using switches [1]-[3]. The expander ID is
set to 1 by default
2. De
¿ne the output expander ID using switches [4]-[6]
3. Allocate the WL expander to the system (Programming menu
- Quick key [7 > 1 > 2 > 05]
Note:
I f the WL Expander is installed inside the LightSYS enclosure the
Bypass Tamper must be de ¿ned as Yes
4. Allocate the relay outputs of the expander as an output expander
(UO02) to the system (Programming menu - Quick key [7 > 1 > 2 > 03]
5. Calibrate the expander (Programming menu - Quick key [7 > 2 > 1])
6. Allocate wireless device (Programming menu - Quick key [7 > 2 > 2])
7. Perform communication test between the expander and the device
(Main menu > Maintenance> Wireless Test)
8. Set the WL device parameters (Zones: Quick key 2 > 1,
Keyfobs - Quick key 8 > 2) and the outputs parameters (Quick key 3)
Stand Alone Mode
(SW8 in ON position)
When the expander is set to Stand Alone mode it can support 200
keyfobs that can control its 2 outputs. Each output is controlled by a
dedicated button.
Dipswitch Settings
S W1 + SW2 Receiver operation mode:
SW1 SW2 Mode
OFF OFF Normal mode
ON OFF Program mode
OFF ON Restore to manufacturer
settings
ON ON Delete keyfobs
SW3 Relay 1 / 2
Off: Relay 1
On: Relay 2
SW4 Used to de ¿ne the Relays operation
Off: Pulsed
On: Latched
SW5 Setting pulse duration
Off: Pulsed counter is off
On: Pulsed counter is on
SW6 Relay Fail secure / Relay fail safe
Off: Fail secure: Relay will not change state while power is lost
On: Fail safe: Relay will change state while power is lost.
1 2 3 4 5 6 7 8
ON
SW7 Changing output keys control in the keyfobs
Off: Changing UO process in disabled
On: Changing UO process in activated
SW8* Receiver mode * Receiver mode
Off: Bus mode changes only after
On: Stand alone mode powering the receiver
Leds Indication
LED Condition Description
Power / Bus Receiver mode
Communication Steady on: Normal mode
(RED) Slow flash: Learn mode = assign device
Quick flash: Delete mode
WL Comm One Pulse: Con ¿rmation during program mode
(GREEN) Flash: In communication
Programming
Note:
To switch from bus mode to stand-alone mode, unplug the system,
set SW8 ON, then plug-in again.
Enrolling Keyfobs
1. Set SW1 ON, SW2 OFF.
2. Press Prog button shortly.
Red LED
Àashes slowly.
3. Press the keyfob ± key. Green LED lights steadily for con ¿rmation.
4. Repeat steps 2-3 to assign additional keyfobs.
5. Press Prog to exit this mode.
Deleting A Single Keyfob
1. Set SW1 and SW2 ON.
2. Press Prog button shortly.
Red LED
Àashes slowly.
3. Press the keyfob ± key. The Green LED lights steadily for
con ¿rmation.
4. Repeat steps 2-3 to delete additional keyfobs.
Deleting All Keyfobs
1. Set SW1 and SW2 ON.
2. Press Prog button for 5 seconds.
Red LED lights steadily.
3. When
¿nished, Green LED lights steadily for con¿rmation.
Restoring to manufacturer default
1. Set SW1 OFF, SW2 ON.
2. Press Prog button shortly.
Red LED
Àashes slowly.
3. When ¿nished, green LED lights steadily for con¿rmation.
Note:
No wireless accessories will be erased.
Setting Relay Pulsed / Latched
1. Set SW1 ON, SW2 OFF.
2. Using SW3 select relay 1 (OFF) or relay 2 (ON).
3. Using SW4 select latched (ON) or pulsed (OFF).
4. Press Prog button for 5 seconds to change relay status. Green
LED lights steadily for con
¿rmation.
5. Repeat steps 2-4 for the second relay.
Setting Relay Pulse Duration
1. Set SW1 ON, SW2 OFF.
2. Using SW3 select relay 1 (OFF) or relay 2 (ON).
3. Set SW4 OFF (pulsed).
4. Set SW5 ON. The system is ready to start a counter for a pulse
(5 minutes maximum).
5. Press Prog button to start the timer. Red LED
Àashes slowly.
6. Press Prog button again to stop the timer. Green LED lights
steadily for con
¿rmation.
7. Set SW5 Off.
8. Repeat steps 4-7 for the other relay.
Changing Buttons for Outputs on the 4-Button Keyfob
By default, button 3 (small round key) of the keyfob controls output 1
and button 4 (egg shape) controls output 2. This can be changed for
all the keyfobs that are already assigned to the WL Expander.
1. Set SW1 ON, SW2 OFF.
2. Set SW7 On.
3. Press Prog button for 5 seconds.
Red LED lights steadily.
4. This will replace button 3 to button 1 and button 4 to button 2.
Green LED lights steadily for con
¿rmation.
5. Set SW7 Off.
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
ENGLISH
5 3
1 4
5
5 6
8
7
2
Model / Modello: RP432EW8
2-Way Wireless Expander
Espansione Radio Bidirezionale
© RISCO Group 12/2014 5IN1424 D
Complies with: EN 50131-3; EN 50131-5-3
Grade 2 Class II
RISCO Group Limited Warranty
RISCO Group and its subsidiaries and af ¿liates ("Seller") warrants its products to
be free from defects in materials and workmanship under normal use for 24
months from the date of production. Because Seller does not install or connect the
product and because the product may be used in conjunction with products not
manufactured by the Seller, Seller cannot guarantee the performance of the
security system which uses this product. Seller's obligation and liability under this
warranty is expressly limited to repairing and replacing, at Seller's option, within a
reasonable time after the date of delivery, any product not meeting the
speci
¿cations. Seller makes no other warranty, expressed or implied, and makes
no warranty of merchantability or of ¿tness for any particular purpose.
In no case shall seller be liable for any consequential or incidental damages for
breach of this or any other warranty, expressed or implied, or upon any other basis
of liability whatsoever.
Seller's obligation under this warranty shall not include any transportation charges
or costs of installation or any liability for direct, indirect, or consequential damages
or delay.
Seller does not represent that its product may not be compromised or
circumvented; that the product will prevent any personal injury or property loss by
burglary, robbery,
¿re or otherwise; or that the product will in all cases provide
adequate warning or protection. Buyer understands that a properly installed and
maintained alarm may only reduce the risk of burglary, robbery or
¿re without
warning, but is not insurance or a guarantee that such event will not occur or that
there will be no personal injury or property loss as a result thereof.
Consequently seller shall have no liability for any personal injury, property
damage or loss based on a claim that the product fails to give warning. However,
if seller is held liable, whether directly or indirectly, for any loss or damage arising
under this limited warranty or otherwise, regardless of cause or origin, seller's
maximum liability shall not exceed the purchase price of the product, which shall
be complete and exclusive remedy against seller.
No employee or representative of Seller is authorized to change this warranty in
any way or grant any other warranty.
WARNING: This product should be tested at least once a week.
UK Tel: 44-(0)-161-655-5500
[email protected]
ITALY Tel: +39-02-66590054
[email protected]
SPAIN Tel: +34-91-490-2133
[email protected]
FRANCE Tel: +33-164-73-28-50
[email protected]
BELGIUM Tel: +32-2522-7622
[email protected]
U.S.A Tel: +1-631-719-4400
[email protected]
RISCO Group Contacting Info
RISCO Group is committed to customer service and product support. You can
contact us through our website (www.riscogroup.com) or at the following
telephone numbers:
BRAZIL Tel: +55-11-3661-8767
[email protected]
CHINA (Shanghai)
Tel: +86-21-52-39-0066
[email protected]
CHINA (Shenzhen)
Tel: +86-755-82789285
[email protected]
POLAND Tel: +48-22-500-28-40
[email protected]
ISRAEL Tel: +972-3-963-7777
[email protected]
RISCO Group
14 Hachoma st.
Rishon LeZion
ISRAEL
RTTE Compliance Statement:
Hereby, RISCO Group declares that this equipment is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC. For the CE
Declaration of Conformity please refer to our website: www.riscogroup.com.
