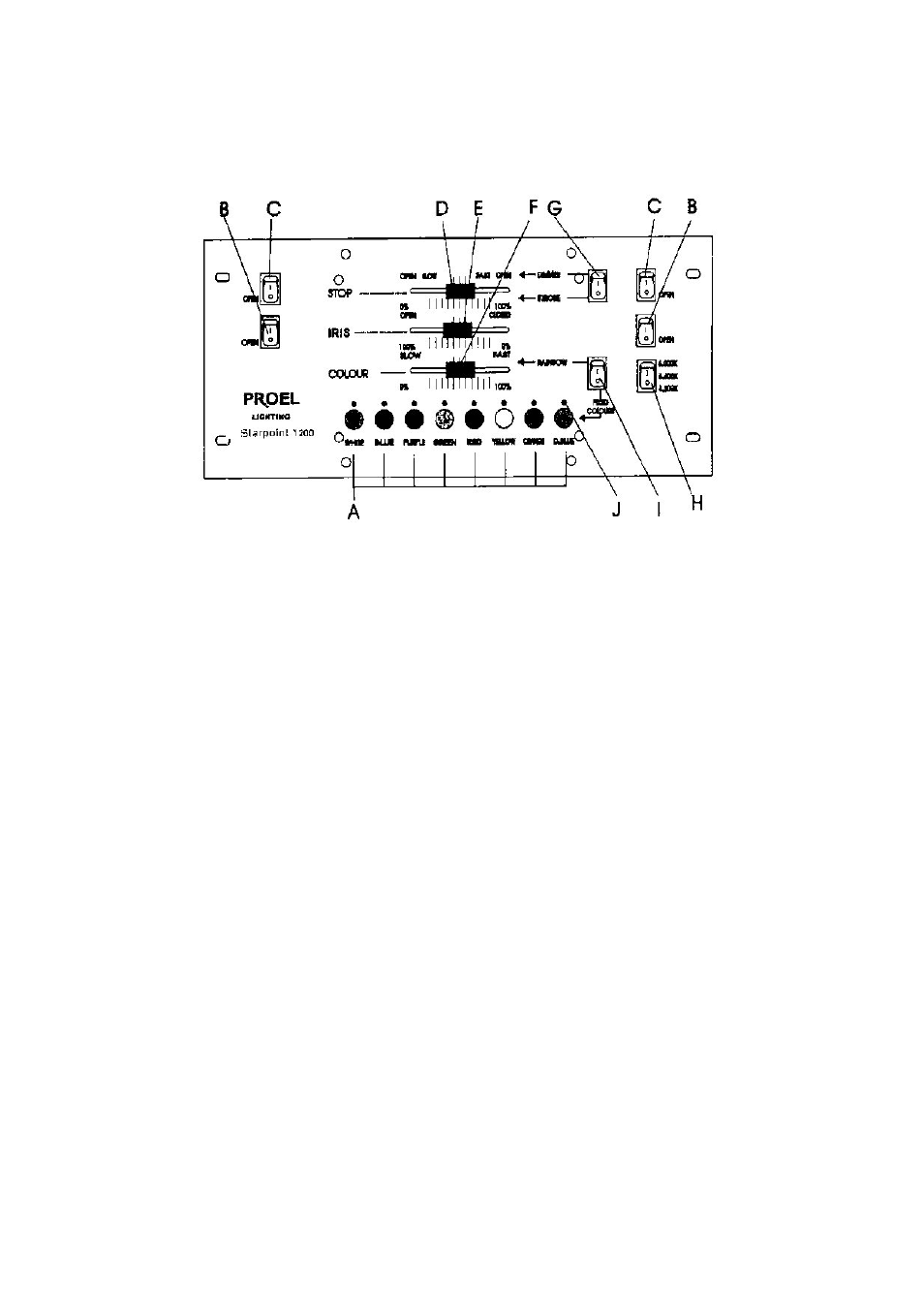

PANEL SKETCH MAP OF THE BUTTON
A: When the button is in FIXED COLOURS position, 8 colours are activated under the control of 8 round buttons.
B: Aperture size switch (to change the aperture size to maximum and the minimum).
C: Lens hood (door) to switch between shutting off and letting in light.
D: Flash speed or light spot lightness adjustment potentiometer. Its function status is related to key G.
E: Aperture (spot) size adjustment potentiometer.
F: Color adjustment potentiometer. When key I is in position RAINBOW, the continuous color change and speed is subject to the
control of this potentiometer.
G: Flash status and light adjustment status switch.
H: Color temperature switch. When it is in a status other than 5600K, the two round color buttons of ORANGE and D.BLUE are
deactivated.
I: Continuous color change speed adjustment / skip-over to the next color switch.
J: Color change indicator.
