4. EXSPANDER LINK IN
Connect this input to one of the 4 CONFD ouputs using the cable provided (fig. 2, ref. 2)
5. EXSPANDER LINK OUT
Connect this output to the next expansion unit input using the provided cable (fig. 8, ref. 4). There is no limit
to the number of expansion units that can be connected, yet the total number of manageable microphone
stations must not exceed 254.
10. EXPANSION UNIT CONNECTION

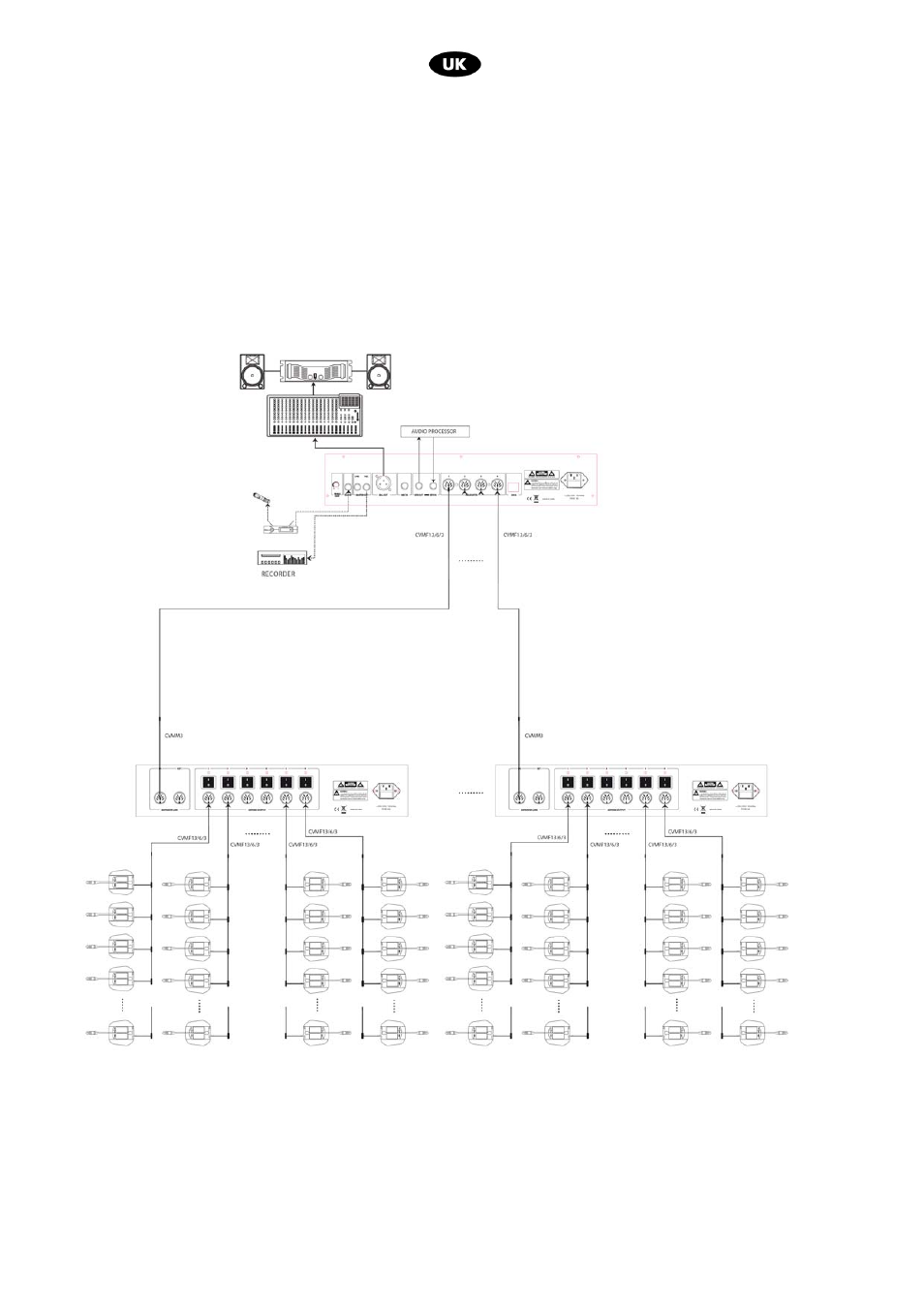

Method 1:
fig.9
Nota:
Note:
Be sure to keep the shortest possible distance between the central unit and the last microphone. For long distances
we advise opting for method 1.
