Proel BMCD - Manuale (Pagina 21)

21
5. DISPLAY
6. MIC
Sets the audio level of any dynamic microphone connected to MIC IN (fig. 2 – ref. 6)
7. AUX
Sets the audio level of any audio source (wireless microphone, CD player, etc.) connected to AUX IN (figure 2
– ref. 7)
8. MONITOR
Sets the audio level of the monitor speaker on board the main unit
9. MASTER
Sets the level on MASTER OUT (figure 2 ref. 4, 5 )
10. UNIT VOL
Sets the audio level of the monitoring loudspeaker of the stations
(figure 3 – ref. 5 )
4. REAR PANEL FUNCTIONS AND CONTROLS - CONFD

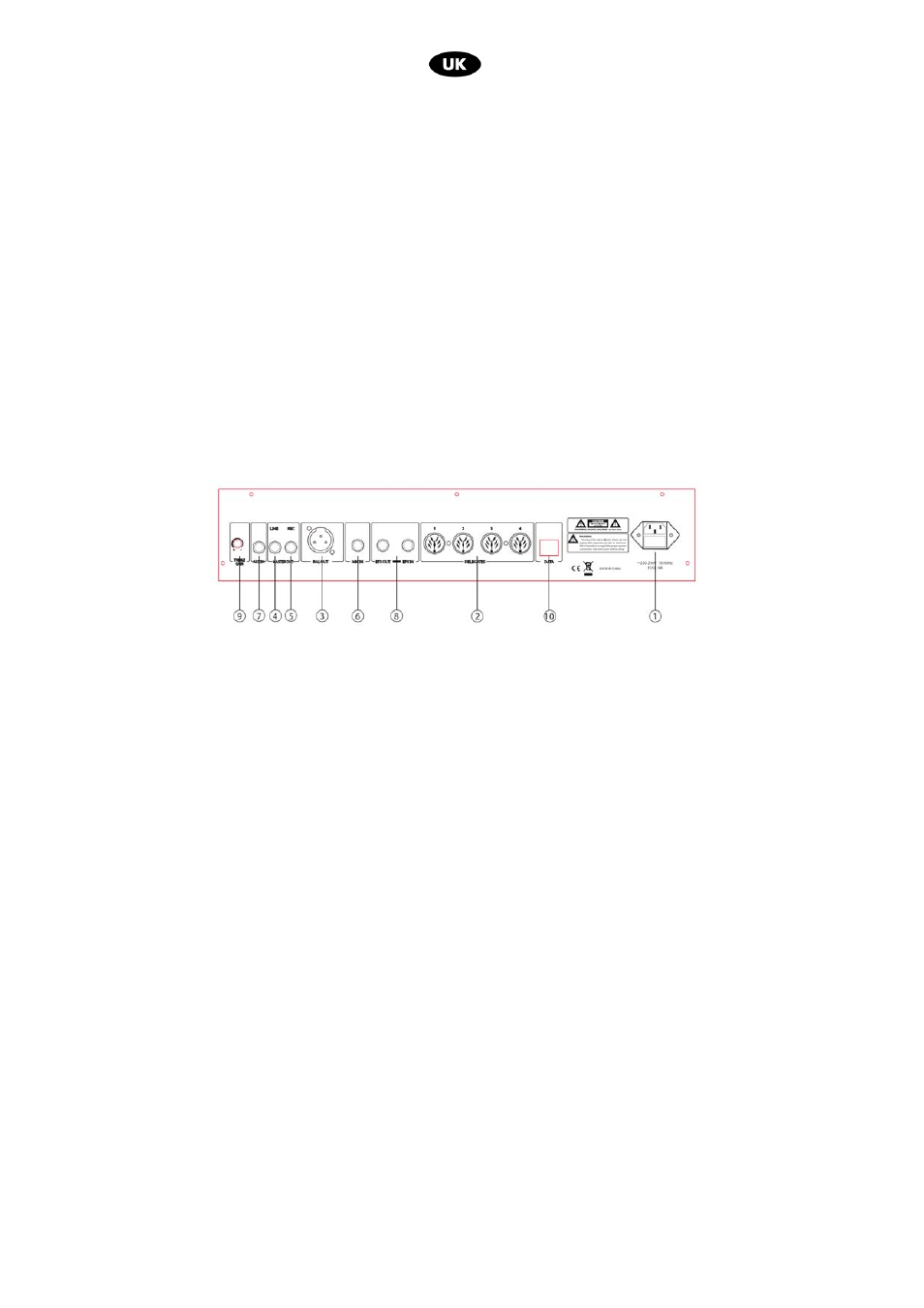

fig.2
1. INGRESSO ALIMENTAZIONE DI RETE
Collegare l’unità principale alla rete 230Vac 50/60Hz.
Alloggio per fusibile da 8 A.
Nota: nella versione 117V la tensione di riferimento è 117Vac 50/60Hz
2. BASES
N° 4 input per President/Speaker unit. Up to 30 units can be connected to each line (do not exceed this
quantity), or up to 64 units total
3. BAL OUT
Balanced signal output (male XLR3)
Connect mixer or amplifier to this output
4. MASTER OUT LINE
Unbalanced line level output
5. MASTER OUT REG
Recording output (RCA). To record a conference, connect a recorder to this output
6. MIC IN
Microphone input (TRS Jack 6,3 mm)
7. AUX IN
Line level input (RCA). Connect this input to an audio source such as a CD player, etc.
8. EFXOUT / EFXIN
Balanced insert loop for any signal processor. p (TRS Jack 6,3 mm). Connect EFXOUT to the PROCESSOR
input and the PROCESSOR output to the EFXIN input
9. TREBLE GAIN
Rotate this control counterclockwise to emphasize high frequencies
