Thank you for choosing one of Proel products, and for your confidence towards our brand, synonymous of
professionalism, accuracy, high quality and reliability. All our products comply with CE directives for
continuous use in PA systems.
2. Features
19” rack standard panel for power distribution and audio monitoring, featured with:
• Master magneto-thermal 16A switch, with turn light indicator
• 6-position selector to select 100Vtc output power of the amplifier to be monitored
• 3-position volume selector
• Monitor speaker
• Comply with all reference directives for electrical installation.
3. UNIT DESCRIPTION

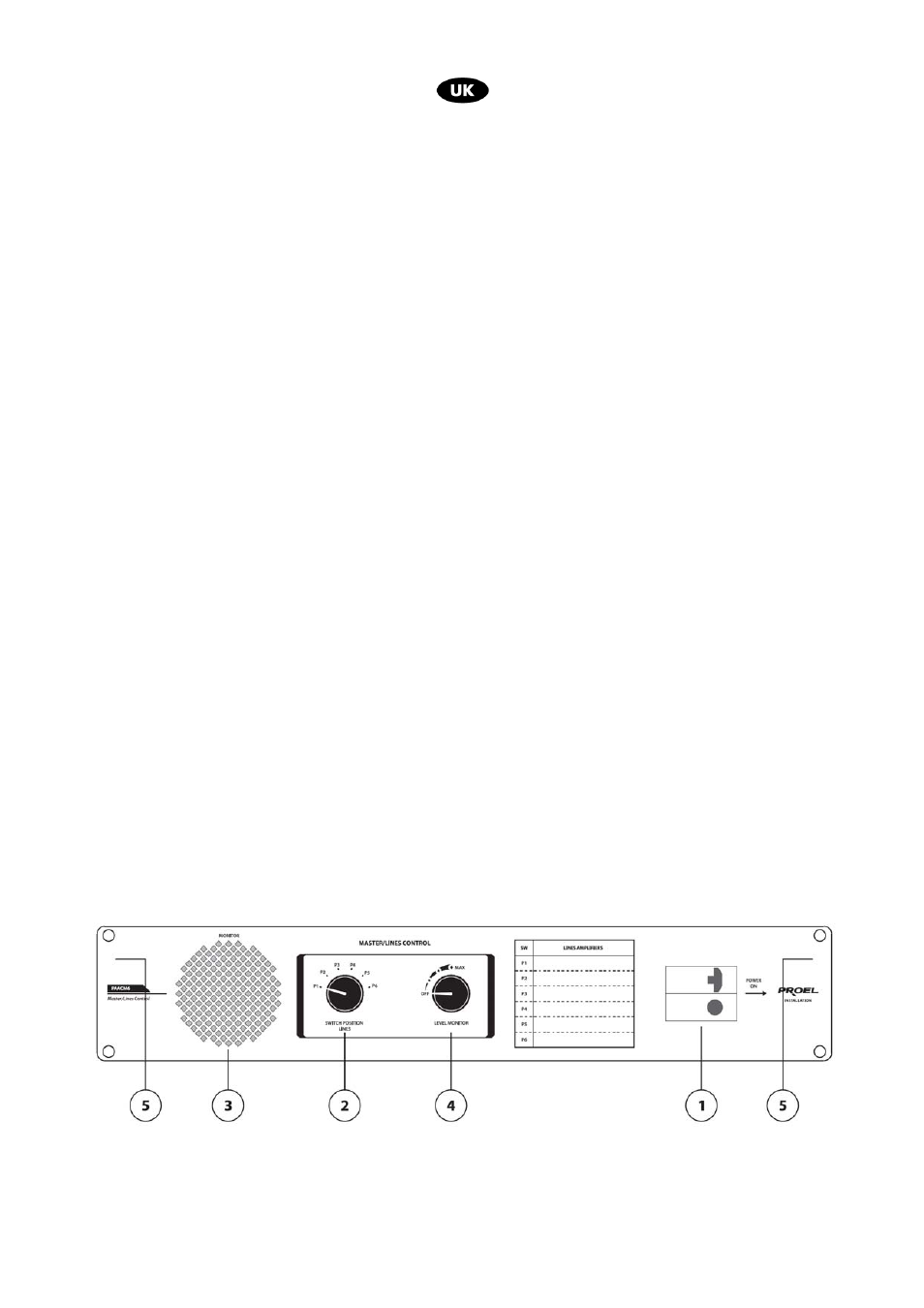

(1) Master magneto-thermal switch with light indicator.
(2) 6-position
switch.
It allows selecting the 100Vtc output signal among one of the 6 amplifiers to be monitored.
(3) Monitor speaker.
(4) Volume knob.
This knob allows you to choose the monitor speaker output volume.
(5) 19” rack mount ears.
(6) 230VAC 50/60Hz mains power input connector.
(7) 230VAC 50/60Hz power output connectors for connected units.
This output is subsequent to main Magneto-thermal switch (1) placed in front panel.
NOTE: both grounding cables (one coming from the main AC power, the other coming from unit to
be feed) should be connected to the yellow/green grounding terminal.
(8) 6 output terminals.
All these 6 terminals are used for 100V lines connections coming from power output of 6 power
amplifiers to be monitored. Suggested cable 2x1,5mm
2
(cod. HPC610FR)
Technical data.
FRONT PANEL
