9. Additional Balanced Output (Audio +, Audio-, GND)
Use this output to drive any additional local amplifier
10. 24 V DC additional connector
Connect the control panel to an additional 24 V DC power supply when the panel is located at a cable run of more than 50
m from the matrix
11. RJ45 Communication Port
The RJ45 port is used to connect the control panel to MATRIX88, which also powers the panel if it is connected to the
Matrix by 50 m or less of CAT5 cable. Connect the MATRIX88 ZONE REMOTE CONTROL to this port. Each remote
control operates exclusively within the audio zone to which it is connected. For example: if you connect ZONE REMOTE
CONTROL 4 it will work only within Zone 4

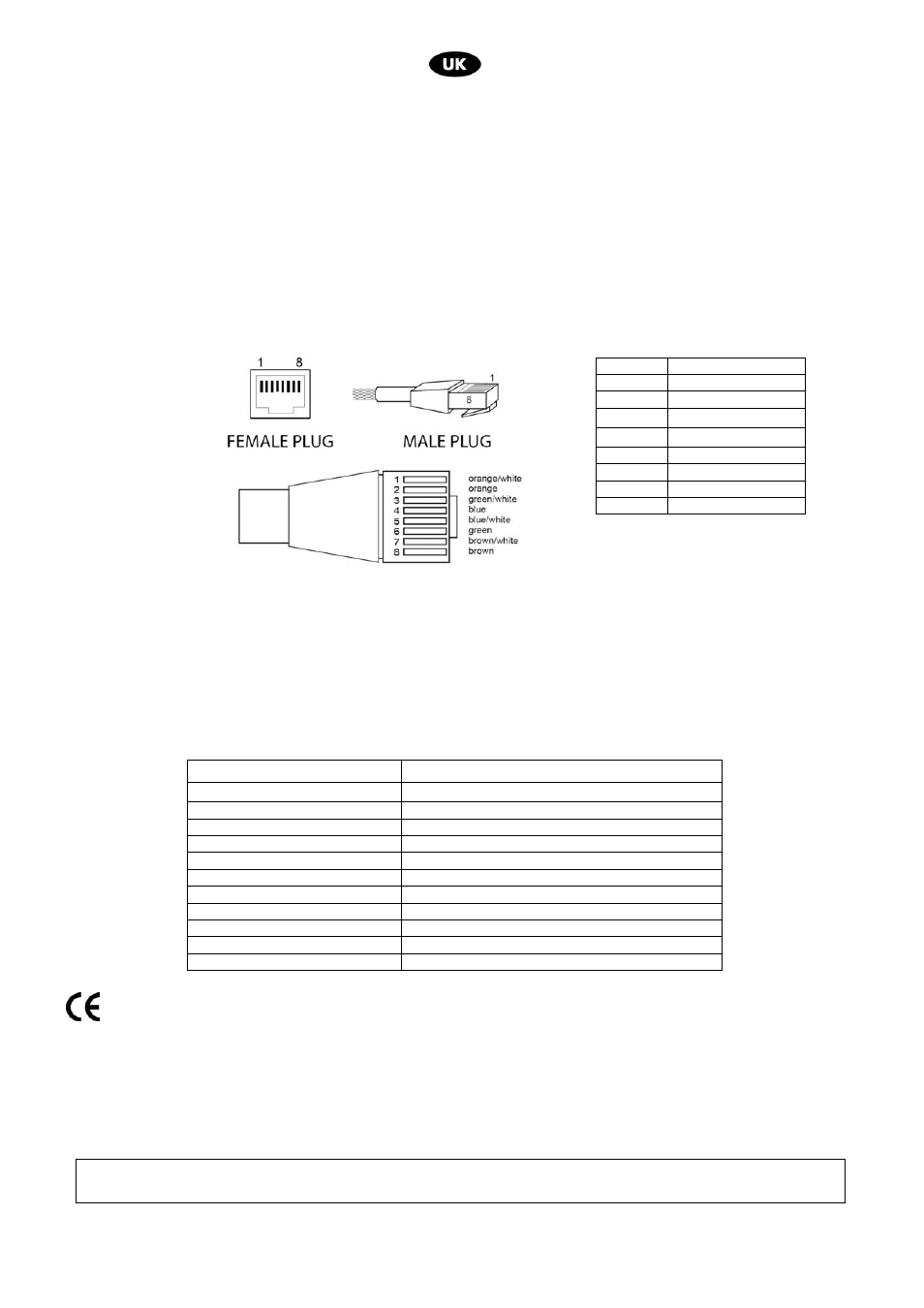

Connection between a UTP CAT5 cable and an RJ45 connector to link a microphone station, according to the
EIA/TIA – 568B standard:
.
fig.2
12. 24 V DC additional connector
Connect the control panel to an additional 24 V DC power supply when the panel is located at a cable run of more than 50
m from the matrix
13. Additional Balanced Output (Audio +, Audio-, GND)
Use this output to drive any additional local amplifier
4. TECHNICAL
FEATURES
MODEL
R88L
Communication Speed
57,600 bpsd
Communication Distance
≤ 1 km (in absence of external interference)
MIC 1&2 Input Sensitivity
10 mV
Frequency Response
50 Hz-18 KHz
Aux Output
775 mV
Signal/Noise Ratio
≥70 dB
THD
1% @ 1 kHz
Power consumption
50 mA
Power Supply
24 V DC
Weight
161 g
Dimensions (L x H x D)
86 x 146 x 33 mm
This product complies with Directive 89/336/EEC (Electromagnetic Compatibility)
and later changes 92/31/EEC and 93/68/EEC, according to the following standards:
EN 50082-1:1997, EN 55013:1990, EN 55020:1994
furthermore, it complies with Directive 73/23/EEC (Low Voltage)
and later changes 93/68/CEE, according to the following standard:
EN 60065:1998
Pin no
Assignment
1
RS485 B
2
RS485 A
3
MUTE
4
GND
5
+24V DC
6
+24V DC
7
AUDIO IN +
8
AUDIO IN -
Proel SpA maintains a policy of constant research and development, therefore we reserve the right to apply improvements to existing
equipment without prior notice. REV. 00 38/11
