Thank you for choosing a Proel product and for trusting our brand, synonymous with professional competence, accuracy,
high quality and reliability. All our products comply with CE regulations governing use of public address systems.
2. DESCRIPTION
PROEL UHF Antenna Splitter is made up of: one 19” rack-mount active antenna splitter and two active antenna
preamplifiers.
The system operates within the UHF band between 798MHz and 827MHz and can power up to four PLLUD single-
channel receivers connected as shown in the detailed diagram.
The True Diversity receiving system, controlled by a microprocessor, constantly guarantees ultimate signal reception.
The 19” rack-mountable receiver features outstanding advanced specifications and performances which ensure high
quality in any applications.
3. FUNCTIONS AND CONTROLS
Front Panel:

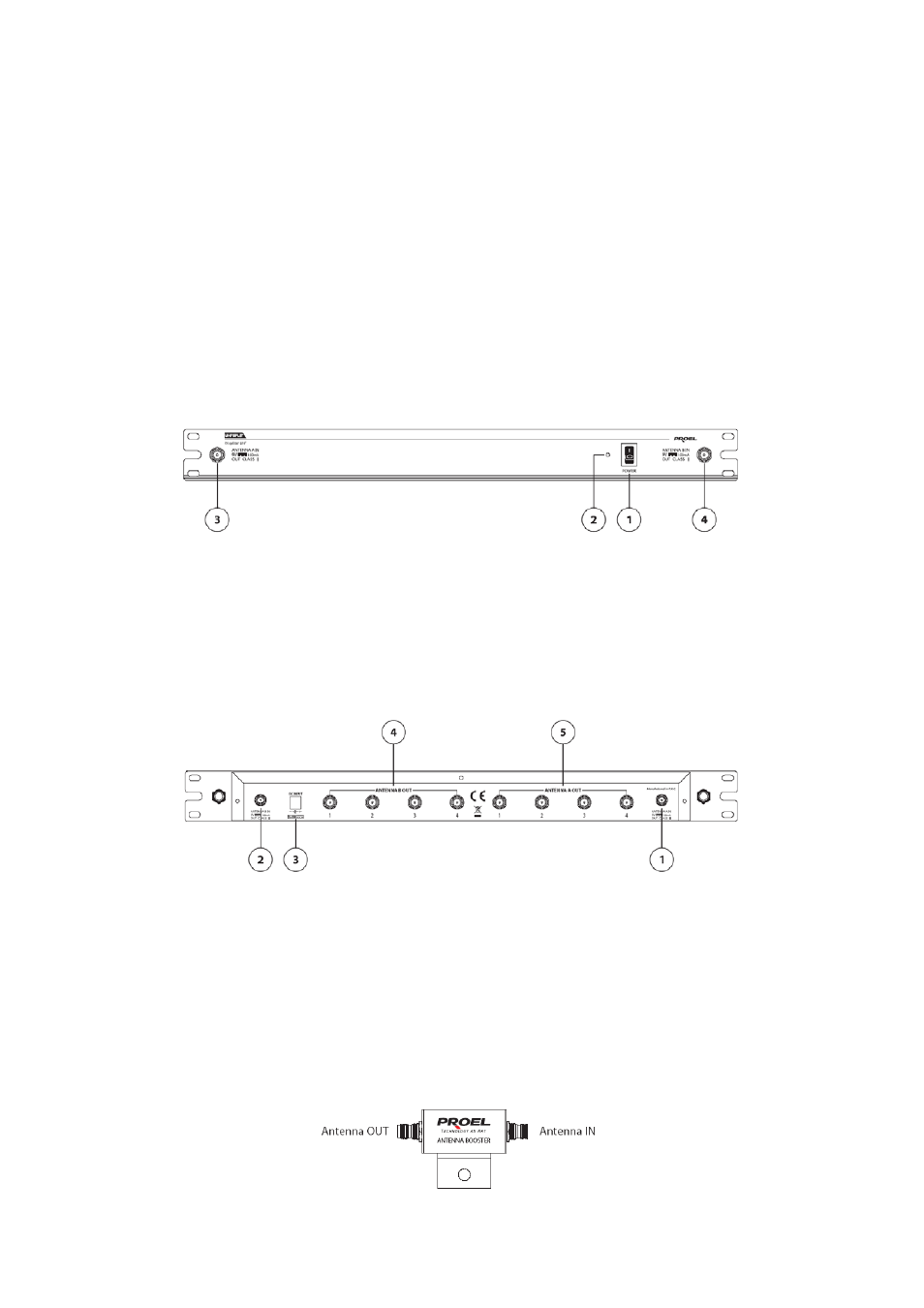

fig.1
1. Power switch
2. Power LED
3. TNC female connector for antenna A
4. TNC female connector for antenna B
Rear Panel:
fig. 2
1. Antenna A input connector.
Insert the supplied cable connected to the A front TNC connector.
2. Antenna B input connector.
Insert the supplied cable connected to the B front TNC connector.
3. Mains
socket.
4. TNC female output connectors. They distribute the signal received to the antenna B input sockets of the
receivers.
5. TNC female output connectors. They distribute the signal received to the antenna A input sockets of the
receivers.
fig. 3
