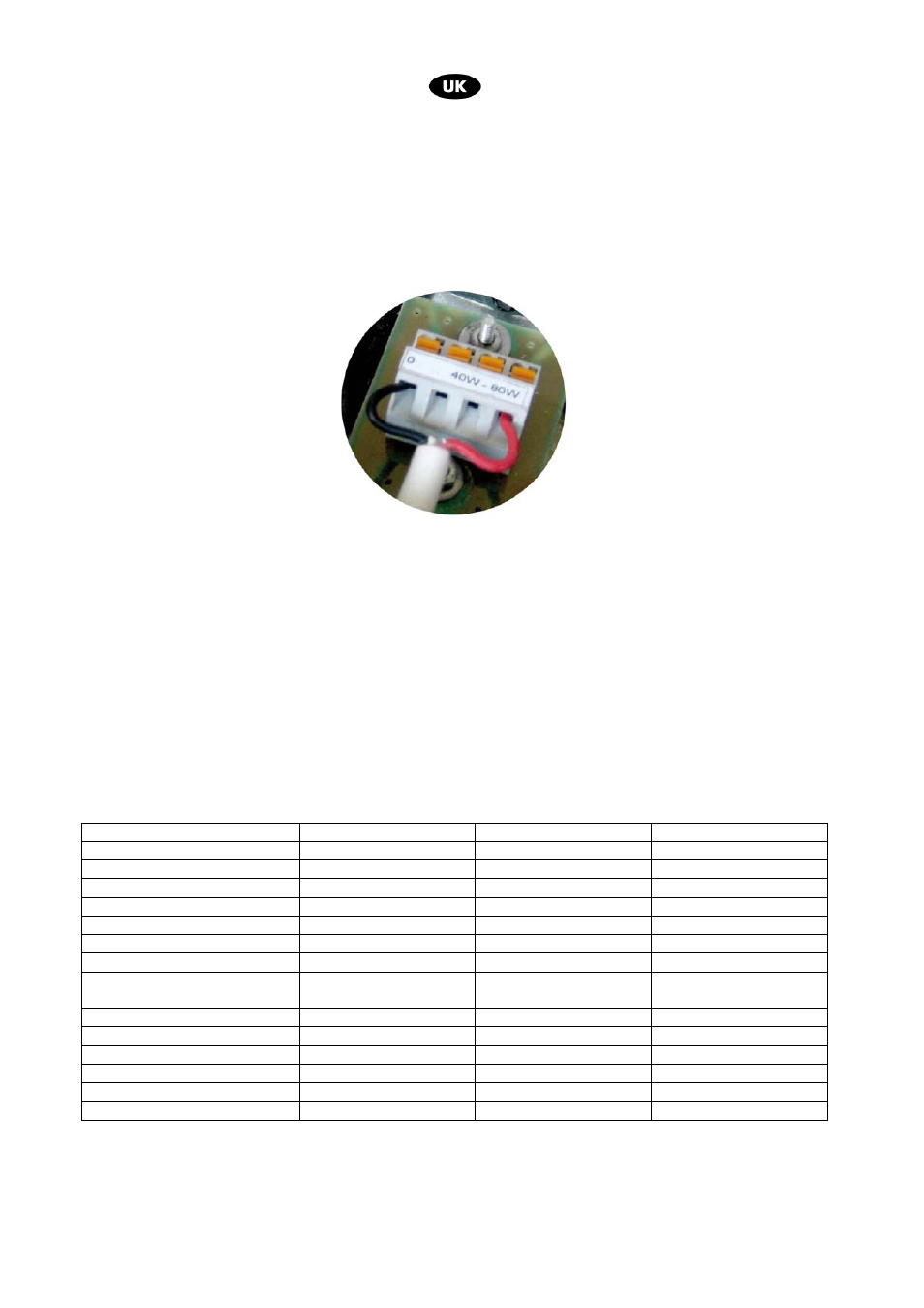

3) connect the cables to the terminal board, as in the example fig. 3): connect the negative to the 0 (zero)
and the positive to the desired output:
7,5W, 15W, 30W nel modello CO30S5;
15W, 30W, 60W nel modello CO60S10;
60W, 120W nel modello CO120S15.
fig.3
Note:
In order to obtain the maximum sound effect, it is necessary to fix the speaker’s base 1.5 m above the ground
if there is a sitting audience. In case of a standing audience, the base should be fixed 1.7 m above the
ground.
4. TECHNICAL SPECIFICATIONS
Model:
CO30S5 CO60S10
CO120S15
Type:
Column Speaker
Column Speaker
Column Speaker
Speaker/s
5 x 3” ¼
10 x 3” ¼
15 x 3” ¼
RMS power
7.5/15/30 W
15/30/60 W
60/120 W
Constant voltage binding:
100V 100V 100V
Frequency response:
200Hz -19KHz (-10dB)
180Hz -18KHz (-10dB)
170Hz -17KHz (-10dB)
SPL (1W/m):
93 dB
93 dB
94 dB
SPL MAX (Pmax @ 1m):
108 dB
111 dB
115 dB
Coverage Angle
1KHz/4KHz (-6dB):
V:70º/20°
H:160º/120°
V:40º/20°
H:160º/120°
V:30º/20°
H:160º/120°
Construction materials:
Alluminium Alluminium Alluminium
Colour:
White White White
Dimensions (W x H x D):
91 x 544 x 88mm
91 x 941 x 88mm
91 x 1339 x 88mm
Weight:
3.5Kg (7.716 lb)
6.2 kg (13.668 lb)
8.9 kg (19.621 lb)
Fixing system:
Bracket Bracket Bracket
Protection rating
-
-
-
