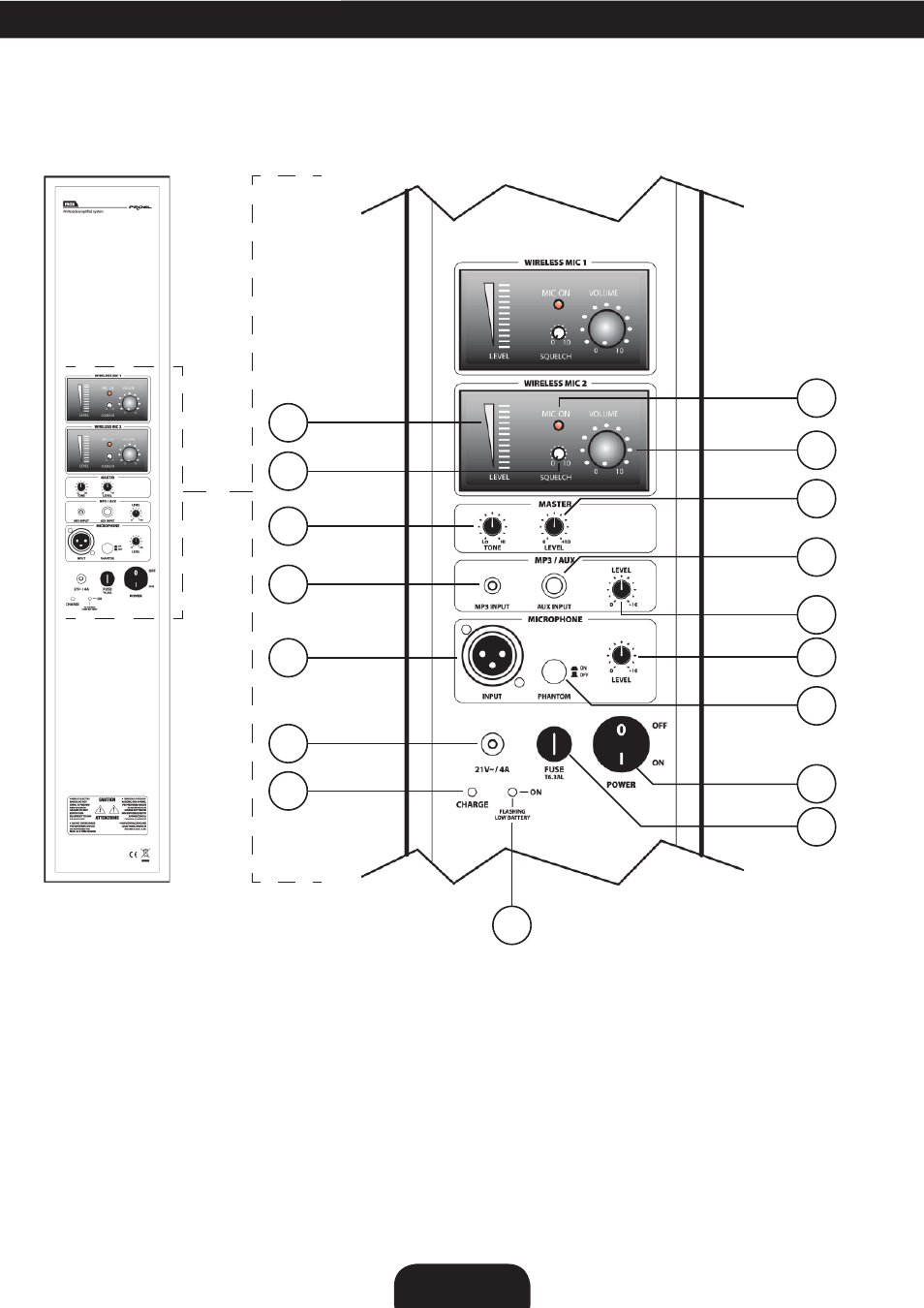

Front panel
Main volume control 1.
Tone control 2.
AUX level control and signal to be reproduced 3.
control
RCA input for AUX signal
4.
3.5 jack input for MP3 signal 5.
ON/OFF key to enable/disable phantom power on 6.
microphone inputs
Level control for microphone input
7.
Balanced XLR microphone input 8.
ON/OFF key to power and un-power the unit 9.
Protection fuse 10.
Plug for external power supply/battery re-charger 11.
purposes
Led indicator ON/OFF status and battery auto-
12.
nomy level
Led indicator to monitor battery level charge
13.
Wireless microphone level control 14.
ON wireless microphone led indicator 15.
Squelch level control 16.
Wireless microphone signal level Led indicator 17.
