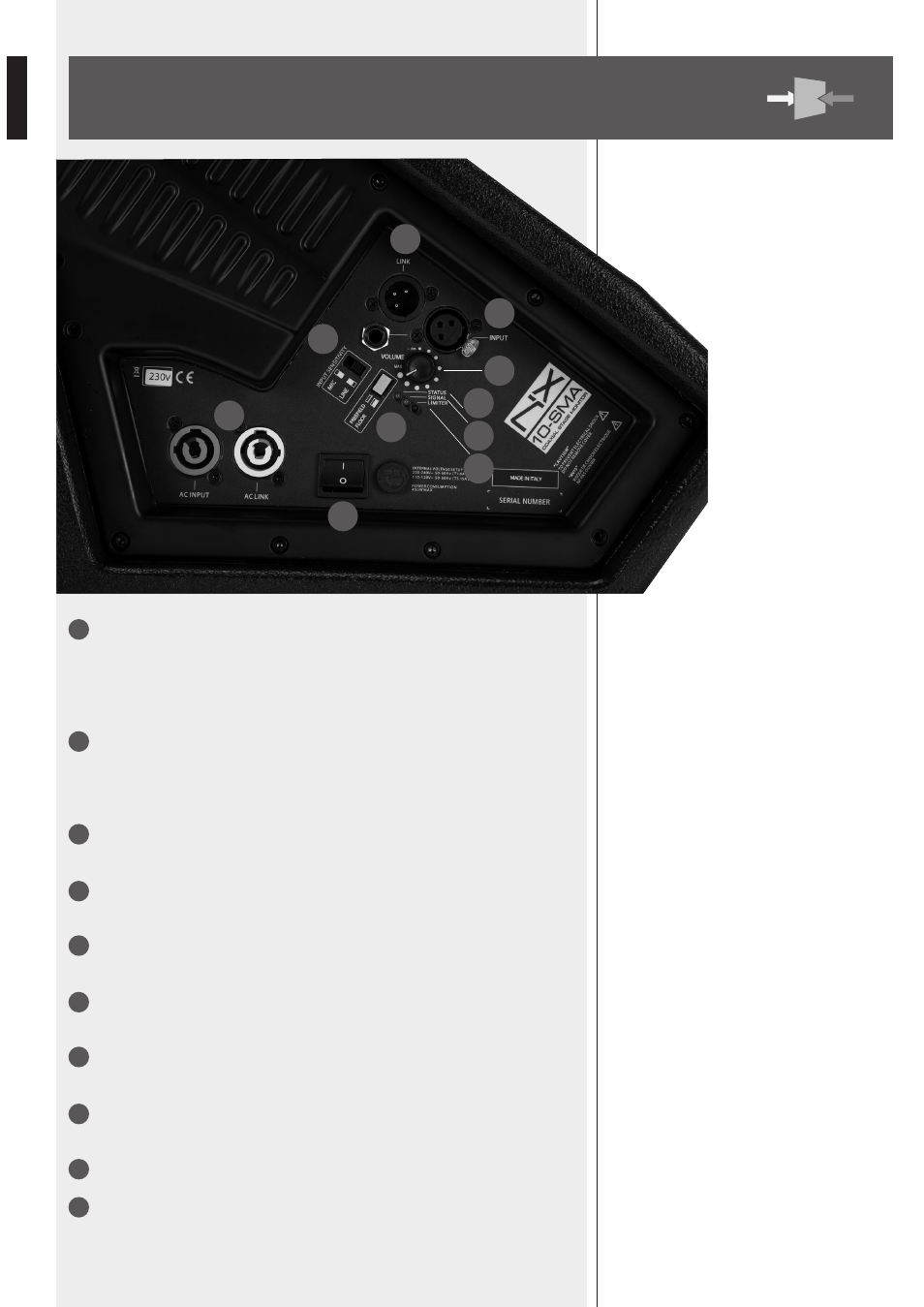

JACK/FEMALE XLR INPUTS (BAL/UNBAL). The system accepts jack or XLR input
connectors.These balanced inputs can be used to connect balanced or unbalanced
microphones or audio sources at line level.
The balanced connector is connected in parallel and can be used to send the audio
signal to other amplified speakers, recorders or supplementary amplifiers.
LIMITER LED. The amplifier has a built in limiter circuit to prevent clipping of the
amplifiers or overdriving the transducers. When the soft clipping circuit is active the LED
blinks orange. It is okay if the limit LED blinks occasionally. If the LED blinks frequently or
lights continuously, turn down the signal level.
SIgNAL LED. The signal indicator lights green if there is signal present on the main
XLR input.
POWER STATUS LED. This green led is ON when the speaker is connected to the main
power supply and the ON/OFF is in ON position.
MALE XLR SIgNAL OUTPUT. The output XLR connector provides a loop through for
speakers daisy chaining.
VOLUME CONTROL. Adjust the amplifier volume. This control does not affect the
“Link” - “Input - Link” output level.
FREEFIELD/FLOOR SWITCH. Set a specific equalisation for stage monitor position or in
case of pole mount or free field application.
INPUT SENSITIVITY SWITCH. Position the switch in LINE to use a line level source (0
dB) or MIC to use a microphone source.
NEUTRIK POWERCON AC IN-OUT SOCKET. IN-OUT AC Powercon Sockets.
POWER MAIN SWITCH. The power switch turns the AC power ON and OFF.
