9
OPERATING MODE
Manual mode Manual mode Manual mode Manual mode
- Make sure the power supply is sufficient for the power consumption of
the
- lamps before power up. Otherwise the power lines and the projectors
might be damaged.
- There are two knobs on upside of unit to adjust the speed and the
intensity of flashing.
- Rotate the knobs one by one to set the desired effect.
- On the backside, there are the analogic input and the analogic output.
- Is it possible to connect a remote controller (PROEL Code: PLCD1 or
PLSQST) to the Analogic Input plug.
- The unit can be connected in series with other projectors by means of
cable with Jack connectors.
DMX DMX DMX DMX Mode Mode Mode Mode ((((only for only for only for only for PLSTHDX) PLSTHDX) PLSTHDX) PLSTHDX)
- On the backside of the projector there is a group in switches.
- To activate the DMX mode, turn the switch no.10 on.
- Use the switches 1-9 to set the desired DMX address.
- Connect a common DMX controller to the projector by using the XLR
Input socket positioned on the rear.

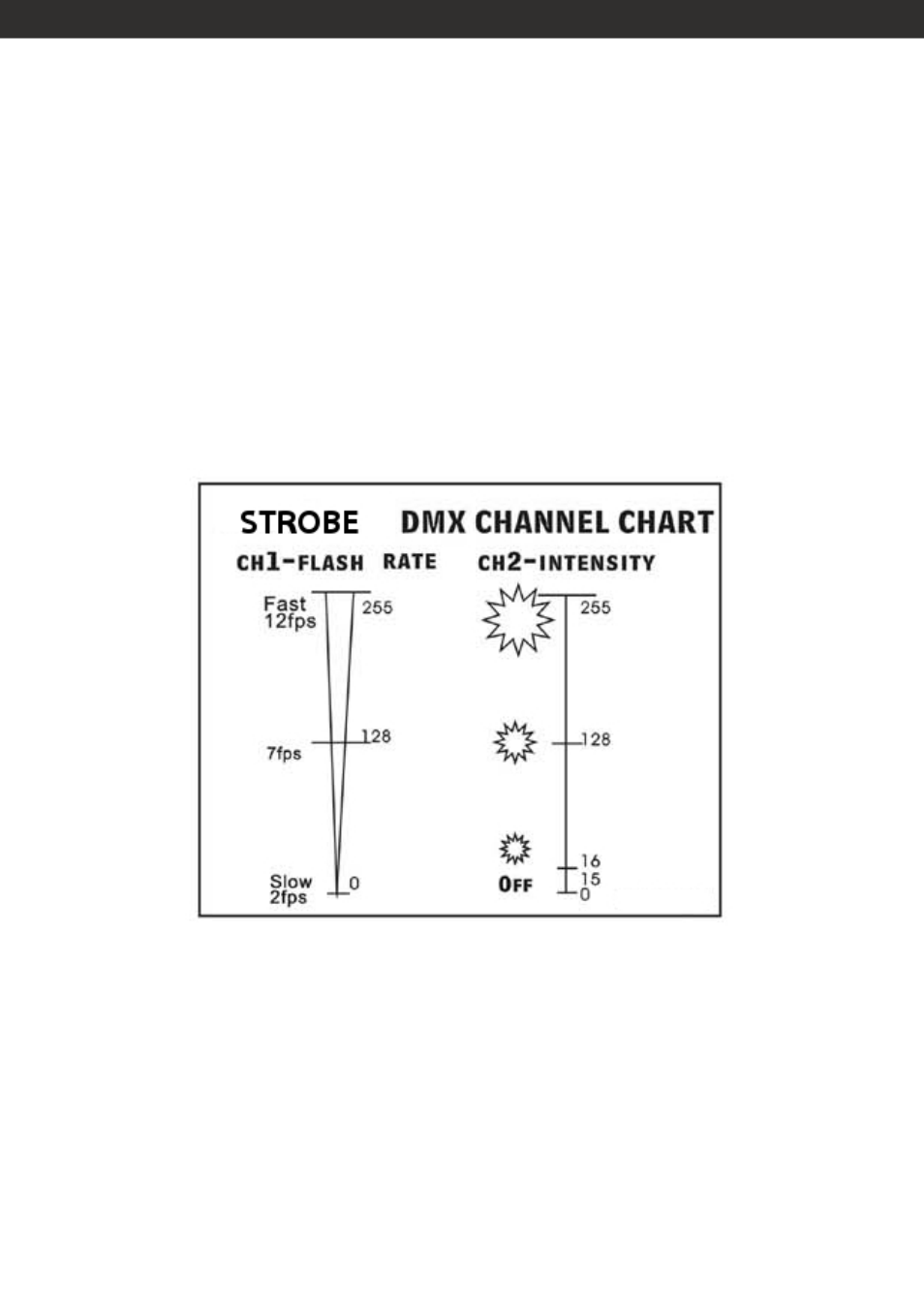

- The PLST15HDX has two DMX channels to adjust the speed and the
intensity and of flashing.
