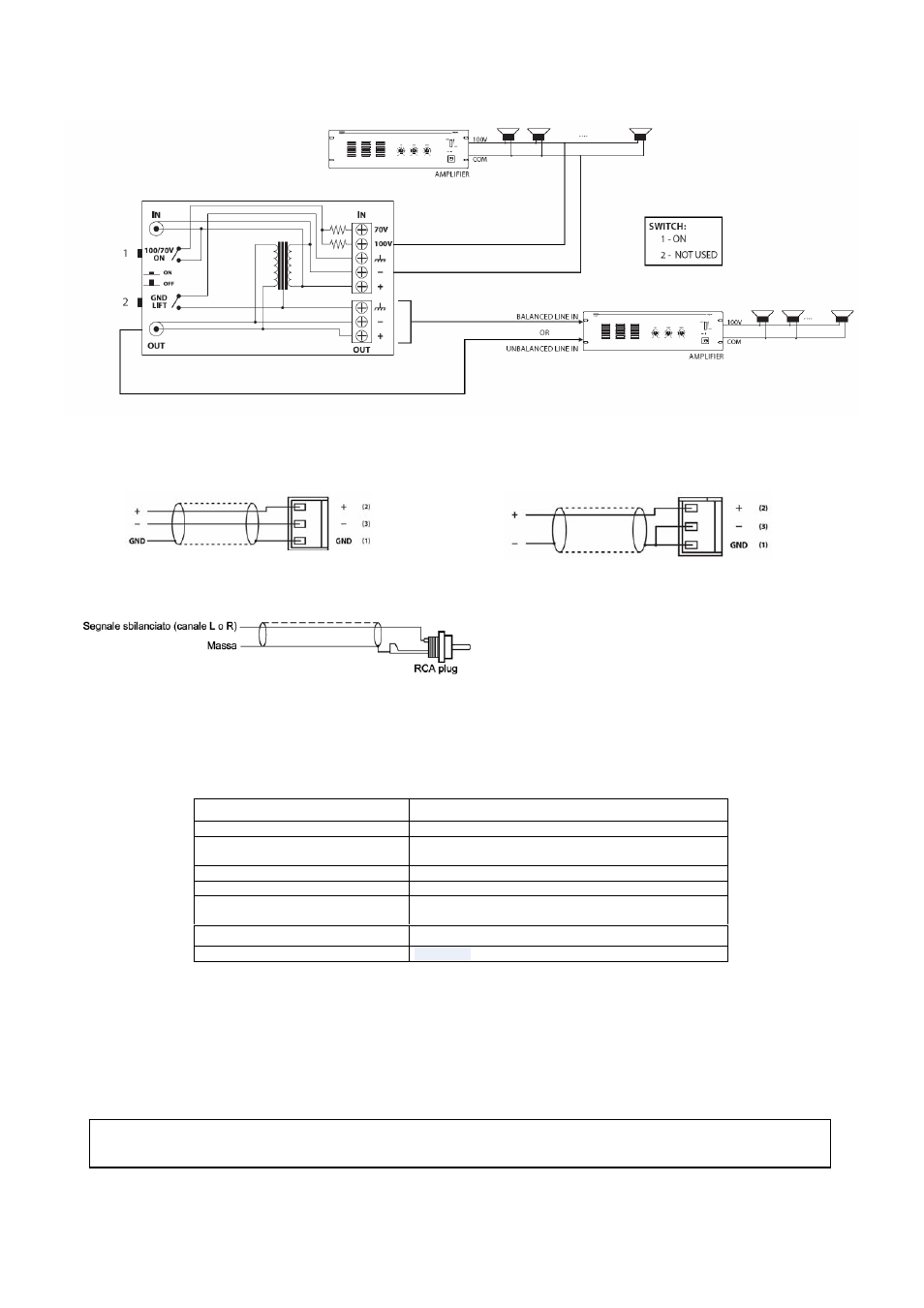

Configuration D – Driving by remote Public Address 100V Amplifier to 100V amplifier with LINEA/AUX BALANCED
OR UNBALANCED inputs.
4. CONNECTIONS
EUROBLOC balanced connection EUROBLOC unbalanced connection
RCA unbalanced connection
5. TECHNICAL CHARACTERISTICS
The product is in compliance with Directive 89/336/EEC (Electromagnetic Compatibility)
and following amendments 92/31/EEC and 93/68/EEC- as the following standards:
EN 50082-1:1997, EN 55013:1990, EN 55020:1994
it is also in compliance with Directive 73/23/EEC (Low Voltage)
and following amendments 93/68/EEC, as the following standard:
EN 60065:1998
MODEL MATCHBOX
Inputs
Line level Balanced Euroblock 0dB
Unbalanced RCA Cinch 0dB
High level PA amplifier Euroblock 100V – 70V
Outputs
Line level Balanced Euroblock 0dB
Unbalanced RCA Cinch 0dB
Override command 24VDC – 100V
Funzione GND-LIFT selectable
Proel SpA company pursues a policy of continuous research and development. Proel SpA company reserves the right to modify
product circuitry and appearance at any moment, without prior notice. REV: 00 / 49-09
