4

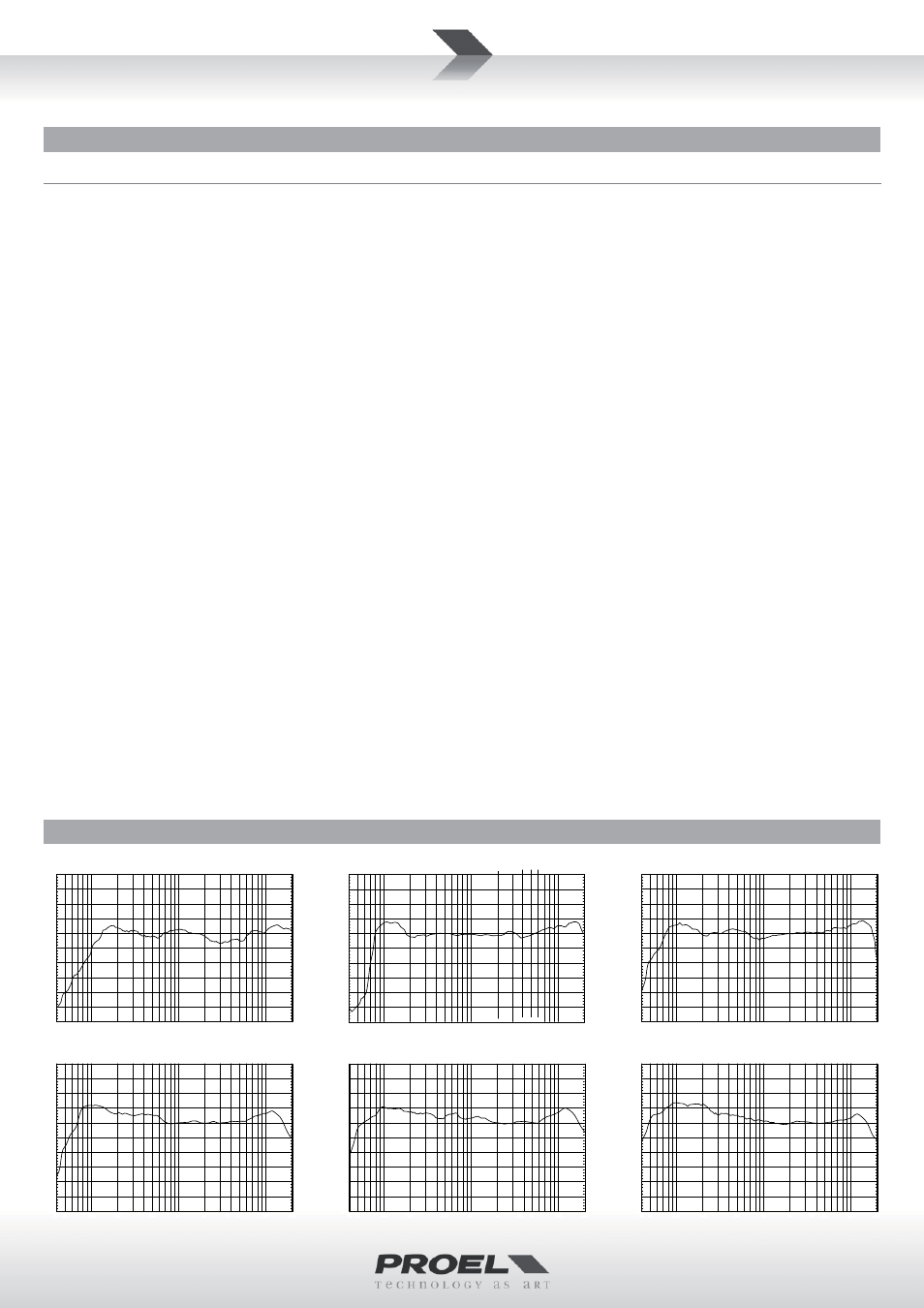

FREQUENCY RESPONSE RISPOSTA IN FREQUENZA
LT6A
MODEL LT6A LT8A LT10A LT12A LT15A LT215A
System type 2-way vented enclosure 2-way vented enclosure 2-way vented enclosure 2-way vented enclosure 2-way vented enclosure 2-way vented enclosure
High Frequency Device 1’’ neodymium tweeter 1’’ compression driver
1" VC 1’’ compression driver
1.35" VC 1’’ compression driver
1.35" VC 1’’ compression driver
1.35" VC 1’’ compression driver
1.35" VC
Low Frequency Device 6.5” woofer with 1" VC 8” woofer with 1.5" VC 10” woofer with 2" VC 12” woofer with 2.5" VC 15” woofer with 2.5" VC 2x 15” woofer with 2.5"
VC
Angular Coverage 60° H x 40° V 60° H x 40° V 90° H x 60° V 90° H x 60° V 90° H x 60° V 90° H x 60° V
Total peak power 150 W 400 W 600 W 600 W 600 W 1200 W
HF Amplifi er Power
75 W Class AB
50 W Class D 50 W Class AB 50 W Class AB 50 W Class AB 100 W Class AB
LF Amplifi er Power 150 W Class D 250 W Class D 250 W Class D 250 W Class D 500 W Class D
Power Supply type LINEAR SMPS SMPS SMPS SMPS SMPS
Frequency Response 75 Hz - 20 kHz 70 Hz - 20 kHz 60 Hz - 20 kHz 50 Hz - 20 kHz 45 Hz - 20 kHz 45 Hz - 20 kHz
Processing Analog Analog Analog Analog Analog Analog
Max SPL at 1mt (peak) 110 dBspl 121 dBspl 123 dBspl 124 dBspl 126 dBspl 132 dBspl
Crossover Frequency 2400 Hz 2200 Hz 2000 Hz 2000 Hz 2000 Hz 2000 Hz
Input Impedance 30 kohm balanced
15 kohm unbalanced 3 0 ko h m b a l a n c e d
15 kohm unbalanced 3 0 ko h m b a l a n c e d
15 kohm unbalanced 30 kohm balanced
15 kohm unbalanced 3 0 ko h m b a l a n c e d
15 kohm unbalanced 3 0 ko h m b a l a n c e d
15 kohm unbalanced
Input Sensi vity LINE: 0/-10 dBu / MIC:
-20 dBu LINE: +4 dBu / MIC: -20
dBu LINE: +4 dBu / MIC: -20
dBu LINE: +4 dBu / MIC: -20
dBu LINE: +4 dBu / MIC: -20
dBu LINE: +4 dBu / MIC: -20
dBu
Controls MIC/LINE, LEVEL MIC/LINE, LEVEL, LOW,
HIGH, GND.
MIC/LINE, LEVEL, LOW,
HIGH, GND.
MIC/LINE, LEVEL, LOW,
HIGH, GND.
MIC/LINE, LEVEL, LOW,
HIGH, GND.
MIC/LINE, LEVEL, LOW,
HIGH, GND.
Connectors M I C / L I N E : C o m b o
X L R - F / J A C K ,
LINE: RCA, LINK: XLR-M
M I C / L I N E : C o m b o
X L R - F / J A C K
LINK: XLR-M
M I C / L I N E : C o m b o
X L R - F / J A C K
LINK: XLR-M
M I C / L I N E : C o m b o
X L R - F / J A C K
LINK: XLR-M
M I C / L I N E : C o m b o
X L R - F / J A C K
LINK: XLR-M
M I C / L I N E : C o m b o
X L R - F / J A C K
LINK: XLR-M
Power Supply 230 V~ or 120 V~ - 50/60
Hz
230 V~ or 120 V~ - 50/60
Hz
230 V~ or 120 V~ - 50/60
Hz
230 V~ or 120 V~ - 50/60
Hz
230 V~ or 120 V~ - 50/60
Hz
230 V~ or 120 V~ - 50/60
Hz
Rated Consump on 100 W 150 W 300 W 300 W 300 W 700 W
Construc on Plywood Plywood Plywood Plywood Plywood Plywood
Cabinet Colour Black Black Black Black Black Black
Flying System 1 x M4 top / 2 x M4
bo om
4 x M8 top/bo om 4 x M10 top/bo om 4 x M10 top/bo om 4 x M10 top/bo om 4 x M10 top/bo om
Handles - 1 x rear 1 x rear 2 x sides 2 x sides 2 x sides, 1 x top
Moun ng Pole 1 x bo om 1 x bo om, dual angle 1 x bo om, dual angle 1 x bo om, dual angle 1 x bo om, dual angle 1 x bo om
Weight 5.9 kg (13 lb) 8.5 kg (18.7 lb) 12.5 kg (27.6 lb) 16.5 kg (36.4 lb) 21 kg (46.3 lb) 34 kg (74.9 lb)
Dimensions (W x H x D) 204 x 295 x 223 mm 220 x 442 x 260 mm 340 x 515 x 310 mm 380 x 595 x 360 mm 448 x 670 x 410 mm 448 x 1060 x 450 mm
TECHNICAL SPECIFICATIONS SPECIFICHE TECNICHE
10k 5k 2k 1k 500 200 100 50 40 20k Hz
120.0
dBSPL
110.0
100.0
90.0
80.0
70.0
10k 5k 2k 1k 500 200 100 50 40 20k Hz
120.0
dBSPL
110.0
100.0
90.0
80.0
70.0
10k 5k 2k 1k 500 200 100 50 40 20k Hz
120.0
dBSPL
110.0
100.0
90.0
80.0
70.0
10k 5k 2k 1k 500 200 100 50 40 20k Hz
120.0
dBSPL
110.0
100.0
90.0
80.0
70.0
10k 5k 2k 1k 500 200 100 50 40 20k Hz
120.0
dBSPL
110.0
100.0
90.0
80.0
70.0
10k 5k 2k 1k 500 200 100 50 40 20k Hz
120.0
dBSPL
110.0
100.0
90.0
80.0
70.0
LT12A
LT8A
LT15A
LT10A
LT215A
