12
37. LEFT INSERT
This is where you connect serial effects, usually
compressors or equalizers, before the MAIN MIX LEVEL
control. Specialty “Y” cables, developed just for these
jacks, are widely available on shops.
38. RIGHT INSERT
Same as above for the right channel output.
39. SUB OUT
This is a jack connector sending the low frequencies of the MAIN MIX
signal to an active sub-woofer. The jack output is wired as follows:
Tip = + positive or "hot"
Sleeve = shield or ground

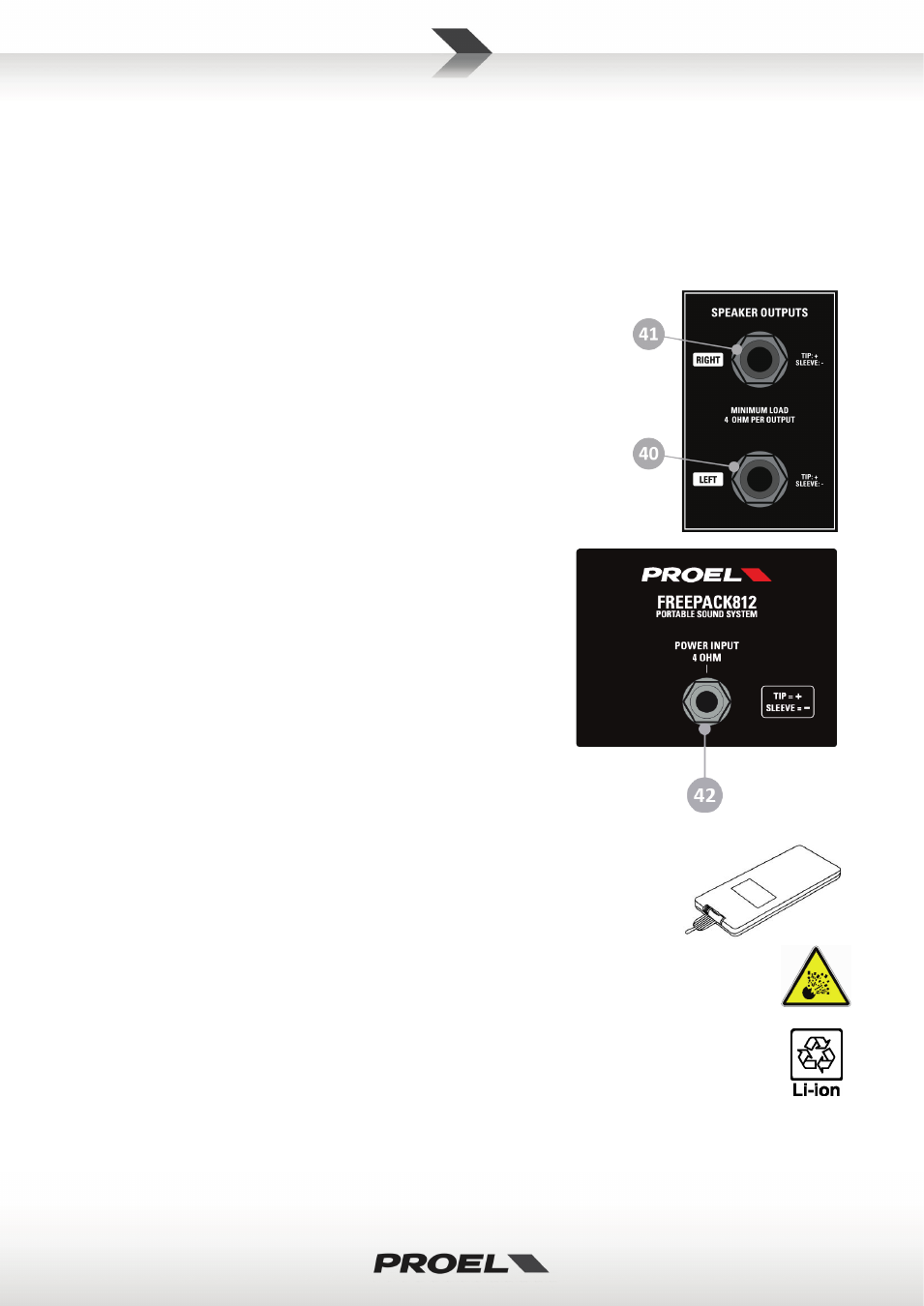

40. LEFT SPEAKER OUTPUT
This is jack connector sending the amplified MAIN MIX LEFT signal to
the speaker. Use always power cables to connect the speaker and note
that the minimum acceptable impedance for each output is 4 ohm. The
JACK power output is wired as follows:
Tip = + positive speaker terminal
Sleeve = - negative speaker terminal
41. RIGHT SPEAKER OUTPUT
Same as previous for the amplified MAIN MIX RIGHT signal.
42. SPEAKER INPUT (on each rear speaker panel)
This is the jack connector that accepts the amplified signal from
the mixer unit. Use always the supplied power cable to connect
the speaker.
The JACK power input is wired as follows:
Tip = + positive speaker terminal
Sleeve = - negative speaker terminal
REMOTE CONTROL BATTERY REPLACEMENT
To use the remote control for the first time you need to remove the protective
sticker as shown in the figure. When the battery of the remote control is discharged,
you need to replace it with a new one of the same type. Instructions about how to
open the battery compartment are printed on the remote control body.
BE CAREFUL: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH SAME TYPE: CR 2025 LITHIUM MANGANESE DIOXIDE BATTERY.
The battery contains Perchlorate Material – special handling may apply, it should not be disposed
with other household wastes at the end of its working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, please separate this from other
types of wastes and recycle it.
