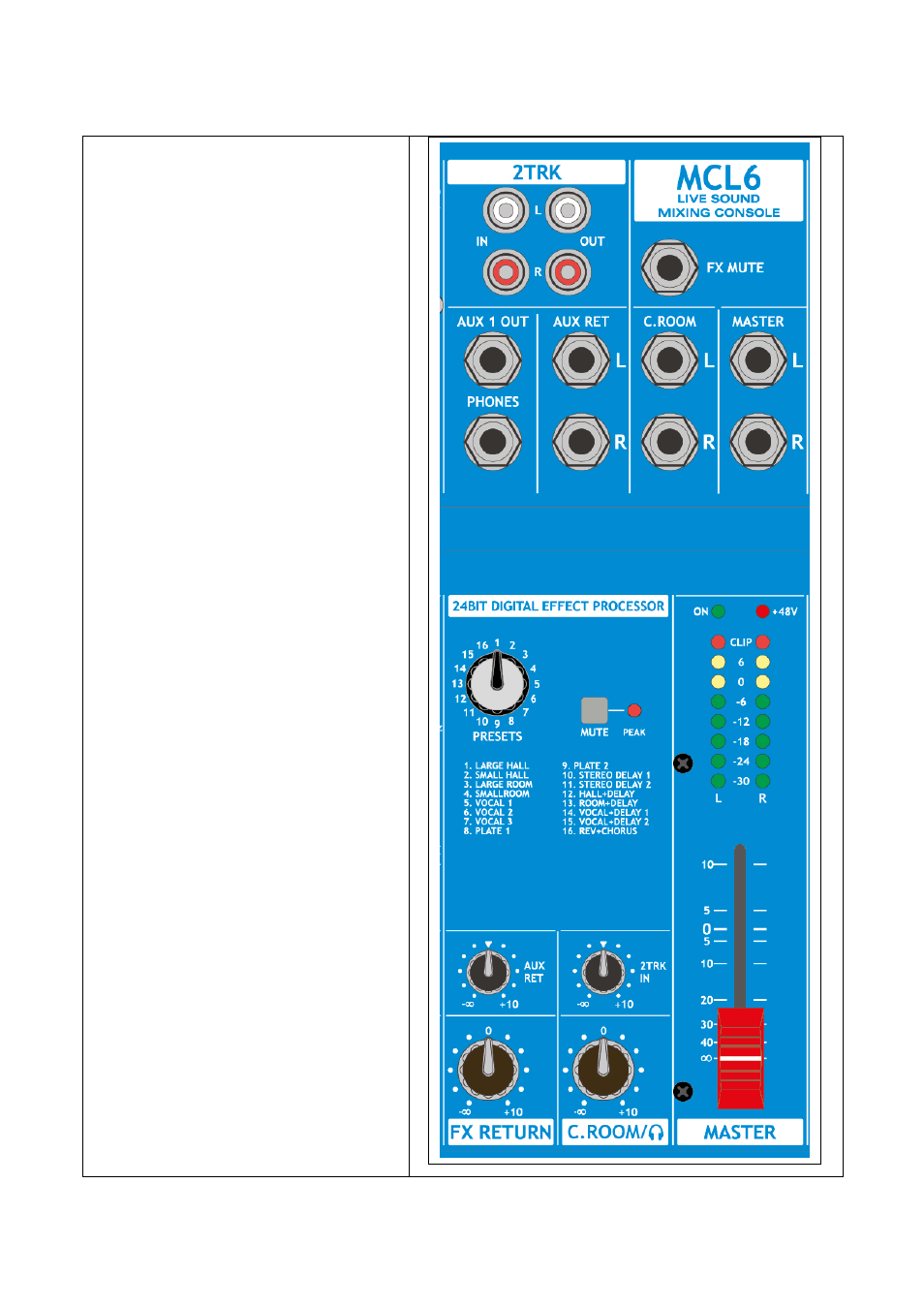

Master section
Master section connections
Connessioni sezione Master
2TRK IN (play) – RCA pair
2TRK OUT (rec) - RCA pair
2TRK IN (riproduzione) – coppia di RCA
2TRK OUT (registrazione) – coppia di RCA
FX MUTE FOOTSWITCH – ¼“ Jack
Interruttore a Pedale, Jack 6,35mm
AUX 1 OUT (send) – ¼” Jack
Mandata Ausiliaria AUX 1 – Jack 6,35mm
PHONES – ¼” Stereo Jack
Uscita Cuffie, Jack Stereo
AUX RETURN L-R - 2 x ¼” Jack
RItorno effetti, 2 x Jack 6,35mm
CONTROL ROOM L-R - 2 x ¼” Jack
Uscita Monitor Studio, 2 x Jack 6,35mm
MASTER OUT L-R - 2 x ¼” Jack
Uscita Master, 2 x Jack 6,35mm
24BIT DIGITAL EFFECT PROCESSOR
16-PRESET ROTARY SELECTOR
SELETTORE ROTATIVO 16-PRESET
EFX MUTE SWITCH
Interruttore EFX MUTE
EFX MUTE LED
Indicatore LED EFX MUTE
LED INDICATORS
POWER ON LED (GREEN)
Indicatore POWER ON LED (VERDE)
PHANTOM POWER ON LED (RED)
Indicatore PHANTOM POWER ON LED (ROSSO)
LED LEVEL BARGRAPH
8-SEGMENT STEREO BARGRAPH
INDICATORE STEREO A 8 LED
FX RETURNS section
AUX1 RETURN to Master knob
FX RETURN to Master knob
Manopola AUX1 RETURN to Master
Manopola FX RETURN to Master
Master & Indicators
2TRACK return section
2TRK to Master knob
CONTROL ROOM /HEADPHONES knob
Manopola 2TRK to Master
Manopola CONTROL ROOM /PHONES
MASTER - fader
